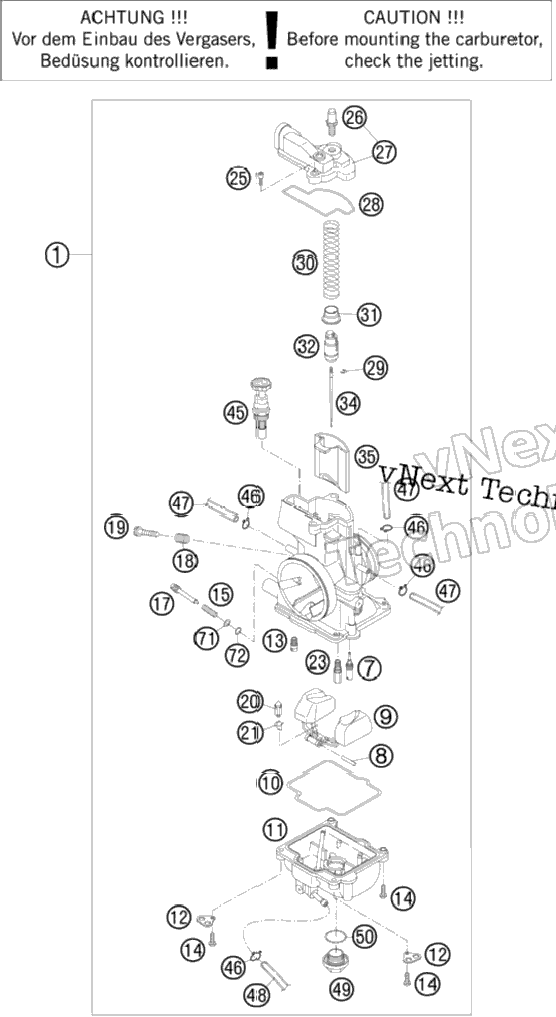

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 51531001444 | CARB. KEIH. PWK 38S AG BC0 11 11 | 1 |
| 1 | 54531607038 | IDLE JET 38 KEIHIN (As required) | 1 |
| 1 | 54531607040 | IDLE JET 40 KEIHIN (As required) | 1 |
| 1 | 54531607042 | IDLE JET 42 KEIHIN (As required) | 1 |
| 1 | 54531607045 | IDLE JET 45 KEIHIN (As required) | 1 |
| 1 | 54531607048 | IDLE JET 48 KEIHIN (As required) | 1 |
| 1 | 54531607050 | IDLE JET 50 KEIHIN (As required) | 1 |
| 1 | 54531607052 | IDLE JET 52 KEIHIN (As required) | 1 |
| 1 | 57331008000 | ARM PIN FLOAT | 1 |
| 1 | 57331009000 | FLOAT CPL. | 1 |
| 1 | 54831010000 | GASKET FLOAT CHAMBER | 1 |
| 1 | 54831011000 | FLOAT CHAMBER PWK38-S AG | 1 |
| 2 | 54531612100 | RETAINING PLATE FOR BLEEDER | 2 |
| 1 | 54831051085 | STARTER JET 85 KEIHIN | 1 |
| 4 | 0016040163 | HH COLLAR SCREW M 4X16 WS=6 WS=6 | 4 |
| 1 | 54531615000 | SPRING FOR ADJUSTMENT SCREW | 1 |
| 1 | 54831017000 | STOP SCREW CPL. | 1 |
| 1 | 54631118000 | SPRING | 1 |
| 1 | 54631219100 | ADJUSTMENT SCREW M 5 | 1 |
| 1 | 54631220000 | FLOAT NEEDLE | 1 |
| 1 | 54531621000 | CLAMP | 1 |
| 1 | 54531623170 | MAIN JET 170 KEIHIN (As required) | 1 |
| 1 | 54531623172 | MAIN JET 172 KEIHIN (As required) | 1 |
| 1 | 54531623175 | MAIN JET 175 KEIHIN (As required) | 1 |
| 1 | 54531623178 | MAIN JET 178 KEIHIN (As required) | 1 |
| 1 | 54531623180 | MAIN JET 180 KEIHIN (As required) | 1 |
| 1 | 54531623182 | MAIN JET 182 KEIHIN (As required) | 1 |
| 1 | 54531623185 | MAIN JET 185 KEIHIN (As required) | 1 |
| 1 | 54531623188 | MAIN JET 188 KEIHIN (As required) | 1 |
| 1 | 54531623190 | MAIN JET 190 KEIHIN (As required) | 1 |
| 1 | 54531623192 | MAIN JET 192 KEIHIN (As required) | 1 |
| 1 | 54531623195 | MAIN JET 195 KEIHIN (As required) | 1 |
| 1 | 54531623198 | MAIN JET 198 KEIHIN (As required) | 1 |
| 1 | 54531623200 | MAIN JET 200 KEIHIN (As required) | 1 |
| 1 | 54531623202 | MAIN JET GR. 202 KEIHIN KEIHIN (As required) | 1 |
| 1 | 54531623205 | MAIN JET 205 KEIHIN (As required) | 1 |
| 1 | 54531623208 | MAIN JET 208 KEIHIN (As required) | 1 |
| 1 | 54531623210 | MAIN JET 210 KEIHIN (As required) | 1 |
| 1 | 54531623212 | MAIN JET 212 KEIHIN (As required) | 1 |
| 1 | 54531623215 | MAIN JET 215 KEIHIN | 1 |
| 2 | 54831025000 | SPECIAL-AH-SCREW M 4X12 | 2 |
| 1 | 54831029000 | THROTTLE CALBE HOLDER M6X0,75 | 1 |
| 1 | 50331027000 | CARBURETOR COVER PWK 38S AG 09 | 1 |
| 1 | 54831028000 | GASKET FOR CARBURETOR COVER | 1 |
| 1 | 54531629000 | CLIP FOR JET NEEDLE | 1 |
| 1 | 54831030000 | SLIDING SPRING | 1 |
| 1 | 54631231000 | SPRING CAP | 1 |
| 1 | 54631232000 | NIPPLE | 1 |
| 1 | 54531636006 | JET NEEDLE NOZ F KEIHIN (As required) | 1 |
| 1 | 54531636007 | JET NEEDLE NOZ G KEIHIN (As required) | 1 |
| 1 | 54531636008 | JET NEEDLE NOZ H KEIHIN (As required) | 1 |
| 1 | 54531636009 | JET NEEDLE NOZ I KEIHIN (As required) | 1 |
| 1 | 54531636010 | JET NEEDLE NOZ J KEIHIN (As required) | 1 |
| 1 | 54531636011 | JET NEEDLE NOZ K KEIHIN (As required) | 1 |
| 1 | 54631035000 | THROTTLE VALVE 7 FOR 38 PJ '00 00 (As required) | 1 |
| 1 | 54831035065 | THROTTLE VALVE 6.5 KEIHIN (As required) | 1 |
| 1 | 54631245000 | STARTER PISTON CPL. | 1 |
| 5 | 54531696000 | CLAMP 6 MM | 5 |
| 1 | 31007007101 | PVC-HOSE 4X6MM (As required) | 1 |
| 1 | 52031137001 | PVC-HOSE 3X5MM (As required) | 1 |
| 1 | 54531699000 | PLUG M 18X1 | 1 |
| 1 | 0770180230 | O-RING 18,00X2,30 NBR 70 | 1 |
| 1 | 54831071000 | WASHER ADJUSTING SCREW | 1 |
| 1 | 54831072000 | O-RING ADJUSTING SCREW | 1 |
