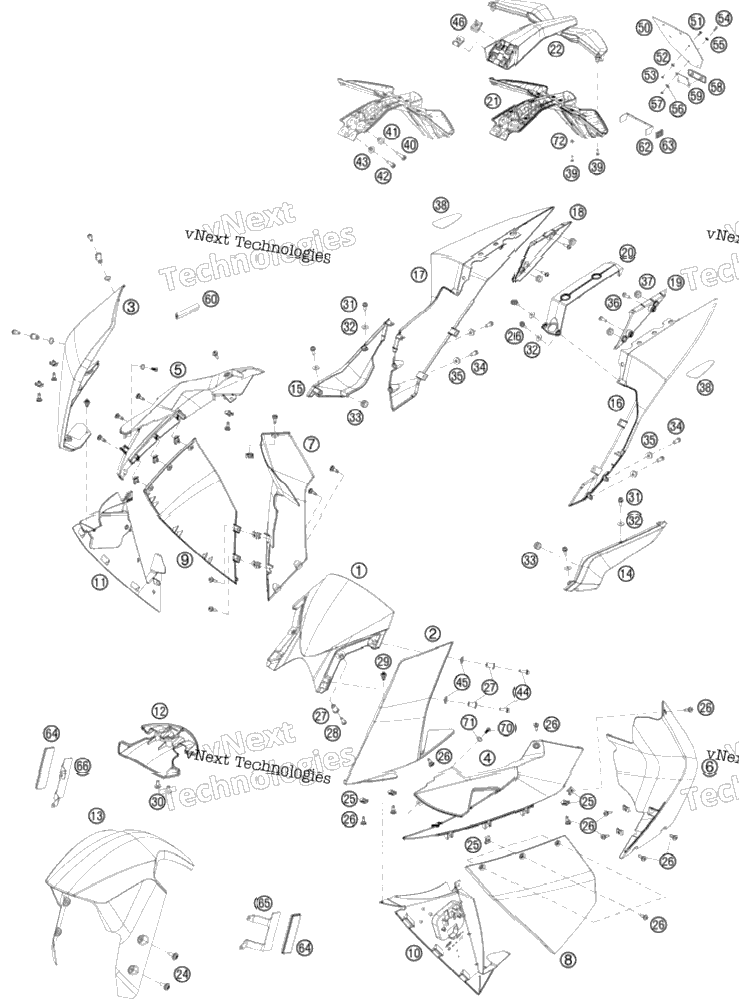

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 69108008000 | FAIRING SCREEN HIGH | 1 |
| 6900800100030A | FR.FAIR.UP.PART L/S BLACK RC8 | ||
| 6900800200030A | FR.FAIR.UP.PART R/S BLACK RC8 | ||
| 6900800300030B | FR.FAIR.LO.PART L/S BLACK RC8 | ||
| 6900800400030B | FR.FAIR.LO.PART R/S BLACK RC8 | ||
| 6900805200020A | EXHAUST SHAFT L/S WHITE BR.RC8 | ||
| 6900805300020A | EXHAUST SHAFT R/S WHITE BR.RC8 | ||
| 6900805000030A | COOLER FAIRING L/S BLACK BR. | ||
| 6900805100030A | COOLER FAIRING R/S BLACK BR. | ||
| 1 | 6900802210033 | FRESH-AIR SHAFT L/S BL. MA. 10 10 | 1 |
| 6900802300033 | FRESH-AIR SHAFT R/SBL. MA.08 08 | ||
| 1 | 6900802110033 | UP. FRESH-AIR SHAFT BLACK MA. | 1 |
| 1 | 6930801000049 | FRONT FENDER CARBON | 1 |
| 6900804300030A | SIDE COVER L/S BL. BR. RC8 | ||
| 6900804400030A | SIDE COVER R/S BL. GL. RC8 | ||
| 6900804100030E | REAR FAIRING L/S BLACK BR. RC8 | ||
| 6900804200030E | REAR FAIRING R/S BL. BR. RC8 | ||
| 1 | 69008039000 | REAR LIGHT ADAPTER R/S | 1 |
| 1 | 69008038000 | REAR LIGHT ADAPTER L/S | 1 |
| 1 | 6900803100033 | UPPER REAR END PANEL | 1 |
| 1 | 69008016100 | NUMBER PLATE LO. PART USA | 1 |
| 69008015100 | LICENSE PLATE BRACKET UP. PART | ||
| 4 | 69014017000 | SPECIAL SCREW M6X18 ISA30 08 08 | 4 |
| 1 | 69008021080 | clip nut M5 (As required) | 1 |
| 1 | 69008021060 | special screw M5x17 (As required) | 1 |
| 6 | 60008008050 | blind plug nut M5 WN16A 03 | 6 |
| 2 | 0025050166 | HH collar screw M5x16 TX30 TX30 | 2 |
| 2 | 76503075000 | SPREAD RIVET CPL. 6,2MM | 2 |
| 2 | 0024060136 | HH collar screw M6x13 TX30 TX30 | 2 |
| 4 | 58605083010 | SCREW TORX M5X10 05 05 | 4 |
| 6 | 75008023000 | WASHER REAR-UT D=14MM | 6 |
| 2 | 31008060000 | rubber grommet D=8mm open | 2 |
| 4 | 0025080206 | HH collar screw M8x20 TX40 | 4 |
| 4 | 6900300405001 | WASHER MOUNT. REAR FAIRING | 4 |
| 4 | 0081050161 | EJOT PT SCREW K50X16 1451 | 4 |
| 4 | 69014078000 | RUBBER SLEEVE 10X14X20 08 08 | 4 |
| 1 | 69007047050 | PASSENGER´S SEAT PLATE KIT | 1 |
| 10 | 0081040161 | SCREW FOR PLASTIC K40X16 T20 T20 | 10 |
| 2 | 0025060256 | HH collar screw M6x25 TX30 TX30 | 2 |
| 2 | 69007028000 | COLLAR BUSH. 6,2X10X21X14MM 08 08 | 2 |
| 2 | 0025060206 | HH collar screw M6x20 TX30 TX30 | 2 |
| 2 | 69008020000 | BUSHING LICENSE PLATE BRACKET | 2 |
| 4 | 0025050206 | HH collar screw M5x20 TX30 TX30 | 4 |
| 69008008050 | PLAIN WASHER PA 9,5X14X2 | ||
| 4 | 54603048100 | clip nut M6 | 4 |
| 1 | 60012081200 | license plate mouning plate 06 | 1 |
| 4 | 0024060156 | HH collar screw M6x15 TX30 TX30 | 4 |
| 4 | 0021060003 | WASHER DIN9021-A 6,4 | 4 |
| 4 | 0985060003 | SELF LOCK. NUT DIN0985-M 6 | 4 |
| 2 | 0966050163 | OVAL HEAD SCREW DIN0966-M 5X16 | 2 |
| 2 | 40006006000 | WASHER 6MM | 2 |
| 2 | 0125050003 | WASHER DIN0125-A 5,3 | 2 |
| 2 | 0985050003 | SELF LOCKING NUT DIN0985-M 5 | 2 |
| 1 | 58412080000 | REFLECTOR RED 98 | 1 |
| 1 | 58412080050 | BRACKET FOR REFLECTOR | 1 |
| 1 | 60114010070 | EDGE PROTECTOR 14X9,5X66 MM 06 06 | 1 |
| 1 | 62512081000 | BRACKET SIDE REFLECTOR 06 06 | 1 |
| 2 | 16512180100 | SIDE REFLECTOR RED REAR | 2 |
| 2 | 60012080000 | SIDE REFLECTOR YELLOW 03 03 | 2 |
| 1 | 69012080050 | BRACKET F. SIDE REFLECTOR L/S | 1 |
| 1 | 69012080060 | BRACKET F. SIDE REFLECTOR R/S | 1 |
| 2 | 0081060121 | EJOT PT SCREW K60X12 1451 | 2 |
| 2 | 69008003050 | WASHER PA 8,3X12X5 | 2 |
| 8 | 0021040003 | WASHER DIN9021-A 4,3 | 8 |
