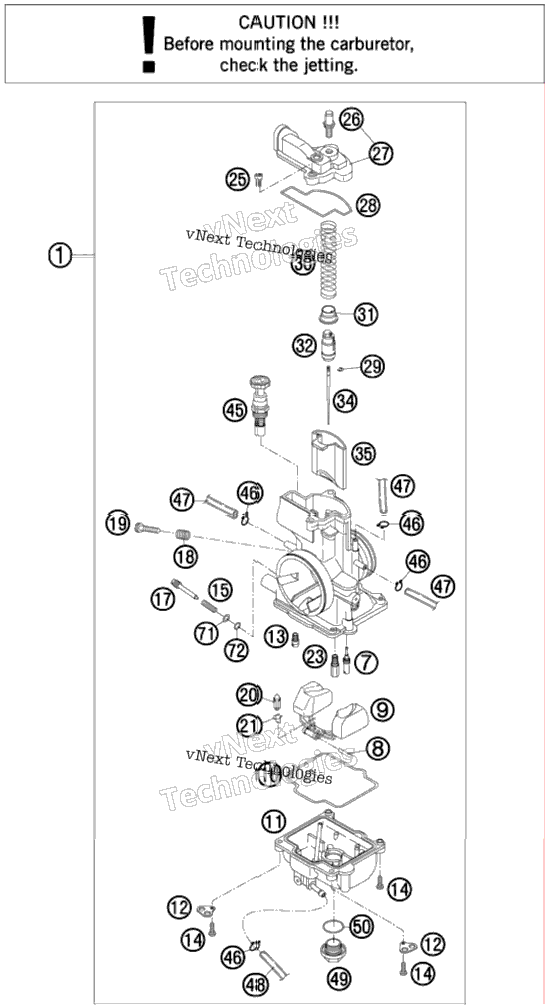

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 54831101744 | CARB. KEIH PWK 36S AG FK23 08 08 | 1 |
| 1 | 54531607035 | IDLE JET 35 KEIHIN (As required) | 1 |
| 1 | 54531607038 | IDLE JET 38 KEIHIN (As required) | 1 |
| 1 | 54531607040 | IDLE JET 40 KEIHIN (As required) | 1 |
| 1 | 54531607042 | IDLE JET 42 KEIHIN (As required) | 1 |
| 1 | 54531607045 | IDLE JET 45 KEIHIN (As required) | 1 |
| 1 | 54531607048 | IDLE JET 48 KEIHIN (As required) | 1 |
| 1 | 54531607050 | IDLE JET 50 KEIHIN (As required) | 1 |
| 1 | 57331008000 | ARM PIN FLOAT | 1 |
| 1 | 57331009000 | FLOAT CPL. | 1 |
| 1 | 54831010000 | GASKET FLOAT CHAMBER | 1 |
| 1 | 54831011000 | FLOAT CHAMBER PWK38-S AG | 1 |
| 2 | 54531612100 | RETAINING PLATE FOR BLEEDER | 2 |
| 1 | 54831051085 | STARTER JET 85 KEIHIN (As required) | 1 |
| 4 | 0016040163 | HH COLLAR SCREW M 4X16 WS=6 WS=6 | 4 |
| 1 | 54531615000 | SPRING FOR ADJUSTMENT SCREW | 1 |
| 1 | 54531617000 | ADJUSTMENT SCREW | 1 |
| 1 | 54631118000 | SPRING | 1 |
| 1 | 54631219100 | ADJUSTMENT SCREW M 5 | 1 |
| 1 | 54631220000 | FLOAT NEEDLE | 1 |
| 1 | 54531621000 | CLAMP | 1 |
| 1 | 54531623150 | MAIN JET 150 KEIHIN (As required) | 1 |
| 1 | 54531623152 | MAIN JET 152 KEIHIN (As required) | 1 |
| 1 | 54531623155 | MAIN JET 155 KEIHIN (As required) | 1 |
| 1 | 54531623158 | MAIN JET 158 KEIHIN (As required) | 1 |
| 1 | 54531623160 | MAIN JET 160 KEIHIN (As required) | 1 |
| 1 | 54531623162 | MAIN JET 162 KEIHIN (As required) | 1 |
| 1 | 54531623165 | MAIN JET 165 KEIHIN (As required) | 1 |
| 1 | 54531623168 | MAIN JET 168 KEIHIN (As required) | 1 |
| 1 | 54531623170 | MAIN JET 170 KEIHIN (As required) | 1 |
| 1 | 54531623172 | MAIN JET 172 KEIHIN (As required) | 1 |
| 1 | 54531623175 | MAIN JET 175 KEIHIN (As required) | 1 |
| 2 | 54831025000 | SPECIAL-AH-SCREW M 4X12 | 2 |
| 1 | 54831029000 | THROTTLE CALBE HOLDER M6X0,75 | 1 |
| 1 | 54831127000 | CARBURETOR COVER PWK36-S AG | 1 |
| 1 | 54831028000 | GASKET FOR CARBURETOR COVER | 1 |
| 1 | 54531629000 | CLIP FOR JET NEEDLE | 1 |
| 1 | 54831030000 | SLIDING SPRING | 1 |
| 1 | 54631231000 | SPRING CAP | 1 |
| 1 | 54631232000 | NIPPLE | 1 |
| 1 | 54831035000 | JET NEEDLE KEIHIN N8RF 06 06 (As required) | 1 |
| 1 | 54831035100 | JET NEEDLE KEIHIN N8RG 06 06 (As required) | 1 |
| 1 | 54831035300 | JET NEEDLE KEIHIN N8RE 06 06 (As required) | 1 |
| 1 | 54831035400 | JET NEEDLE KEIHIN N8RH 06 06 (As required) | 1 |
| 1 | 54831035500 | JET NEEDLE KEIHIN N8RW 07 07 (As required) | 1 |
| 1 | 54831035600 | JET NEEDLE KEIHIN N8RJ 07 07 (As required) | 1 |
| 1 | 54631035000 | THROTTLE VALVE 7 FOR 38 PJ '00 | 1 |
| 1 | 54631245000 | STARTER PISTON CPL. | 1 |
| 5 | 54531696000 | CLAMP 6 MM | 5 |
| 2 | 31007007101 | PVC-HOSE 4X6MM | 2 |
| 1 | 52031137001 | PVC-HOSE 3X5MM (As required) | 1 |
| 1 | 54531699000 | PLUG M 18X1 | 1 |
| 1 | 0770180230 | O-RING 18,00X2,30 NBR 70 | 1 |
| 1 | 54831071000 | WASHER ADJUSTING SCREW | 1 |
| 1 | 54831072000 | O-RING ADJUSTING SCREW | 1 |
