Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

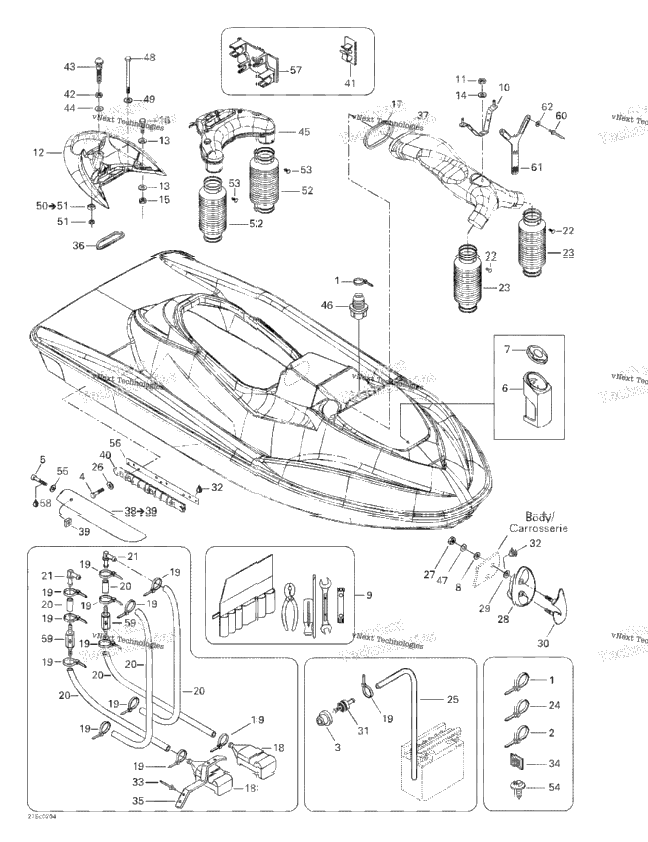

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293720029 | Grommet | 1 |
| 207363060 | Hex. Screw M6 X 30, Scotch Grip | ||
| 2 | 205065060 | SOCKET HEAD SCREW M6 X 50 | 2 |
| 1 | 269500606 | EXTINGUISHER HOUSING | 1 |
| 1 | 269500603 | Extinguisher Cap | 1 |
| 2 | 293830037 | Rubber Washer | 2 |
| 295500783 | Owners Tool Kit | ||
| 291001614 | Collector Support | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 269000680 | Grab Handle | ||
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 3 | 232581650 | Elastic Stop Nut M8 | 3 |
| 3 | 207084560 | Hex. Screw M8 X 45 | 3 |
| 291001424 | Collector Joint | ||
| 292000688 | Bailer Screen | ||
| 13 | 293750001 | Tie Wrap 94 mm | 13 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 2 | 293730024 | Dart, Fastex | 2 |
| 291001777 | Vent Hose | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 275500446 | HOSE 6 MM | ||
| 10 | 234061600 | Stainless, Flat Washer M6 | 10 |
| 2 | 232581650 | Elastic Stop Nut M8 | 2 |
| 292000638 | Shell (Blue) RX DI BLUE/BLEU. | ||
| 1 | 292000453 | Shell, Black RX DI YELLOW/JAUNE. | 1 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 1 | 292000712 | Bow Eye (Blue) RX DI BLUE/BLEU. | 1 |
| 1 | 292000708 | Bow Eye Ass'y, Black RX DI YELLOW/JAUNE. | 1 |
| 275500499 | CHECK VALVE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 293750215 | Tie Rap Mount | ||
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 293200059 | Baffle Seal | ||
| 291001629 | Front Collector | ||
| 292000616 | RH Sponson Includes 38 - 39. | ||
| 1 | 292000617 | LH SPONSON | 1 |
| 232862600 | Square Nut M6 | ||
| 292000627 | RH Base Sponson | ||
| 292000624 | LH Base Sponson | ||
| 1 | 293750005 | TIE CLAMP | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 291000691 | LATCH STUD | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 291001417 | Vent Tube Ass'y | ||
| 1 | 293720042 | GROMMET | 1 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 230262060 | HEX. SCREW M6 X 120, SCOTCH GRIP | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 271000598 | NUT HOUSING ASS'Y Includes 50 - 51. | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 293450210 | RH Insert Sponson | ||
| 291001399 | Clamp Tie | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 276000093 | Check Valve | ||
| 2 | 293150043 | Pop Rivet 3/16" | 2 |
| 293850065 | Rubber Strap | ||
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
