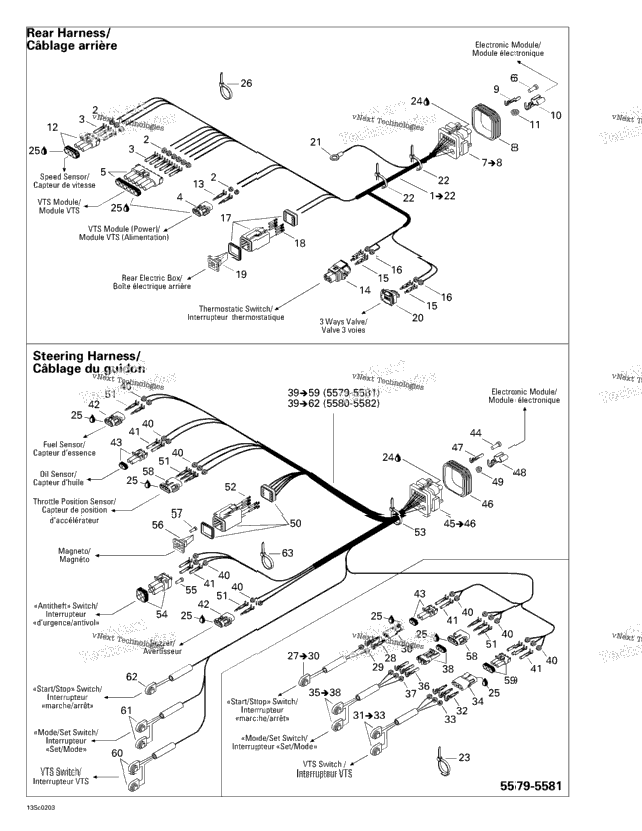

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001555 | Rear Harness Includes 1 - 22. | ||
| 11 | 278000218 | Wire Seal | 11 |
| 9 | 278000223 | Female Terminal | 9 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 278000221 | MALE CONNECTOR, 6 CIRCUITS | ||
| 6 | 293000070 | SEALING CAP | 6 |
| 1 | 278001063 | MALE TERMINAL HOUSING, 26 CIRCUITS Includes 7 - 8. | 1 |
| 1 | 278001307 | WIRE SEAL | 1 |
| 278000995 | FEMALE TERMINAL | ||
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000996 | WIRE SEAL | ||
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 2 | 409004300 | Male Terminal | 2 |
| 1 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS | 1 |
| 4 | 278000998 | Female Terminal | 4 |
| 4 | 278000999 | Wire Seal | 4 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 6 | 278000632 | Female Terminal | 6 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 1 | 278001003 | Male Connector, 2 Circuits | 1 |
| 409003200 | OPEN BARREL | ||
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 278001353 | SWITCH ASS. START/STOP Includes 27 - 30. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 278001354 | VTS Switch Ass'y Includes 31 - 33. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 278001534 | Mode/Set Switch Includes 35 - 38. | ||
| 3 | 278000223 | Female Terminal | 3 |
| 278001575 | Steering Harness (5579-5581) Includes 39 - 59. | ||
| 278001557 | Steering Harness (5580-5582) Includes 39 - 62. | ||
| 20 | 278000218 | Wire Seal | 20 |
| 12 | 278000218 | Wire Seal | 12 |
| 10 | 278000223 | Female Terminal | 10 |
| 5 | 278000223 | Female Terminal | 5 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 2 | 278000220 | Male Connector, 2 Circuits | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 1 | 293000070 | SEALING CAP | 1 |
| 4 | 293000070 | SEALING CAP | 4 |
| 278001062 | Male Terminal Housing, 26 Circuits Includes 45 - 46. | ||
| 10 | 278000222 | Male Terminal | 10 |
| 7 | 278000222 | Male Terminal | 7 |
| 5 | 278000632 | Female Terminal | 5 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 293000052 | Sealing Cap | 1 |
| 2 | 278000281 | Female Terminal Housing, 3 Circuits | 2 |
| 278001404 | VTS Switch (5580-5582) | ||
| 278001375 | <<Mode/Set>> Switch | ||
| 278001405 | <<Start/Stop>> Switch | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
