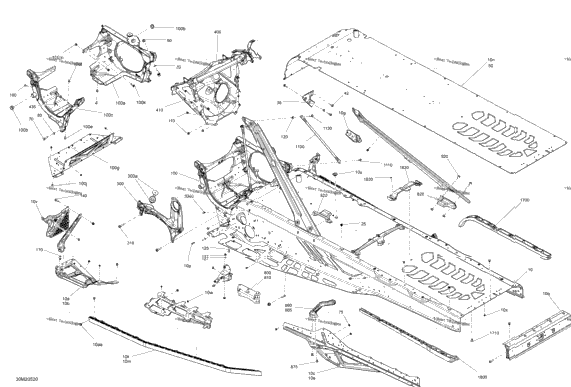

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 415130333 | Deep Black, Chassis Tunnel Module 154" Includes 10 to 10ab | ||
| 1 | 518330520 | RH Footrest Reinforcement | 1 |
| 1 | 518331524 | Deep Black, LH Footrest Reinforcement | 1 |
| 1 | 518330841 | RH Suspension Support | 1 |
| 1 | 518330842 | LH Suspension Support | 1 |
| 1 | 518329789 | RH Footrest Reinforcement Includes 10g to 10h | 1 |
| 1 | 518329648 | RH Roller | 1 |
| 1 | 518328452 | LH Roller | 1 |
| 1 | 518329835 | Radiator | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 518329354 | Rear Cap | 1 |
| 1 | 293730052 | Black, Plug | 1 |
| 1 | 518329791 | LH Footrest | 1 |
| 20 | 293150203 | Rivet AVIBULB 3/16 | 20 |
| 5 | 293150146 | Henrob Rivet | 5 |
| 8 | 293150174 | Hemlock Rivet, 6.4 mm | 8 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 2 | 506151252 | Washer | 2 |
| 1 | 518331727 | RH Stirrup Reinforcement | 1 |
| 2 | 250000717 | Torx Head Screw M6 X 16 | 2 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm | 1 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 518330755 | Engine Chassis Module Ass'y Includes 100 to 100m | 1 |
| 1 | 518330545 | RH Member Ass'y Includes 100a to 100b | 1 |
| 1 | 505073317 | Leg Cushion | 1 |
| 1 | 518330547 | LH Member Ass'y Includes 100c to 100d | 1 |
| 3 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 3 |
| 3 | 293150149 | Collar Huck Magna-Grip 6.4 | 3 |
| 1 | 518330074 | Bottom Plate | 1 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 2 | 207662046 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 2 | 293150173 | Rivet 6,4 mm | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 293450267 | Insert M5 - 0.8 | 1 |
| 4 | 207661646 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 518328693 | Brace Ass'y Includes 300 to 300a | 1 |
| 1 | 512060295 | Rubber Mount | 1 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518330573 | S Module | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 250001062 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 518331729 | LH Under Chassis Reinforcement | 1 |
| 1 | 518331731 | RH Under Chassis Reinforcement | 1 |
| 2 | 518331733 | Cross Member Support | 2 |
| 1 | 518330858 | Deep Black LH Rear Footrest Reinforcement | 1 |
| 1 | 518330861 | Deep Black RH Rear Footrest Reinforcement | 1 |
| 4 | 293150183 | Rivet | 4 |
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 518329974 | Upper Colomn Support | 2 |
| 1 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 207662556 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 518329982 | Front Protector | 1 |
| 3 | 293150108 | Pop Rivet 3/16” | 3 |
| 2 | 518329979 | Rear Protector TR20X154X1.5ICST | 2 |
| 1 | 520001545 | Support TR20X154X1.5ICST | 1 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 TR20X154X1.5ICST | 2 |
| 2 | 293730079 | Dart | 2 |
