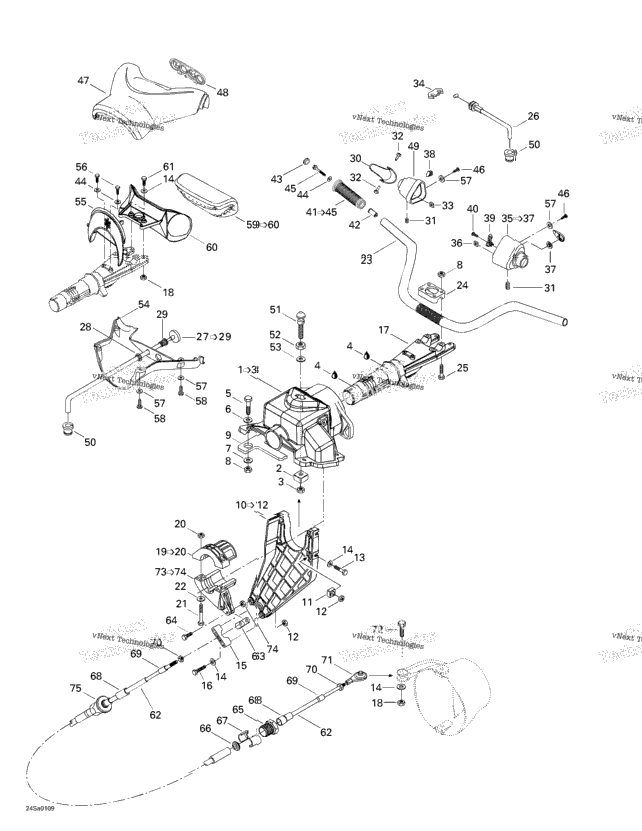

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277000645 | Steering Support Includes 1 - 3. | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 2 - 3. | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 4 | 207083560 | Hex. Screw M8 X 35 | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 8 | 232581650 | Elastic Stop Nut M8 | 8 |
| 293250069 | Gasket | ||
| 277000516 | CABLE SUPPORT Includes 10 - 12. | ||
| 3 | 269500252 | M6 Nut Housing Ass'y Includes 11 - 12. | 3 |
| 5 | 232561600 | Hex. Elastic Stop Nut M6 | 5 |
| 3 | 207162060 | Hex. Forming Screw M6 X 20 | 3 |
| 9 | 234061600 | Stainless, Flat Washer M6 | 9 |
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 277000562400 | Steering Stem | ||
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 277000519 | Arm Thrust Includes 19 - 20. | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 277000824 | Handle Bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 1 | 277000727 | THROTTLE CABLE | 1 |
| 270000728 | CHOKE CABLE Includes 27 - 29. | ||
| 211100030 | NUT-HEXAGONAL HI-LEX | ||
| XXXX | Not Available As Spare Part - Choke Plate | ||
| 277000214 | Throttle Handle | ||
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 2 | 277000381 | PIN | 2 |
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 1 | 277000279 | TAB LOCK | 1 |
| 277000869 | LH HANDLE HOUSING ASS'Y Includes 35 - 37. | ||
| 277000306 | Switch Knob | ||
| 2 | 293450153 | INSERT | 2 |
| 277000845 | Retainer Plate | ||
| 1 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 1 |
| 2 | 295500691 | HANDLE GRIP KIT, BLACK Includes 41 - 45. | 2 |
| XXXX | Not Available As Spare Part - Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 4 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 4 |
| 277000923 | Upper Steering Cover Includes 47 - 48. | ||
| 277000823 | Steering Plate | ||
| 1 | 277000872 | THROTTLE HOUSING ASS'Y | 1 |
| 293720046 | Grommet | ||
| 1 | 291000689 | LATCH STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 277000925 | Lower Steering Cover | ||
| 1 | 277000549 | PLATE | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 277000723 | Pad-Handle Includes 59 - 60. | ||
| 277000687 | Handle Bar Pad Support | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 271000436 | Steering Cable | ||
| 277000646 | Joint | ||
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277000052 | Cable Lock | 1 |
| 211100009 | RUBBER WASHER | ||
| 2 | 277000055 | Half Ring | 2 |
| 277000473 | Boot, Large | ||
| 277000466 | Boot, Small | ||
| 2 | 212100005 | Hex. Nut | 2 |
| 1 | 277000153 | BALL JOINT | 1 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 277000518 | Steering Stem Arm Includes 73 - 74. | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 277000167 | KNOB ADJUSTER | 1 |
