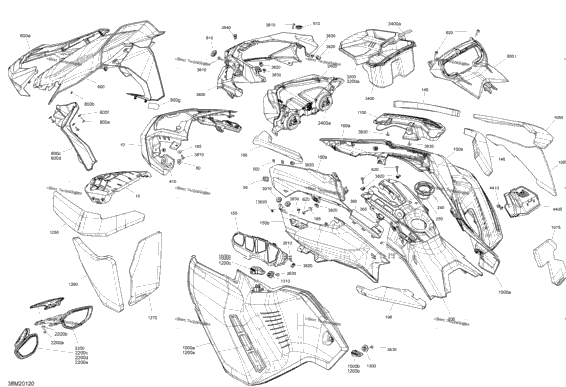

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 517306284 | Deep Black, Center Hood | 1 |
| 1 | 517306424 | Center Hood Grille | 1 |
| 4 | 517124300 | Washer | 4 |
| 2 | 517305109 | Rivet Plate | 2 |
| 2 | 508000853 | Push Nut | 2 |
| 1 | 517306777 | RH Front Hood | 1 |
| 1 | 517306778 | RH Rear Hood | 1 |
| 1 | 517305763 | RH Front Hood Foam | 1 |
| 1 | 517306001 | RH Hood Foam | 1 |
| 1 | 517306780 | LH Front Hood | 1 |
| 1 | 517306781 | LH Rear Hood | 1 |
| 1 | 517306470 | LH Hood Trim | 1 |
| 1 | 250200166 | Washer | 1 |
| 1 | 517305764 | LH Front Hood Foam | 1 |
| 1 | 517306002 | LH Hood Foam | 1 |
| 1 | 517306290 | Deep Black, Rear Console | 1 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 517306602 | Console Nut | 1 |
| 1 | 706002839 | O-Ring | 1 |
| 1 | 517306582 | LH Front Console | 1 |
| 1 | 572051500 | Cap | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 1 | 517306289 | Gauge Support | 1 |
| 2 | 250000587 | Torx Screw M5 X 26 | 2 |
| 1 | 517307327 | Windshield Ass'y 585MM Includes 800 to 800g | 1 |
| 1 | 517306183 | Deep Black, Windshield Support | 1 |
| 8 | 732610072 | Push Nut | 8 |
| 1 | 517306184 | RH Air Deflector | 1 |
| 1 | 517306185 | LH Air Deflector | 1 |
| 6 | 250000889 | Screw M4 X 16 | 6 |
| 6 | 250200024 | Rubber Washer 5 mm | 6 |
| 1 | 516009227 | Decal | 1 |
| 2 | 517303756 | Grommet | 2 |
| 1 | 517306298 | Deep Black, RH Panel | 1 |
| 1 | 517305773 | RH Rear Latch | 1 |
| 1 | 517305979 | RH Front Latch | 1 |
| 1 | 517306497 | RH Front Panel Foam | 1 |
| 1 | 517306561 | RH Central Panel Foam | 1 |
| 1 | 517306501 | RH Rear Panel Foam | 1 |
| 1 | 517307049 | Grille | 1 |
| 1 | 517307021 | Deep Black, LH Panel | 1 |
| 1 | 517305774 | LH Rear Latch | 1 |
| 1 | 517305980 | LH Front Latch | 1 |
| 1 | 517306498 | LH Front Panel Foam | 1 |
| 1 | 517306562 | LH Central Panel Foam | 1 |
| 1 | 517306499 | LH Rear Panel Foam | 1 |
| 2 | 517305985 | Rear Stud | 2 |
| 2 | 517305988 | Front Stud | 2 |
| 1 | 517306490 | Rearview Mirror Kit Includes 2200 to 2200e | 1 |
| 4 | 250000742 | Torx Screw M5 X 14 | 4 |
| 4 | 250200024 | Rubber Washer 5 mm | 4 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 | 2 |
| 2 | 232551414 | Elastic Stop Nut M5 | 2 |
| 2 | 250000732 | Torx Screw Nylon | 2 |
| 1 | 517305752 | Headlamp Includes 2400 to 2400a | 1 |
| 2 | 415130081 | Bulb | 2 |
| 2 | 517302841 | Grommet | 2 |
| 1 | 517305871 | Deep Black, Cover Ass'y Includes 3200 to 3200a | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 517306058 | Trunk Ass'y Includes 3400 to 3400a | 1 |
| 2 | 517305157 | Seal Joint | 2 |
| 1 | 517306301 | Headlamp Fairing | 1 |
| 4 | 250000528 | Torx Screw M5 X 20 | 4 |
| 4 | 250000958 | Panel Nut M5 X 0.8 | 4 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 517306303 | Shift Lever Grille | 1 |
| 3 | 293150104 | Pop Rivet 3/16" | 3 |
