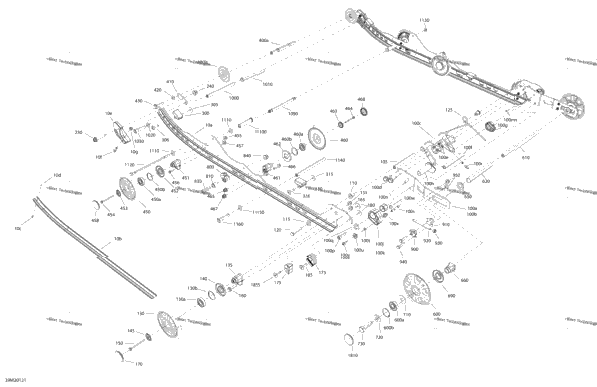

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503193723 | Runner | 1 |
| 1 | 503192618 | Black Slider, 154" | 1 |
| 1 | 208562531 | Phillips Screw M6 X 25 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 503192609 | LH Protector | 1 |
| 1 | 503192610 | RH Protector | 1 |
| 1 | 503193970 | RH Rail Pivot | 1 |
| 1 | 503193969 | LH Rail Pivot | 1 |
| 1 | 503192647 | Runner Pivot | 1 |
| 4 | 207682534 | Hex. Flange Screw M8 X 25 | 4 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 1 | 503191608 | Cam Axle | 1 |
| 1 | 503191190 | RH Spring Cam | 1 |
| 1 | 503191668 | LH Spring Cam | 1 |
| 1 | 503192426 | LH Block | 1 |
| 1 | 503192427 | RH Block | 1 |
| 1 | 250400005 | DOWEL PIN 4 X 8 MM | 1 |
| 2 | 503189488 | Block Guide | 2 |
| 2 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip | 2 |
| 2 | 503189148 | Washer | 2 |
| 1 | 408200700 | Grease Fitting | 1 |
| 1 | 503192437 | Rode | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 503192438 | Handle | 1 |
| 1 | 250000742 | Torx Screw M5 X 14 | 1 |
| 1 | 293370068 | Circlip | 1 |
| 1 | 503192436 | Compression Spring | 1 |
| 1 | 503191279 | Lower Shaft | 1 |
| 2 | 503189324 | Bushing | 2 |
| 2 | 503192496 | Washer | 2 |
| 2 | 250000605 | Hex. Screw S.Grip M10 X 55 | 2 |
| 1 | 503194624 | Spring | 1 |
| 2 | 503191152 | Black, Wheel Ass'y 147 mm Included 130 to 130b | 2 |
| 1 | 503190396 | Ball Bearing | 1 |
| 1 | 415129371 | Retaining Ring | 1 |
| 2 | 503193894 | Casted Support | 2 |
| 2 | 503190434 | Labyrinth Seal | 2 |
| 2 | 503191820 | Wheel Cup M6 | 2 |
| 2 | 250000944 | Hex. Flange Screw M6 X 70 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 250000945 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 503192771 | Black, Wheel Cap | 2 |
| 4 | 503191291 | Rubber Stopper | 4 |
| 4 | 503191273 | Washer | 4 |
| 4 | 293150224 | Pop Rivet 3/16 | 4 |
| 2 | 207684044 | Hex. Flange Screw M8 X 40 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 1 | 503190576 | Rubber Stopper | 1 |
| 1 | 503191273 | Washer | 1 |
| 1 | 293150224 | Pop Rivet 3/16 | 1 |
| 2 | 503193504 | Rubber Stopper | 2 |
| 2 | 503191273 | Washer | 2 |
| 2 | 293150224 | Pop Rivet 3/16 | 2 |
| 1 | 503192644 | Front Wheel Axle | 1 |
| 2 | 503192611 | Black, Wheel Ass'y, 100 mm | 2 |
| 2 | 503192612 | Plate | 2 |
| 2 | 503192494 | Washer | 2 |
| 2 | 250000986 | Hex. Flange Screw M8 X 35 | 2 |
| 2 | 503191152 | Black, Wheel Ass'y 147 mm Included 450 to 450b | 2 |
| 2 | 503191152 | Black, Wheel Ass'y 147 mm Included 460 to 460b | 2 |
| 2 | 503192128 | Deep Black, Wheel Ass'y, 165 mm Included 600 to 600b | 2 |
| 1 | 503190429 | Rear Axle | 1 |
| 1 | 503191736 | Rear Spacer, Long | 1 |
| 2 | 503190432 | Washer | 2 |
| 2 | 503190428 | Rear Wheel Spacer | 2 |
| 2 | 503191910 | Washer | 2 |
| 2 | 234201474 | Conical Spring Washer 10 mm | 2 |
| 2 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 | 2 |
| 2 | 503195351 | Spring Support | 2 |
| 2 | 503190754 | Retainer Cushion | 2 |
| 2 | 205082554 | Socket Screw M8 X 25 | 2 |
| 2 | 503192583 | Tensioner | 2 |
| 2 | 503193250 | Spacer | 2 |
| 2 | 230100054 | Hex Screw M10 x 100 | 2 |
| 2 | 233601466 | Elastic Locking Nut M10 | 2 |
| 4 | 207063054 | Hex. Cap Screw M6 X 30 | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 1 | 503192613 | Axle Strap | 1 |
| 1 | 503192678 | Spacer | 1 |
| 2 | 205503554 | Socket Head Screw M10 X 35 | 2 |
| 1 | 503193435 | Pivot Axle | 1 |
| 2 | 503191259 | Center Bushing | 2 |
| 4 | 250200143 | Flat Washer | 4 |
| 1 | 503193227 | Bolt M10 X 251MM | 1 |
| 1 | 233201466 | Flange Elastic Nut M10 | 1 |
| 1 | 503191260 | Axle Strap | 1 |
