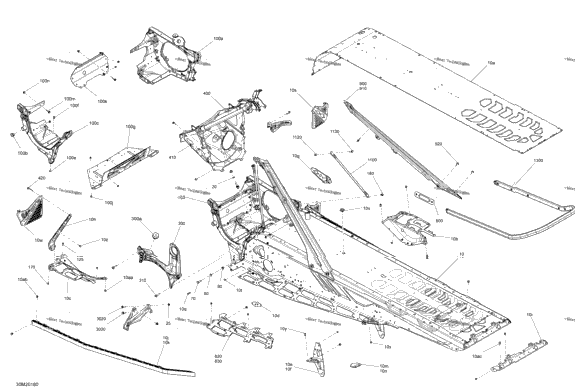

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 518331556 | LH Foot Protector | 1 |
| 1 | 415130307 | Labrador Blue, Chassis Tunnel Module 146" Includes 10 to 10aa | 1 |
| 1 | 415130286 | Chassis Tunnel Module 137" | 1 |
| 1 | 518330520 | RH Footrest Reinforcement | 1 |
| 518330521 | LH Footrest Reinforcement | ||
| 2 | 518326647 | Reinforcement Plate | 2 |
| 1 | 518329626 | LH Suspension Bracket | 1 |
| 1 | 518329625 | RH Suspension Bracket | 1 |
| 1 | 518331253 | Stirrup Reinforcement | 1 |
| 1 | 518331560 | Deep Black, LH Chasssis Reinforcement | 1 |
| 1 | 518329023 | RH Roller | 1 |
| 1 | 518329024 | LH Roller | 1 |
| 1 | 518329088 | LH Reinforcement Plate | 1 |
| 1 | 518329089 | RH Reinforcement Plate | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 518328990 | Rear Cap | 1 |
| 1 | 518328460 | RH Footrest | 1 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 1 | 293730052 | Black, Plug | 1 |
| 1 | 293150203 | Rivet AVIBULB 3/16 | 1 |
| 6 | 293150183 | Rivet | 6 |
| 4 | 293150096 | Hemlock Rivet, 6.5 mm | 4 |
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 4 | 293150174 | Hemlock Rivet, 6.4 mm | 4 |
| 2 | 293150147 | Hemlock Rivet | 2 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 2 | 506151252 | Washer | 2 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 518331591 | Engine Chassis module Ass'y Includes 100 to 100p | 1 |
| 1 | 518330545 | RH Member Ass'y Includes 100a to 100b | 1 |
| 1 | 505073317 | Leg Cushion | 1 |
| 1 | 518330547 | LH Member Ass'y Includes 100c to 100d | 1 |
| 3 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 3 |
| 3 | 293150149 | Collar Huck Magna-Grip 6.4 | 3 |
| 1 | 518330074 | Bottom Plate | 1 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 518330100 | Front Member | 1 |
| 4 | 207662046 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 1 | 293450267 | Insert M5 - 0.8 | 1 |
| 4 | 207661646 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 518328693 | Brace Ass'y Includes 300 to 300a | 1 |
| 1 | 512060295 | Rubber Mount | 1 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518330573 | S Module | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 2 | 518329480 | Member Fixation Plate | 2 |
| 1 | 518329646 | RH Tunnel Liner | 1 |
| 1 | 518329647 | LH Tunnel Liner | 1 |
| 1 | 518331681 | Labradot Blue, LH Rear Diag Cross Member Includes 900 to 900a | 1 |
| 1 | 518331682 | Labrador Blue, RH Rear Diag Cross Member | 1 |
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 518329974 | Upper Colomn Support | 2 |
| 3 | 233261416 | Elastic Flange Nut M6 X 1.0 | 3 |
| 1 | 207662556 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 518329553 | Rear Bumper 146 | 1 |
| 1 | 250000793 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
