Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

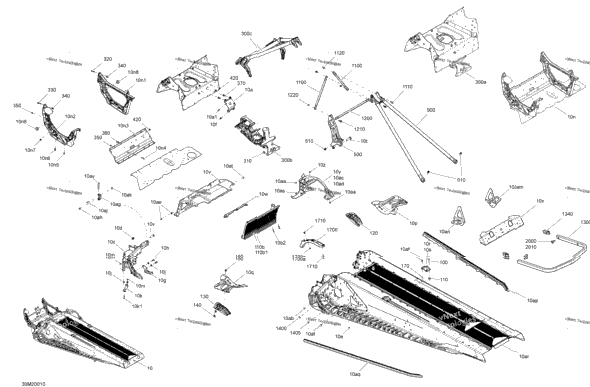

| 415130276 | FRAME 137 RENEGADE Includes 10 to 10av | ||
| 1 | 518325943 | MAG Engine Support Includes 10a to 10a1 | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 518326485 | Front Radiator Includes 10b to 10b2 | 1 |
| 1 | 518326486 | Front Radiator | 1 |
| 1 | 518326820 | LH Stirup | 1 |
| 2 | 250000958 | Panel Nut M5 X 0.8 | 2 |
| 5 | 293150203 | Rivet AVIBULB 3/16 | 5 |
| 2 | 293150119 | Hemlock Rivet, 6.5 mm | 2 |
| 1 | 518326960 | Support | 1 |
| 2 | 250000536 | Tork Screw M6 X 18 | 2 |
| 5 | 250200039 | Flat Washer | 5 |
| 1 | 518326986 | Attach Includes 10k to 10k1 | 1 |
| 3 | 232561414 | Elastic Stop Nut M6 | 3 |
| 1 | 518327567 | E Module Includes 10n to 10at | 1 |
| 1 | 518326795 | RH Member | 1 |
| 1 | 518326796 | LH Member | 1 |
| 1 | 518326198 | Front Member Includes 10n3 to 10n4 | 1 |
| 2 | 250300038 | Clinch Stud | 2 |
| 6 | 293150144 | Stavex Rivet | 6 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 4 | 293150119 | Hemlock Rivet, 6.5 mm | 4 |
| 2 | 505073317 | Leg Cushion | 2 |
| 1 | 518324874 | RH Reinforcement | 1 |
| 1 | 518324875 | LH Reinforcement | 1 |
| 1 | 518325973 | RH Rear Base | 1 |
| 1 | 518325974 | LH Rear Base Includes 10s to 10v | 1 |
| 3 | 250300027 | Clinch Stud M6 X 20 | 3 |
| 1 | 518326656 | Seal | 1 |
| 1 | 518327105 | Rear Cap | 1 |
| 1 | 518328938 | RH Stirup Includes 10y to 10z | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 2 | 293730042 | Full Moon Dart 5 mm | 2 |
| 14 | 293150203 | Rivet AVIBULB 3/16 | 14 |
| 4 | 390909100 | Avex Rivet | 4 |
| 7 | 293150144 | Stavex Rivet | 7 |
| 12 | 293150146 | Henrob Rivet | 12 |
| 2 | 293150174 | Hemlock Rivet, 6.4 mm | 2 |
| 1 | 518326961 | U-Attach | 1 |
| 1 | 293150147 | Hemlock Rivet | 1 |
| 1 | 250000534 | Tork Screw M6 X 16 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 1 | 518328790 | LH Bracket | 1 |
| 1 | 518328789 | RH Bracket | 1 |
| 1 | 518325377 | RH Roller | 1 |
| 1 | 518325378 | LH Roller | 1 |
| 1 | 518327588 | Rear Radiator 137'' Includes 10ar to 10as | 1 |
| 1 | 293150144 | Stavex Rivet | 1 |
| 8 | 293150203 | Rivet AVIBULB 3/16 | 8 |
| 1 | 250000535 | Torx Screw M8 X 55 | 1 |
| 4 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 4 |
| 4 | 293150149 | Collar Huck Magna-Grip 6.4 | 4 |
| 1 | 518325782 | RH Deflector, Black Polypropylene | 1 |
| 1 | 518325783 | LH Deflector, Black Polypropylene | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 3 | 293150174 | Hemlock Rivet, 6.4 mm | 3 |
| 1 | 518328320 | Cross Member S Module Includes 300a to 300b | 1 |
| 1 | 518327487 | Front Suspension Support | 1 |
| 1 | 518326970 | Front Member | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 6 | 293150191 | Monobolt Rivet, 4.8 mm | 6 |
| 2 | 293150182 | Monobolt Rivet 6.4 | 2 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 3 | 293730053 | Black Dart 5 mm | 3 |
| 1 | 518328346 | Pulley Support | 1 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 1 | 518326559 | Rear Member | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 518325115 | Center Column Support | 1 |
| 1 | 518324980 | Clear Rear Bumper | 1 |
| 2 | 520000567 | Full Moon Cap | 2 |
| 3 | 293730041 | Full Moon Dart 8 mm | 3 |
| 2 | 293730059 | Full Moon Dart 10 mm | 2 |
| 1 | 518326973 | Front Tunnel Protector Includes 1700 to 1700a | 1 |
| 1 | 517124300 | Washer | 1 |
| 3 | 293150108 | Pop Rivet 3/16” | 3 |
| 10 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 10 |
| 10 | 224061201 | Flat Washer Not Shown | 10 |
