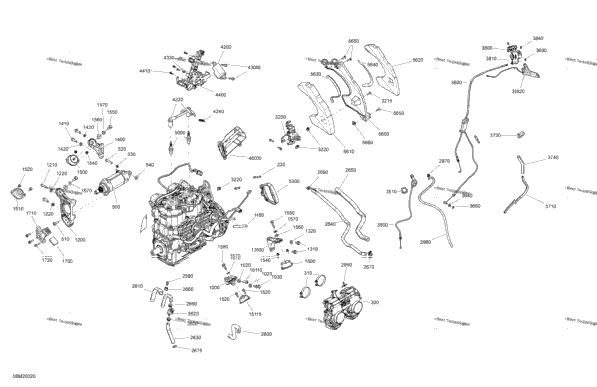

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 2 | 420924724 | Hose Nipple | 2 |
| 1 | 403138815 | Carburetor Kit, TM40-B418 | 1 |
| 2 | 512059835 | Gemi Clamp | 2 |
| 1 | 515178473 | Starter | 1 |
| 2 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip | 2 |
| 1 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip | 1 |
| 1 | 250200008 | Flat Washer With Teflon 8 mm | 1 |
| 1 | 515176500 | Washer | 1 |
| 1 | 512060478 | Rear Support, PTO | 1 |
| 1 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip | 1 |
| 2 | 250200146 | Conical Spring Washer M8 | 2 |
| 1 | 250001016 | Hex Flange Screw M8 X 25 S.Grip | 1 |
| 512060699 | Front Support, PTO | ||
| 2 | 250001016 | Hex Flange Screw M8 X 25 S.Grip | 2 |
| 1 | 512060559 | Rear Support, MAG | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 250200146 | Conical Spring Washer M8 | 1 |
| 1 | 512060469 | Front Support, MAG | 1 |
| 2 | 512060729 | Rubber Mount | 2 |
| 1 | 512060387 | Rubber Mount | 1 |
| 1 | 512060448 | Rubber Mount | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 3 | 207683044 | Hex. Flange Screw M8 X 30 | 3 |
| 3 | 503183200 | Yellow, Washer | 3 |
| 4 | 250200146 | Conical Spring Washer M8 | 4 |
| 1 | 250000796 | Hex. Flange Screw M8 X 1.25 X 25 | 1 |
| 1 | 512060627 | Stopper | 1 |
| 1 | 512060576 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 512060196 | Male Connector 1/8"-27 NPT | 1 |
| 1 | 512060355 | Hose Formed | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 512059324 | Valve 5/16” | 1 |
| 1 | 512060353 | Hose Formed | 1 |
| 1 | 512060347 | Hose Formed | 1 |
| 3 | 414655700 | Spring Clamp | 3 |
| 1 | 293650214 | Norma Spring Clamp | 1 |
| 1 | 293650125 | Oetiker Clamp | 1 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 1 | 572045500 | T-Fitting | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 1 | 250000528 | Torx Screw M5 X 20 | 1 |
| 1 | 250000958 | Panel Nut M5 X 0.8 | 1 |
| 1 | 512060672 | Choke Cable | 1 |
| 1 | 512060671 | Plastic Nut | 1 |
| 1 | 512060886 | Throttle Cable | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 512060313 | Protector | 1 |
| 1 | 512060859 | Upper Housing | 1 |
| 1 | 512060860 | Lower Housing | 1 |
| 1 | 512061252 | Throttle Handle Ass'y | 1 |
| 2 | 732601143 | Flange Screw | 2 |
| 1 | 512059968 | Ignition Coil | 1 |
| 2 | 512060291 | Cable | 2 |
| 1 | 410914600 | Plastic Clip, Spark Plug Wire | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 512060924 | Coils Support | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 1 | 512060680 | Calibrated Module, 600 | 1 |
| 2 | 415128524 | Spark Plug, NGK BR9ECS, 0.8 mm | 2 |
| 1 | 512060136 | Starter Grip | 1 |
| 1 | 512060338 | Noise Shield | 1 |
| 1 | 512060341 | Inner Noise Foam | 1 |
| 1 | 512060342 | Outer Noise Foam | 1 |
| 1 | 512060574 | Heat Shield | 1 |
| 1 | 512060575 | Heat Shield | 1 |
| 3 | 250000528 | Torx Screw M5 X 20 | 3 |
| 3 | 250000958 | Panel Nut M5 X 0.8 | 3 |
