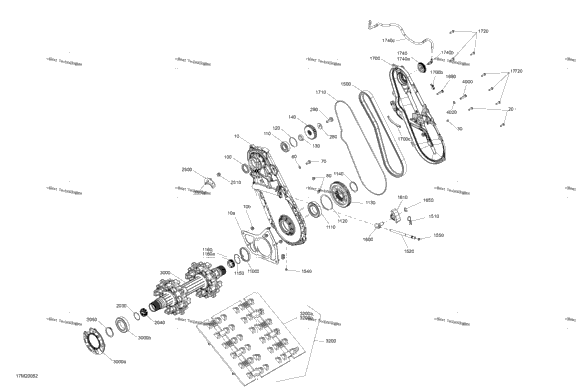

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504153718 | Chaincase Ass'y | 1 |
| 1 | 861805514 | Kit Plate Ass'y | 1 |
| 5 | 233261434 | Flange Elastic Nut M6 | 5 |
| 3 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 3 |
| 3 | 293150149 | Collar Huck Magna-Grip 6.4 | 3 |
| 1 | 504082900 | Washer | 1 |
| 1 | 250000740 | Torx Screw M8 X 20, Scotch Grip | 1 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 1 | 293200168 | Oil Seal | 1 |
| 1 | 293350115 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504152628 | Shim | 1 |
| 1 | 504091000 | Sprocket 23 Teeth Rip Saw & Ice Ripper XT | 1 |
| 1 | 504153910 | Sprocket 21 Teeth TR15X137X1.5IR | 1 |
| 1 | 504152784 | Spring Washer M10 | 1 |
| 1 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip | 1 |
| 1 | 293200159 | Oil Seal | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504152593 | Sprocket, 45 Teeth | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 1 | 504154019 | Magnetic Cap Includes 1160 to 1160a | 1 |
| 1 | 504154043 | Cap | 1 |
| 1 | 504152630 | Drive Chain, 106 Links TR15X137X1.5IR | 1 |
| 1 | 504152631 | Drive Chain, 108 Links Rip Saw & Ice Ripper XT | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504153760 | Adjustment Screw | 1 |
| 2 | 250500012 | Allen Drive Plug 1/8-27 PTF | 2 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 504153559 | Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 293370105 | Circlip | 1 |
| 1 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 1 |
| 1 | 504154066 | Deep Black, Chain Case Cover Ass'y Includes 1700 to 1700c | 1 |
| XXXX | Not Available As Spare Part - Rotation Sensor | ||
| 1 | 515178223 | Clip Connector | 1 |
| 1 | 415130141 | Braided Sleeve | 1 |
| 1 | 293300214 | O Ring | 1 |
| 8 | 250001012 | Torx T-30 Pan HD Taptite M6X20 | 8 |
| 504153535 | Cap Ass'y Includes 1740 to 1740c | ||
| 1 | 504152860 | Cap | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 504153695 | Bearing Housing Ass'y Includes 2500 to 2500a | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504153949 | Drive Axle Ass'y Includes 3000 to 3000b | 1 |
| 1 | 504153886 | Retaining Ring | 1 |
| 1 | 504153101 | Track Ass'y 15" X 137" X 1.25" Ice Ripper XT | 1 |
| 1 | 415129528 | Track Guide Ice Ripper XT | 1 |
| 1 | 415129529 | Cleat Ice Ripper XT | 1 |
| 1 | 504154057 | Track Ass'y 15'' X 137'' X 1.5'' TR15X137X1.5IR | 1 |
| 1 | 415129528 | Track Guide TR15X137X1.5IR | 1 |
| 1 | 504152651 | Cleat TR15X137X1.5IR | 1 |
| 1 | 504152905 | Track Ass'Y 15X137X1.2 Rip Saw | 1 |
| 1 | 415129528 | Track Guide Rip Saw | 1 |
| 1 | 504152651 | Cleat Rip Saw | 1 |
