Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

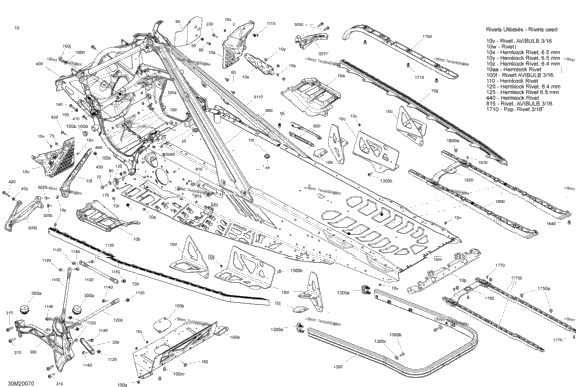

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 415130329 | Deep Black, Chassis Tunnel Module 137" Includes 10 to 10y | ||
| 1 | 518330738 | Deep Black, RH Footrest Reinforcement | 1 |
| 1 | 518331523 | Deep Black, LH Footrest Reinforcement | 1 |
| 1 | 518329627 | RH Suspension Bracket | 1 |
| 1 | 518329628 | LH Suspension Bracket | 1 |
| 1 | 518331253 | Stirrup Reinforcement | 1 |
| 1 | 518331560 | Deep Black, LH Chasssis Reinforcement | 1 |
| 1 | 518329648 | RH Roller | 1 |
| 1 | 518328452 | LH Roller | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 415130286 | Chassis Tunnel Module 137" | 1 |
| 1 | 518328990 | Rear Cap | 1 |
| 1 | 518330691 | RH Footrest | 1 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 293730052 | Black, Plug | 1 |
| 1 | 518331559 | LH Foot Protector | 1 |
| 1 | 293150203 | Rivet AVIBULB 3/16 | 1 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm | 1 |
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 6 | 293150174 | Hemlock Rivet, 6.4 mm | 6 |
| 2 | 293150147 | Hemlock Rivet | 2 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 2 | 506151252 | Washer | 2 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 1 | 518330756 | Engine Chassis Module Ass'y Includes 100 to 100p | 1 |
| 1 | 518329336 | RH Member Ass'y Includes 100a to 100b | 1 |
| 1 | 505073317 | Leg Cushion | 1 |
| 1 | 518330547 | LH Member Ass'y Includes 100c to 100d | 1 |
| 1 | 518329342 | Bottom Plate | 1 |
| 14 | 293150203 | Rivet AVIBULB 3/16 | 14 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 2 | 207662046 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 518329454 | Oil Plate | 1 |
| 2 | 250000767 | Torx Truss Screw M6 X 12 | 2 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 293150174 | Hemlock Rivet, 6.4 mm | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 293450267 | Insert M5 - 0.8 | 1 |
| 4 | 207661646 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 518329331 | Brace Ass'y Includes 300 to 300a | 1 |
| 2 | 512060295 | Rubber Mount | 2 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518331740 | LH Front Chassis Reinforcement | 1 |
| 1 | 518330570 | S Module | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 207663544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 6 | 293150147 | Hemlock Rivet | 6 |
| 2 | 518329480 | Member Fixation Plate | 2 |
| 4 | 293150203 | Rivet AVIBULB 3/16 | 4 |
| 1 | 518330060 | Black, LH Member Ass'y Includes 900 to 900a | 1 |
| 1 | 518330880 | Black, RH Member Ass'y | 1 |
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 518329370 | Upper Colomn Support | 2 |
| 1 | 293450275 | Insert | 1 |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 | 7 |
| 1 | 207662556 | Hex. Flange Screw M6 X 25 | 1 |
| 6 | 207662046 | Hex. Flange Screw M6 X 20 | 6 |
| 1 | 207562556 | Hex. Flange Screw M6 X 25, Scotch Grip | 1 |
| 1 | 518329755 | Center Column Support | 1 |
| 1 | 518330033 | Rear Bumper | 1 |
| 10 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 10 |
| 10 | 224061201 | Flat Washer | 10 |
| 1 | 518329982 | Front Protector | 1 |
| 3 | 293150108 | Pop Rivet 3/16” | 3 |
| 2 | 518329979 | Rear Protector | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 1 | 520001545 | Support | 1 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 | 2 |
| 2 | 293150108 | Pop Rivet 3/16” | 2 |
| 1 | 518330358 | Black Toe-hold | 1 |
| 1 | 518329134 | Toe Hold | 1 |
| 1 | 250000793 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 2 | 210262550 | Hex. Flange Forming Screw M6 X 25 | 2 |
