Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

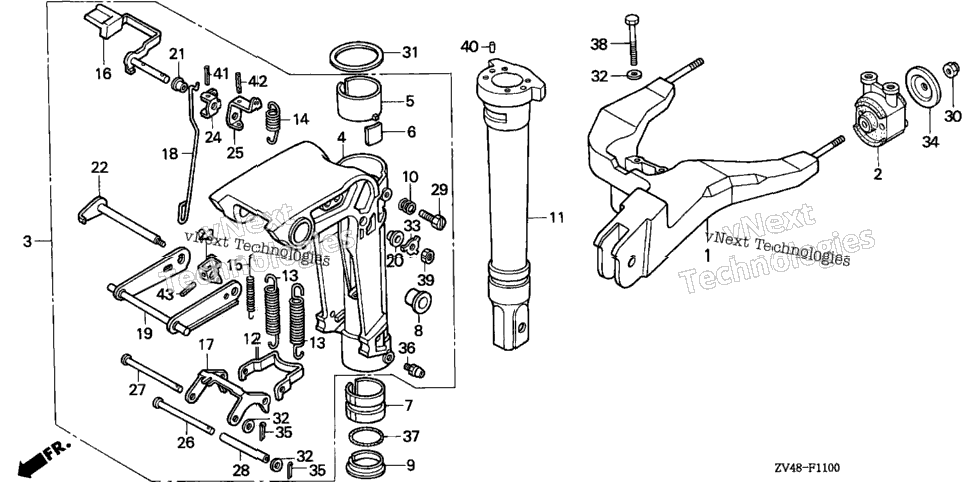

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 50100-ZV4-010ZB | SEE PART DETAILS - PRI; FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U) | ||
| 50151-ZV4-000ZB | MOUNT, RUBBER (UPPER) *NH282MU* (OYSTER SILVER METALLIC-U) | ||
| 50200-ZV4-020ZB | CASE ASSY., SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Use up to Frame SN 1403016. | ||
| 50200-ZV4-030ZB | CASE ASSY., SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Use from Frame SN 1403017 to 1405374. | ||
| 50200-ZV4-040ZB | SEE PART DETAILS - SUP; CASE ASSY., SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Use from Frame SN 1405375. | ||
| 50201-ZV4-020ZB | CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Use up to Frame SN 1405374. | ||
| 50201-ZV4-030ZB | SEE PART DETAILS - PRI; CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Use from Frame SN 1405375. | ||
| 50211-ZV4-000 | LINER, SWIVEL CASE | ||
| 50212-ZV4-000 | BLOCK, FRICTION | ||
| 50213-ZV4-000 | BUSH, SWIVEL SHAFT | ||
| 2 | 50214-ZV4-003 | BUSH, SWIVEL CASE | 2 |
| 50215-ZV4-000 | COLLAR, SWIVEL CASE | ||
| 1 | 50233-881-000 | SPRING, FRICTION ADJUSTING | 1 |
| 50417-ZV4-000ZB | SHAFT, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) | ||
| 50512-ZV4-000 | HOOK, REVERSE LOCK | ||
| 50514-ZV4-000 | SPRING, REVERSE LOCK | ||
| 50515-ZV4-300 | SPRING, TILT LEVER | ||
| 1 | 50516-ZV4-300 | SPRING, TILT LINK | 1 |
| 1 | 50517-ZV4-010 | SEE PART DETAILS - SUP; LEVER, TILT Use from Frame SN 1403017. | 1 |
| 50517-ZV4-020 | SEE PART DETAILS - PRI; LEVER, TILT | ||
| 50518-ZV4-000 | ARM, REVERSE LOCK | ||
| 50519-ZV4-300 | ROD, RELEASE SWIVEL CASE | ||
| 1 | 50520-ZV4-010 | SEE PART DETAILS - PRI; ARM, TILT | 1 |
| 2 | 50521-ZV1-000 | BUSH, TILT LEVER | 2 |
| 2 | 50522-ZV4-000 | BUSH, TILT LEVER | 2 |
| 1 | 50525-ZV4-000 | SEE PART DETAILS - SUP; SHAFT, TILT | 1 |
| 1 | 50525-ZV4-010 | SEE PART DETAILS - PRI; SHAFT, TILT | 1 |
| 1 | 50526-ZV4-000 | BRACKET, TILT SHAFT | 1 |
| 50527-ZV4-000 | BRACKET, RELEASE ROD Use up to Frame SN 1403016. | ||
| 1 | 50527-ZV4-010 | BRACKET, RELEASE ROD Use from Frame SN 1403017. | 1 |
| 50528-ZV4-000 | BRACKET, TILT LEVER Use up to Frame SN 1403016. | ||
| 1 | 50528-ZV4-010 | BRACKET, TILT LEVER Use from Frame SN 1403017. | 1 |
| 50531-ZV4-000 | SHAFT, REVERSE LOCK (A) | ||
| 1 | 50532-ZV4-000 | SHAFT, REVERSE LOCK (B) | 1 |
| 50533-ZV4-000 | COLLAR, REVERSE LOCK | ||
| 1 | 90109-ZV4-000 | BOLT, SPECIAL (8X20) | 1 |
| 2 | 90305-ZV4-000 | NUT, SELF-LOCK (8MM) | 2 |
| 90504-ZV4-000 | WASHER, THRUST (51MM) | ||
| 6 | 90504-921-010 | WASHER, PLAIN (6MM) Use from Frame SN 4800713. | 6 |
| 1 | 90505-ZV4-000 | WASHER, LOCK | 1 |
| 2 | 90513-ZV4-000 | WASHER, PLAIN (8MM) | 2 |
| 2 | 90759-ZV1-000 | SEE PART DETAILS - PRI; PIN, SPLIT (2.0) | 2 |
| 90901-ZV4-000 | SEE PART DETAILS - PRI; NIPPLE, GREASE | ||
| 1 | 91356-MG9-003 | O-RING (39.5X2.4) (ARAI) | 1 |
| 92101-06060-4J | BOLT, HEX. (6X60) | ||
| 1 | 94002-06490-0S | SEE PART DETAILS - PRI; NUT, HEX. (6MM) | 1 |
| 2 | 94303-06100 | PIN, DOWEL (6X10) | 2 |
| 1 | 90751-ZV4-C20 | SEE PART DETAILS - SUP; PIN, SPRING (3.0X22) Use from Frame SN 1403017. | 1 |
| 1 | 90751-ZV4-C21 | SEE PART DETAILS - PRI; PIN, SPRING (3.0X22) Use from Frame SN 1403017. | 1 |
| 94305-25223 | PIN, SPRING (2.5X22) Use up to Frame SN 1403016. | ||
| 1 | 90752-ZV4-C20 | SEE PART DETAILS - SUP; PIN, SPRING (3.0X25) Use from Frame SN 1403017. | 1 |
| 1 | 90752-ZV4-C21 | SEE PART DETAILS - PRI; PIN, SPRING (3.0X25) Use from Frame SN 1403017. | 1 |
| 1 | 94305-25253 | PIN, SPRING (2.5X25) Use up to Frame SN 1403016. | 1 |
| 1 | 94305-30253 | PIN, SPRING (3X25) Use up to Frame SN 1403016. | 1 |
