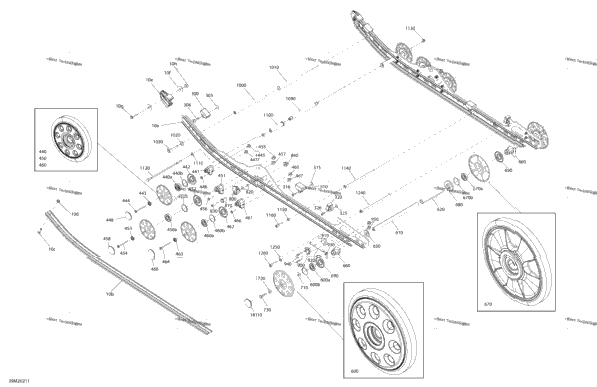

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503193552 | Black, Runner 137" | 1 |
| 1 | 503193556 | Green Runner 137" | 1 |
| 1 | 503191306 | Black, Slider Shoe 137'' | 1 |
| 1 | 208562531 | Phillips Screw M6 X 25 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 503192530 | Slide Protector | 1 |
| 2 | 250200140 | Washer | 2 |
| 1 | 207652544 | Hex. Flange Screw M5 X 25 | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 1 | 503190576 | Rubber Stopper | 1 |
| 1 | 503191273 | Washer | 1 |
| 1 | 293150224 | Pop Rivet 3/16 | 1 |
| 2 | 503195523 | Rubber Stopper Ass'y | 2 |
| 2 | 503191273 | Washer | 2 |
| 2 | 293150224 | Pop Rivet 3/16 | 2 |
| 2 | 503192750 | Rubber Stopper | 2 |
| 2 | 503193376 | Black, Wheel Ass'y 147 mm Included 440 to 440b | 2 |
| 1 | 503190396 | Ball Bearing | 1 |
| 1 | 415129371 | Retaining Ring | 1 |
| 2 | 503193894 | Casted Support | 2 |
| 2 | 503190434 | Labyrinth Seal | 2 |
| 2 | 503191820 | Wheel Cup M6 | 2 |
| 2 | 250000944 | Hex. Flange Screw M6 X 70 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 250000945 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 503192771 | Black, Wheel Cap | 2 |
| 2 | 503193376 | Black, Wheel Ass'y 147 mm Included 450 to 450b | 2 |
| 2 | 503191152 | Black, Wheel Ass'y 147 mm Included 460 to 460b | 2 |
| 2 | 503192766 | Black, Wheel Ass'y 180 mm Included 600 to 600b | 2 |
| 1 | 503190429 | Rear Axle | 1 |
| 1 | 503190430 | Spacer | 1 |
| 1 | 503190432 | Washer | 1 |
| 3 | 503190428 | Rear Wheel Spacer | 3 |
| 1 | 503194050 | Black, Wheel Ass'y 180 mm Included 670 to 670b | 1 |
| 1 | 503190682 | Labyrinth Seal | 1 |
| 3 | 503190434 | Labyrinth Seal | 3 |
| 2 | 503191910 | Washer | 2 |
| 2 | 234201474 | Conical Spring Washer 10 mm | 2 |
| 2 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 | 2 |
| 2 | 503195351 | Spring Support | 2 |
| 2 | 503190754 | Retainer Cushion | 2 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 2 | 205082554 | Socket Screw M8 X 25 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 2 | 503192583 | Tensioner | 2 |
| 2 | 503193250 | Spacer | 2 |
| 2 | 230100054 | Hex Screw M10 x 100 | 2 |
| 2 | 233601466 | Elastic Locking Nut M10 | 2 |
| 4 | 207063054 | Hex. Cap Screw M6 X 30 | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 1 | 503191260 | Axle Strap | 1 |
| 1 | 503192678 | Spacer | 1 |
| 2 | 503192496 | Washer | 2 |
| 2 | 205503554 | Socket Head Screw M10 X 35 | 2 |
| 1 | 503193435 | Pivot Axle | 1 |
| 2 | 503191259 | Center Bushing | 2 |
| 4 | 250200143 | Flat Washer | 4 |
| 1 | 503193227 | Bolt M10 X 251MM | 1 |
| 1 | 233201466 | Flange Elastic Nut M10 | 1 |
