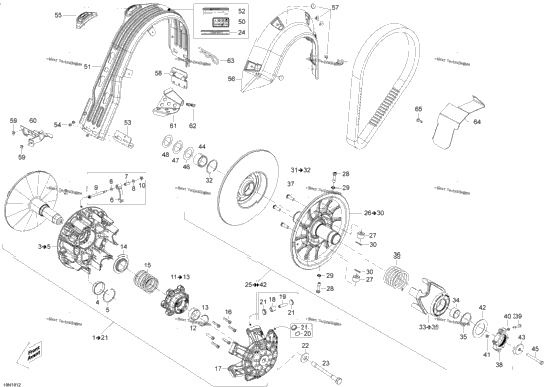

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417224091 | Fixed Flange Ass'y | 1 |
| 1 | 417224044 | Flange Slide Ass'y | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 293370037 | Circlip | 1 |
| 417224035 | Ramp 748 Europe | ||
| 6 | 417223906 | Ramp 740 North America | 6 |
| 12 | 417223660 | Stopper Washer | 12 |
| 6 | 417223694 | Ramp Axle | 6 |
| 6 | 232551414 | Elastic Stop Nut M5 | 6 |
| 1 | 417223650 | Spring Cover Ass'y | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 293370065 | Circlip | 1 |
| 1 | 417223752 | Seat Spring | 1 |
| 1 | 417223745 | Clutch Spring North America | 1 |
| 1 | 417223749 | Spring (Red/Orange) Europe | 1 |
| 6 | 250000580 | Torx Screw M6 X 30 | 6 |
| 1 | 417223865 | Governor Cup Ass'y | 1 |
| 6 | 417223767 | Roller | 6 |
| 6 | 417223257 | Roller Axle | 6 |
| 3 | 293300185 | O-Ring | 3 |
| 12 | 417223919 | Slider Shoe | 12 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300432 | Pulley Drive Bolt | 1 |
| 1 | 516005503 | Decal English | 1 |
| 1 | 417127433 | Fixed Flange Ass'y | 1 |
| 2 | 417127189 | Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400063 | Spring Pin M3 X 30 | 2 |
| 1 | 417127366 | Slider Flange Ass'y | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127411 | Cam Ass'y | 1 |
| 1 | 417127467 | Release Spring | 1 |
| 4 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207588044 | Hex. Cap Screw M8 X 80 | 1 |
| 1 | 417300252 | Spacer | 1 |
| 2 | 417300252 | Spacer | 2 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim | 1 |
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 516003919 | Warning Decal Europe | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 1 | 516006900 | Security Label, Belt Guard | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300363 | Belt Guard Bracket Except Package SWT | 1 |
| 1 | 417300413 | Belt Guard Bracket Package SWT | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 417300364 | Belt Guard Bracket | 1 |
| 1 | 518325626 | Brake Hose Cover Except Package SWT | 1 |
| 1 | 518327035 | Brake Hose Cover Package SWT | 1 |
| 2 | 293150163 | Rivet Hucklok | 2 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300468 | Air Duct North America | 1 |
| 1 | 605636003 | Clinch Nut M6 Hexsert North America | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 North America | 1 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm Europe | 1 |
