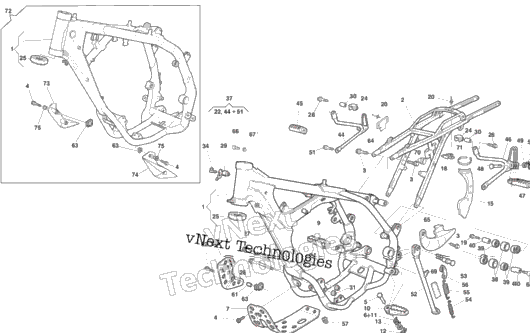

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8000H0231 | FRAME TE mode/SMR model | ||
| 8000H0186 | FRAME TC model/TXC model | ||
| 8000B0214 | SUB FRAME | ||
| 800069056 | SCREW TE M8X1.25X20 CH12 | ||
| 800060898 | SCREW TTEI M6X1.00X15 Not for SMR/To issue | ||
| 800073140 | PIN, CLEVIS | ||
| 800096907 | SPRING, FOOTREST, LH | ||
| 8000B0157 | GUARD ENGINE To Issue | ||
| 80A089953 | FOOTREST, FRONT RH | ||
| 80A089962 | FOOTREST, FRONT LH | ||
| 800096908 | SPRING, FOOTREST, RH | ||
| 64N120068 | SPLIT PIN 18X1.8 | ||
| 8A0001815 | WASHER 16X10X1 | ||
| 80A0B0245 | COVER PIVOT LH M.F.GRAYSTONE | ||
| 800069150 | BRACKET, SEAT | ||
| 800062796 | SCREW TEF M8X1.25X40 CH12 | ||
| 800033373 | RIVET 3.3X14 | ||
| 8000A7237 | U-BOLT TE mode/SMR model | ||
| 800087243 | CONICAL ROLLERS BEARING 29-48- | ||
| 8G0073458 | SCREW M8X150 | ||
| 800043391 | LOCK, STEERING TE mode/SMR model | ||
| 800024350 | SPACER 18X8.5X19 | ||
| 800043928 | SELF LOCKING NUT M8X1.25 | ||
| 800035531 | KEY, BRANK TE mode/SMR model | ||
| 8000B0152 | FOOTREST BRACKET KIT To Issue/TE mode/SMR model | ||
| 8AA059433 | ROLLER, CHAIN TENSIONER | ||
| 4 | 800063312 | BEARING, RADIAL BALL 608 2RS | 4 |
| 8A0059434 | SPACER | ||
| 8000B0156 | FOOTREST ASSY PILLION RH To Issue/TE mode/SMR model | ||
| 800066652 | FOOTREST, REAR RH To Issue/TE mode/SMR model | ||
| 8000B0155 | STAY RR STEP LH P.SILVER To Issue/TE mode/SMR model | ||
| 800066651 | FOOTREST, REAR LH To Issue/TE mode/SMR model | ||
| 800041459 | SCREW To Issue/TE mode/SMR model | ||
| 62N115504 | WASHER 6.4X12X1 To Issue/TE mode/SMR model | ||
| 64N120048 | PIN, COTTER 1.3X12 To Issue/TE mode/SMR model | ||
| 800062732 | SCREW TEF M8X1.25X25 CH12 To Issue/TE mode/SMR model | ||
| 8000B0499 | SIDE STAND TE model | ||
| 8A00B0499 | SIDE STAND SMR mode | ||
| 800097976 | SCREW M8X25 MM TE mode/SMR model | ||
| 8000A0268 | SPRING, INNER TE mode/SMR model | ||
| 8000A0269 | SPRING SIDE STAND OUTER TE mode/SMR model | ||
| 8000A0267 | PLATE TE mode/SMR model | ||
| 800046893 | CLIP NUT M6 Not for SMR/To issue | ||
| 8000A1427 | GUARD. RH CRANKCASE Not for SMR/To issue | ||
| 8A0067207 | SPACER Not for SMR/To issue | ||
| 800062730 | SCREW TE M6X1X30 CH8 Not for SMR/To issue | ||
| 8000A6062 | PLATE | ||
| 8000B1747 | SHIELD, HEAT To issue | ||
| 8E0061121 | SCREW M8X30 | ||
| 800017810 | NUT M8X1.25 | ||
| 60N102559 | SCREW M8X40 | ||
| 8A0094356 | Pad | ||
| 8000B0841 | PLUG | ||
| 800056444 | CLAMP 188 MM | ||
| 8000H0862 | FRAME KIT TE mode | ||
| 8000H0863 | FRAME KIT TC model/TXC model | ||
| 8000H0188 | GUARD. RH CRANKCASE TE mode/TC model/TXC model | ||
| 8000H0187 | GUARD, FRONT LH TE mode/TC model/TXC model | ||
| 8000H0822 | BUSH TE mode/TC model/TXC model |
