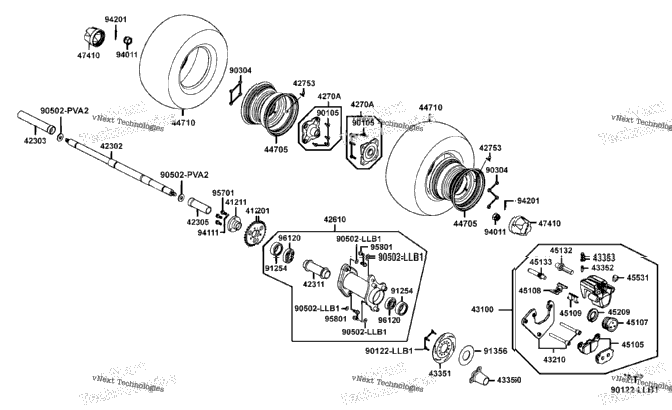

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 41201-PWA6-900 | SPRKT FINAL DRIVEN | 1 |
| 1 | 41211-PVA2-900 | HOLDER SPROCKET | 1 |
| 1 | 42302-PVA2-900 | SHAFT RR WHEEL | 1 |
| 1 | 42303-LBD4-900 | SPACER RR WHEEL R | 1 |
| 1 | 42305-LBD4-900 | SPACER RR WHEEL L | 1 |
| 1 | 42311-LBD4-800 | COLLAR RR HUB | 1 |
| 1 | 42610-LBD4-800-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for RR338SA, HUB ASSY REAR | 1 |
| 1 | 42610-LBD4-800-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for YR110SA, HUB ASSY REAR | 1 |
| 1 | 42610-LBD4-800-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for NH195SA, HUB ASSY REAR | 1 |
| 1 | 42610-LBD4-800-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for GG146SA, HUB ASSY REAR | 1 |
| 1 | 42610-LBD4-800-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for PB089SA, HUB ASSY REAR | 1 |
| 2 | 44705-LBD3-900-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for RR338SA, RIM COMP RR WHEEL | 2 |
| 2 | 44705-LBD3-900-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for YR110SA, RIM COMP RR WHEEL | 2 |
| 2 | 44705-LBD3-900-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for NH195SA, RIM COMP RR WHEEL | 2 |
| 2 | 44705-LBD3-900-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for GG146SA, RIM COMP RR WHEEL | 2 |
| 2 | 44705-LBD3-900-NJS | (NJS) SILVER METALLIC, GLOSS PAINTED STEEL for PB089SA, RIM COMP RR WHEEL | 2 |
| 2 | 4270A-PWA6-900 | CONNECTOR ASSY RR | 2 |
| 2 | 44710-LBD3-900 | TIRE ASSY RR | 2 |
| 2 | 42753-0A01-900 | VALVE RIM (TR412) | 2 |
| 1 | 43100-LLB1-800-nja | CALIPER ASSY RR | 1 |
| 1 | 43210-LLB1-305 | BRACKET RR | 1 |
| 1 | 43350-PVA2-900 | BRACKET BRAKE DISK | 1 |
| 1 | 43351-KEBE-900 | DISK RR BRAKE | 1 |
| 1 | 43352-5H68-004 | BLELDER | 1 |
| 1 | 43353-4A61-77A | CAP BLEEDER | 1 |
| 1 | 45105-KFA6-305 | PAD COMP | 1 |
| 1 | 45107-KFA6-900 | PISTON | 1 |
| 1 | 45108-KFA6-900 | SPRING PAD | 1 |
| 1 | 45109-KFA6-900 | DUST SEAL | 1 |
| 1 | 45132-KFA6-900 | BUSH BOOT PIN | 1 |
| 1 | 45133-KFA6-900 | BOOT B | 1 |
| 1 | 45209-KFA6-900 | SEAL PISTON | 1 |
| 1 | 45531-GAR1-951 | PLUG | 1 |
| 2 | 47410-LEG2-900 | CAP WHEEL SHAFT | 2 |
| 8 | 90105-LBD4-900 | BOLT CONNECTOR | 8 |
| 90112-LBD4-800-06 | BOLT DISK | ||
| 2 | 90122-LLB1-800-06 | BOLT FLANGE 8*28 | 2 |
| 8 | 90304-LBD4-900 | NUT U FLANGE 10MM | 8 |
| 2 | 90502-PVA2-900 | WASHER 14MM | 2 |
| 4 | 90502-LLB1-900 | WASHER 12.2*28*4 | 4 |
| 2 | 91254-LBD4-800 | SEAL DUST | 2 |
| 1 | 91356-PVA2-900 | O-RING 30MM | 1 |
| 2 | 94011-LLB1-900 | NUT FLANGE CASTLE 14MM | 2 |
| 3 | 94111-08800 | WASHER SPG 8MM | 3 |
| 2 | 94201-30300 | PIN SPLIT 3*25 | 2 |
| 3 | 95701-08020-06 | BOLT FLANGE 8*20 | 3 |
| 4 | 95801-LLB1-900-06 | BOLT FLANGE 12*25 | 4 |
| 2 | 96120-60060-10 | BEARING BALL RADIAL 6006 | 2 |
