Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

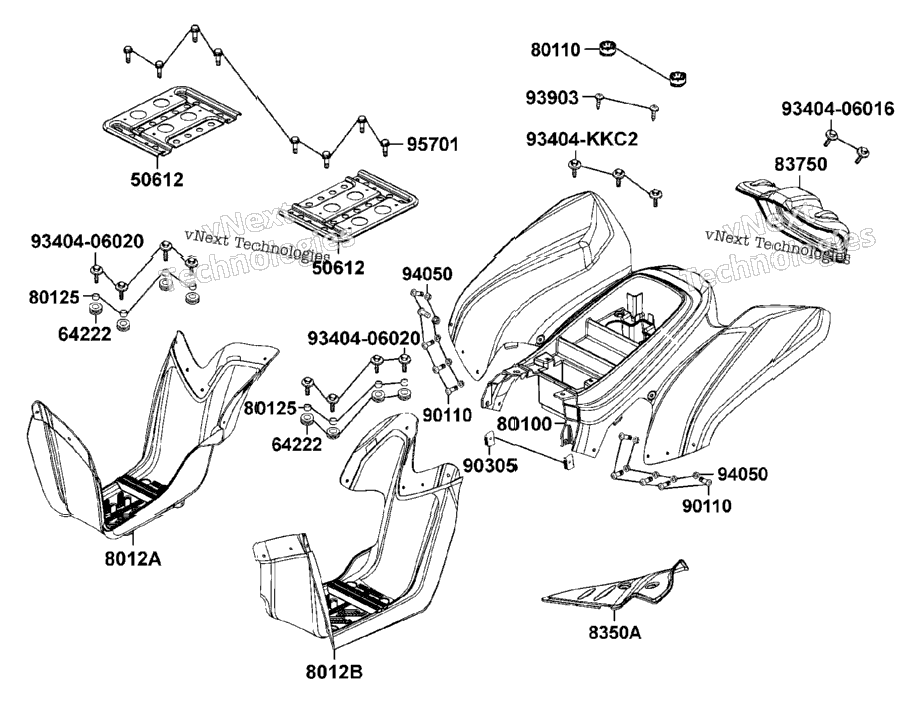

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 50612-LBD4-900 | RNFCT FLOOR | 2 |
| 8 | 64222-LLJ3-E00 | RUBBER WIND SCREEN | 8 |
| 1 | 80100-LBD4-900-C3R | FENDER REAR BLUE | 1 |
| 1 | 80100-LBD4-900-C3R | FENDER REAR BLUE SEE PART# 12X0100272 | 1 |
| 1 | 80100-LBD4-900-E4R | FENDER REAR RED SEE PART# 13X0100285 | 1 |
| 1 | 80100-LBD4-900-E4R | FENDER REAR RED | 1 |
| 1 | 80100-LBD4-900-YRR | FENDER REAR YELLOW | 1 |
| 2 | 80110-LBA7-900 | RUBBER REAR FENDER | 2 |
| 1 | 8012A-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for RR338SA, MUDGUARD ASSY R FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012A-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for YR110SA, MUDGUARD ASSY R FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012A-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for NH193SA, MUDGUARD ASSY R FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012A-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for GG146SA, MUDGUARD ASSY R FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012A-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for PB089SA, MUDGUARD ASSY R FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012B-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for RR338SA, MUDGUARD ASSY L FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012B-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for YR110SA, MUDGUARD ASSY L FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012B-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for NH193SA, MUDGUARD ASSY L FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012B-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for GG146SA, MUDGUARD ASSY L FLOOR must add color code in the end before ordering parts. | 1 |
| 1 | 8012B-LBD4-900-N1R | (N1R) BLACK, NON GLOSS PLASTIC for PB089SA, MUDGUARD ASSY L FLOOR must add color code in the end before ordering parts. | 1 |
| 4 | 80125-LBD4-900 | COLLAR FLOOR | 4 |
| 1 | 8350A-LBD4-900 | COVER ASSY SIDE | 1 |
| 83750-LBD4-900-E4R | (E4R) RED, SEMI GLOSS ATV PLASTIC for RR338SA, COVER RR CENTER must add color code in the end before ordering parts. | ||
| 83750-LBD4-900-YRR | (YRR) YELLOW , SEMI GLOSS ATV PLASTIC for YR110SA, COVER RR CENTER must add color code in the end before ordering parts. | ||
| 83750-LBD4-900-C3R | (C3R) BLUE, SEMI GLOSS ATV PLASTIC for PB089SA, COVER RR CENTER must add color code in the end before ordering parts. | ||
| 10 | 90110-LLB1-800 | SCREW SPECIAL 6*16 | 10 |
| 90305-GK8-0010 | NUT CLIP 6MM | ||
| 2 | 93404-06016-07 | BOLT WASHER 6*16 | 2 |
| 8 | 93404-06020-07 | BOLT WASHER 6*20 | 8 |
| 3 | 93404-KKC2-900 | BOLT-WASH 6*16 | 3 |
| 2 | 93903-35380 | SCREW TAPPING 5*16 | 2 |
| 10 | 94050-06080 | NUT FLANGE 6MM | 10 |
| 8 | 95701-08016-07 | BOLT FLANGE 8*16 | 8 |
