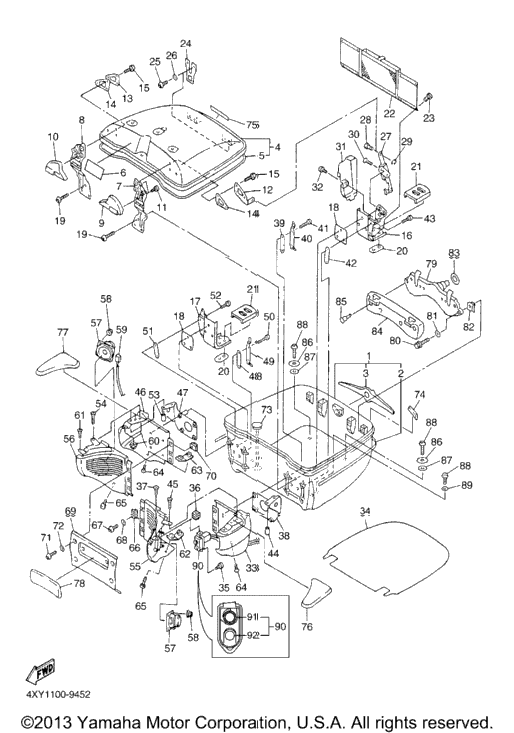

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4XY-W2846-00-2X | Travel Trank Lower Set VRC7/DRC2 | ||
| 4XY-2840H-20-00 | . Graphic Set, Travel Trunk | ||
| 1 | 4XY-28445-00-00 | Emblem | 1 |
| 4XY-W2847-00-P2 | Travel Trank Upper Set VRC7 | ||
| 1 | 4XY-28428-00-00 | . Seal 1 | 1 |
| 4XY-2179V-10-00 | Plate, Epa 1 (Non California) | ||
| 4XY-2179R-10-00 | Plate, Epa 2 (California) | ||
| 1 | 4XY-2845E-01-00 | Hinge 2 | 1 |
| 1 | 4XY-2849E-01-00 | Hinge 4 | 1 |
| 4XY-2846K-00-P2 | Cover, Hinge 1 VRC7 | ||
| 4XY-2846L-00-P2 | Cover, Hinge 2 VRC7 | ||
| 4 | 97707-40010-00 | Screw, Tapping | 4 |
| 1 | 4XY-28487-00-00 | Plate 2 | 1 |
| 1 | 4XY-28497-00-00 | Plate 3 | 1 |
| 2 | 4XY-28485-00-00 | Plate, Rubber 3 | 2 |
| 6 | 92017-05014-00 | Bolt, Button Head | 6 |
| 1 | 4XY-28486-01-00 | Bracket 5 | 1 |
| 1 | 4XY-28496-01-00 | Bracket 6 | 1 |
| 2 | 4XY-28484-00-00 | Plate, Rubber 2 | 2 |
| 6 | 92017-05020-00 | Bolt, Button Head | 6 |
| 2 | 4XY-28483-00-00 | Plate, Rubber 1 | 2 |
| 2 | 4XY-2848M-00-00 | Seat 4 | 2 |
| 1 | 4XY-2848L-00-00 | Seat 3 | 1 |
| 8 | 90269-05039-00 | Rivet | 8 |
| 2 | 4XY-28488-00-00 | Hook | 2 |
| 4 | 92017-05008-00 | Bolt, Button Head | 4 |
| 4 | 90201-05725-00 | Washer, Plate | 4 |
| 1 | 4XY-2845L-01-00 | Stopper, Open | 1 |
| 1 | 4XY-2842L-00-00 | Pin, Stopper | 1 |
| 1 | 99001-04600-00 | Circlip | 1 |
| 2 | 98707-04010-00 | Screw, Flat Head | 2 |
| 1 | 4XY-2843F-00-00 | Cover Assy | 1 |
| 1 | 92017-05010-00 | Bolt, Button Head | 1 |
| 4XY-8816E-01-P2 | Base, Remocon. VRC7 | ||
| 1 | 4XY-2848H-00-00 | Seat | 1 |
| 1 | 97707-40010-00 | Screw, Tapping | 1 |
| 1 | 90183-05024-00 | Nut, Spring | 1 |
| 1 | 98707-05014-00 | Screw, Flat Head | 1 |
| 1 | 4XY-28426-00-00 | Bracket 1 | 1 |
| 1 | 4XY-2848J-00-00 | Plate, Rubber 8 | 1 |
| 1 | 4XY-2841R-00-00 | Plate, Bottom | 1 |
| 2 | 92017-06030-00 | Bolt, Button Head | 2 |
| 1 | 4XY-2847J-00-00 | Plate, Rubber 7 | 1 |
| 2 | 92017-05014-00 | Bolt, Button Head | 2 |
| 2 | 90179-05523-00 | Nut | 2 |
| 2 | 98707-05020-00 | Screw, Flat Head | 2 |
| 4XY-2841L-01-P2 | Body VRC7 | ||
| 1 | 4XY-28436-00-00 | Bracket 2 | 1 |
| 4XY-88165-01-P2 | Grille, Speaker 1 VRC7 | ||
| 4XY-88175-01-P2 | Grille, Speaker 2 VRC7 | ||
| 2 | 4XY-88161-00-00 | Speaker 1 | 2 |
| 8 | 95707-05500-00 | Nut, Flange | 8 |
| 1 | 4XY-88176-00-00 | Cord | 1 |
| 1 | 98707-05016-00 | Screw, Flat Head | 1 |
| 1 | 4XY-2846H-01-00 | Plate, 4 | 1 |
| 1 | 4XY-28417-01-00 | Plate | 1 |
| 2 | 90152-05009-00 | Screw, Countersunk | 2 |
| 2 | 90154-05064-00 | Screw, Binding | 2 |
| 2 | 90183-05024-00 | Nut, Spring | 2 |
| 2 | 98507-05012-00 | .Screw, Pan Head | 2 |
| 2 | 92907-05600-00 | Washer, Plate | 2 |
| 4XY-2844J-00-P2 | Cover 4 VRC7 | ||
| 4 | 90183-05024-00 | Nut, Spring | 4 |
| 4 | 92014-05014-00 | Bolt, Button Head | 4 |
| 4 | 90202-05088-00 | Washer, Plate | 4 |
| 1 | 90338-24260-00 | Plug | 1 |
| 2 | 1JK-21268-00-00 | Seal | 2 |
| 1 | 99247-00080-00 | Emblem, Yamaha | 1 |
| 1 | 4XY-2848N-00-00 | Seat 5 | 1 |
| 1 | 4XY-2848P-00-00 | Seat 6 | 1 |
| 1 | 4XY-2848R-00-00 | Seat 7 | 1 |
| 1 | 4XY-W2841-00-00 | Lock Assy 1 | 1 |
| 4 | 97007-05020-00 | Bolt | 4 |
| 4 | 92907-05600-00 | Washer, Plate | 4 |
| 1 | 4KN-2475M-00-00 | Seal | 1 |
| 1 | 4XY-28493-00-00 | Cover Lock Assy 2 | 1 |
| 4 | 90269-06001-00 | Rivet | 4 |
| 2 | 90201-065G8-00 | Washer, Plate | 2 |
| 2 | 90202-06058-00 | Washer, Plate | 2 |
| 6 | 92017-06016-00 | Bolt, Button Head | 6 |
| 4 | 92907-06600-00 | Washer, Plate | 4 |
| 1 | 4XY-88169-01-00 | Remote Control 1 | 1 |
| 1 | 4XY-88137-00-00 | . Knob 1 | 1 |
| 1 | 4XY-88157-00-00 | . Button | 1 |
