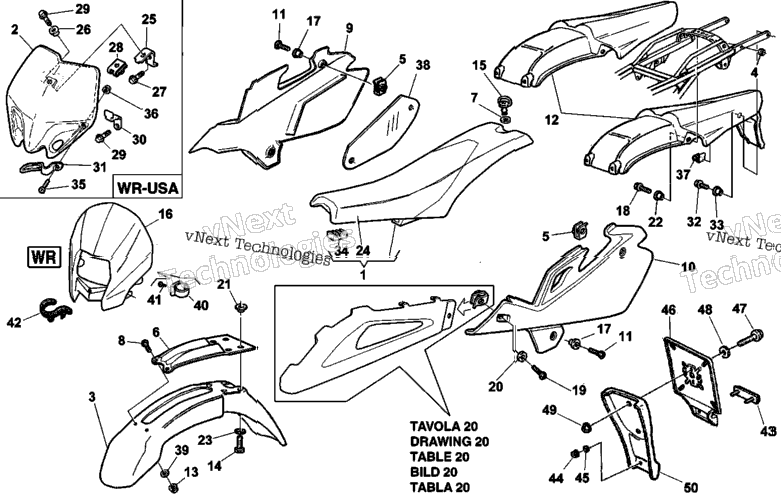

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8000A8334 | SEAT ASSY | ||
| 8A00A8334 | SEAT | ||
| 80B0A4216 | FRONT NUMBER PLATE Only for WR/ U.S.A. | ||
| 80A0A4216 | FRONT NUMBER PLATE Only for WR/ U.S.A. | ||
| 8000A1589 | FRONT FENDER | ||
| 80B0A1589 | FRONT FENDER | ||
| 800061313 | NUTM6X1 | ||
| 800046893 | CLIP NUT M6 | ||
| 80A0A4198 | FRONT MUDGUARD BRACKET | ||
| 800069149 | WASHER 17X9X1 | ||
| 80A065535 | SCREW TCEI M5X0.8X14 | ||
| 8000A9733 | R.H. Panel Colour Code E) Yellow | ||
| 80C0A9733 | COVER, FRAME RH | ||
| 8000A4219 | COVER FRAME LH | ||
| 80C0A4219 | COVER, FRAME LH | ||
| 4 | 800062728 | SCREW TEF M6X1X20 CH8 | 4 |
| 8000A4214 | FENDER, REAR Not for U.S.A. | ||
| 80C0A4214 | FENDER, REAR Not for U.S.A. | ||
| 8000A4200 | FENDER, REAR Only for WR/ U.S.A. | ||
| 80C0A4200 | FENDER, REAR Only for WR/ U.S.A. | ||
| 800061355 | NUT M5X0.8 CH8 | ||
| 800069148 | PIN, SADDLE | ||
| 80B0A4206 | COWLING ASSY Not for U.S.A. | ||
| 80A0A4206 | COWLING ASSY Not for U.S.A. | ||
| 800069429 | BUSH 9X7X4.8 | ||
| 2 | 800062728 | SCREW TEF M6X1X20 CH8 | 2 |
| 800062727 | SCREW TE M6X1X16 CH8 | ||
| 8C0069429 | BUSH | ||
| 800048814 | WASHER 18X6.4X2 | ||
| 8000A8335 | COVER, SEAT | ||
| 80A0A8335 | COVER, SEAT | ||
| 8000A4609 | PLATE Only for WR/ U.S.A. | ||
| 800069429 | BUSH 9X7X4.8 Only for WR/ U.S.A. | ||
| 8E0067997 | SCREW TEF M5X0.8X10 Only for WR/ U.S.A. | ||
| 800046893 | CLIP NUT M6 Only for WR/ U.S.A. | ||
| 800062726 | SCREW TEF M6X1.00X14 CH8 Only for WR/ U.S.A. | ||
| 8000A4607 | BRACKET, COWLING Only for WR/ U.S.A. | ||
| 800062726 | SCREW TEF M6X1.00X14 CH8 Not for U.S.A. | ||
| 800045495 | BUSH Not for U.S.A. | ||
| 86610191A | CUSHION RUBBER | ||
| 1 | 800062728 | SCREW TEF M6X1X20 CH8 Only for WR/ U.S.A. | 1 |
| 800072494 | GUIDE, CABLE Not for U.S.A. | ||
| 8000A4875 | INSULATOR, HEAT | ||
| 62N115548 | WASHER 15X5.3X1 | ||
| 8000A0864 | GUIDE, FRONT BRAKE HOSE | ||
| 8A0037283 | SCREW SELF-TAPPING AB 3.5X9.5 | ||
| 800088602 | RUBBER Not for U.S.A. | ||
| 800073834 | REFLEX REFLECTOR Not for U.S.A. | ||
| 800040717 | NUT FLANGE M4X0.7 Not for U.S.A. | ||
| 62N115547 | WASHER 12X4.3X0.8 Not for U.S.A. | ||
| 800094595 | PLATE HOLDER NUMBER Not for U.S.A. | ||
| 800062727 | SCREW TE M6X1X16 CH8 Not for U.S.A. | ||
| 800056359 | WASHER 16X6.4X1.5 Not for U.S.A. | ||
| 800044240 | SELF LOCKING NUT M6X1 CH10 Not for U.S.A. | ||
| 800094342 | Rear End Upon request/Not for U.S.A. |
