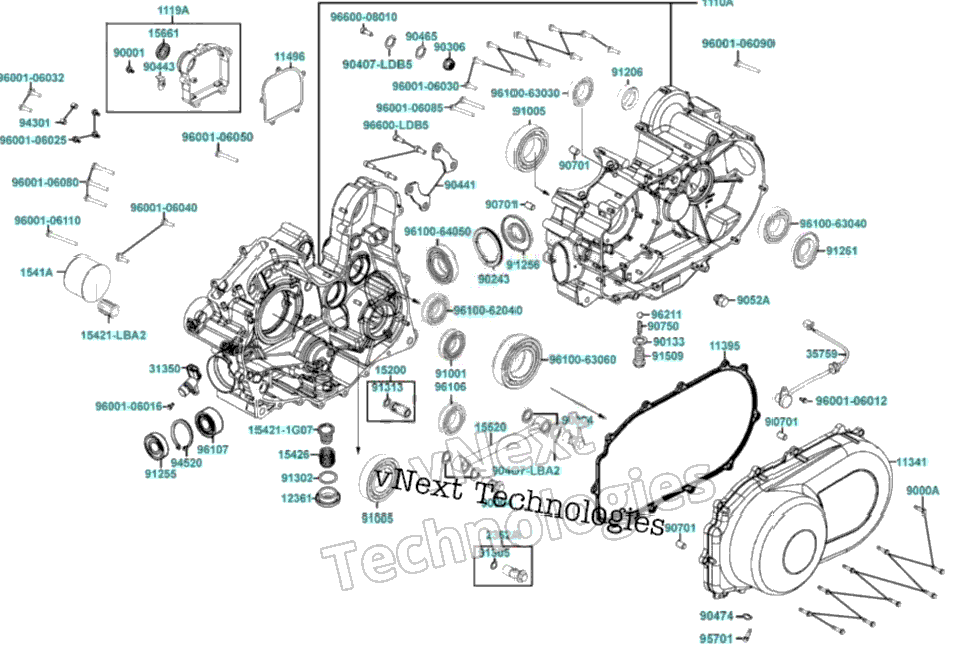

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1110A-LDB5-E00 | CASE ASSY R/L CRANK | 1 |
| 1 | 1119A-LDB5-E00 | CAP ASSY R CASE **(2) C.2006.07.05 | 1 |
| 1 | 11341-LDB5-E00-NEA | COVER LEFT**(2) C.2006.09.07 | 1 |
| 1 | 11395-LDB5-E00 | GASKET L COVER | 1 |
| 1 | 11496-LDB5-E00 | GASKET R CASE CAP **(2) C.2006.08.08 | 1 |
| 12361-GY6-9010 | 12361-GY6-9010 HOLE CAP | ||
| 1 | 15200-KED9-900 | OIL RELIEF VALVE ASSY **(6) C.2004.11.01 | 1 |
| 1 | 1541A-LBA2-E00 | ELEMENT COMP OIL FILTER **(0) C.2005.03 | 1 |
| 15421-107-0000 | SCREEN OIL FILTER | ||
| 1 | 15421-LBA2-E00 | BOLT OIL FILTER **(1) C.2005.12.05 | 1 |
| 15426-GE1-9200 | SPG OIL FILTER SCREEN | ||
| 1 | 15520-LDB5-E00 | PIPE COMP OIL **(0) C.2006.06.01 | 1 |
| 1 | 15661-LBA7-900 | FINDER OIL LEVEL **(0) C.2005.05.31 | 1 |
| 1 | 2362A-LDB5-E00 | BOLT ASSY PARK **(0) C.2006.09.07 | 1 |
| 31350-LDB5-E00 | SENSOR SPEED **E0A C.P.N. | ||
| 1 | 35759-LDB5-E00 | SW ASSY GEAR CHANGE **(2) C.2006.09.07 | 1 |
| 1 | 90001-GFY6-901 | SOCKET BOLT 6*10 | 1 |
| 2 | 90004-LBA2-E00 | BOLT B OIL PASS **(0) C.2005.06.22 | 2 |
| 9000A-KDT-9000 | BOLT ASSY SPECIAL 6*29.5 | ||
| 1 | 90133-LDB5-E00 | WASHER BOLT SEAT **(0) C.2006.09.07 | 1 |
| 1 | 90243-LDB5-E00 | NUT LOCK 85MM **(0) C.2006.09.07 | 1 |
| 1 | 90306-KLF0-004-SY | NUT FLANGE 12MM | 1 |
| 4 | 90407-LBA2-E00 | SEALING WASHER OIL PIPE **(0) C.2005.03 | 4 |
| 1 | 90407-LDB5-E00 | WASHER THRUST 12*30*1 | 1 |
| 2 | 90441-LDB5-E00 | PLATE BRG HOLD **(2) C.2006.09.07 | 2 |
| 1 | 90443-LDB5-E00 | PLATE FINDER HOLD **(0) C.2006.09.07 | 1 |
| 90465-MC4-0010 | WASHER 8MM | ||
| 1 | 90474-3C33-001 | WASHER 8MM | 1 |
| 1 | 9052A-LDB5-E00 | BOLT ASSY DRAIN PLUG **(0) C.2006.09.07 | 1 |
| 4 | 90701-9E65-001 | PIN DOWEL 10*16 **965-0010 C.2005.03.01 | 4 |
| 1 | 90750-LDB5-E00 | SPRING STOPPER | 1 |
| 1 | 91001-KHV8-004 | BRG BALL 6305 **KV8-0040-H1 C.2005.03.01 | 1 |
| 2 | 91005-LDB5-E00 | BRG BALL RADIAL 6205 JR2 **(0) C.2006.09 | 2 |
| 1 | 91206-LDB5-E00 | OIL SEAL 14*24*7 | 1 |
| 1 | 91255-LDB5-E00 | OIL SEAL 35*67*7 **(0) C.2006.09.07 | 1 |
| 1 | 91256-LDB5-E00 | OIL SEAL 35*90*7 **(0) C.2006.09.07 | 1 |
| 1 | 91261-LDB5-E00 | OIL SEAL 30*72*8 **(1) C.2006.09.07 | 1 |
| 1 | 91302-0A01-021 | O-RING 30.8MM | 1 |
| 1 | 91305-GLE0-001 | O RING 9*1.7 | 1 |
| 1 | 91313-KED9-900 | O RING 15.5*1.5 **(2) C.2005.03.01 | 1 |
| 1 | 91509-LDB5-E00 | BOLT STOPPER **(4) C.2006.09.07 | 1 |
| 2 | 94301-08140 | PIN DOWEL 8*14 | 2 |
| 1 | 94520-65000 | CIR CLIP IN 65 **(0) C.2006.09.07 | 1 |
| 1 | 95701-08012-08 | BOLT FLANGE 8*12 | 1 |
| 1 | 96001-06012-08 | BOLT FLANGE 6*12 | 1 |
| 1 | 96001-06016-08 | BOLT FLANGE SH 6*16 | 1 |
| 3 | 96001-06025-08 | BOLT FLANGE SH 6*25 | 3 |
| 10 | 96001-06030-08 | BOLT FLANGE SH 6*30 | 10 |
| 2 | 96001-06032-08 | BOLT FLANGE SH 6*32 | 2 |
| 2 | 96001-06040-08 | BOLT FLANGE SH 6*40 | 2 |
| 1 | 96001-06050-08 | BOLT FLANGE SH 6*50 | 1 |
| 3 | 96001-06080-08 | BOLT FLANGE 6*80 | 3 |
| 2 | 96001-06085-08 | BOLT FLANGE SH 6*85 | 2 |
| 1 | 96001-06090-08 | BOLT FLANGE SH 6*90 | 1 |
| 1 | 96001-06110-08 | BOLT FLANGE SH 6*110 | 1 |
| 1 | 96100-62040-00 | BEARING BALL RADIAL 6204 | 1 |
| 1 | 96100-63030-00 | BEARING BALL 6303/17*47*14 | 1 |
| 1 | 96100-63040-00 | BRG BALL RADIAL 6304/20*52*15 | 1 |
| 1 | 96100-63060-00 | BEARING BALL RADIAL 6306 | 1 |
| 1 | 96100-64050-00 | BEARING BALL RADIAL 6405 **(0) C.2006.09 | 1 |
| 1 | 96106-LDB5-E00 | BEARING BALL RADIAL 6303Z **(0) C.2006 | 1 |
| 1 | 96107-LDB5-E00 | BEARING BALL RADIAL 62/32 **(0) C.2006 | 1 |
| 1 | 96211-16000 | BALL STEEL 16 **(1) C.2006.09.07 | 1 |
| 1 | 96600-08010-10 | BOLT SOCKET 8*10 **(0) C.97.01.10. | 1 |
| 4 | 96600-LDB5-E00 | SOCKET BOLT 8*20 **(0) C.2006.09.07 | 4 |
