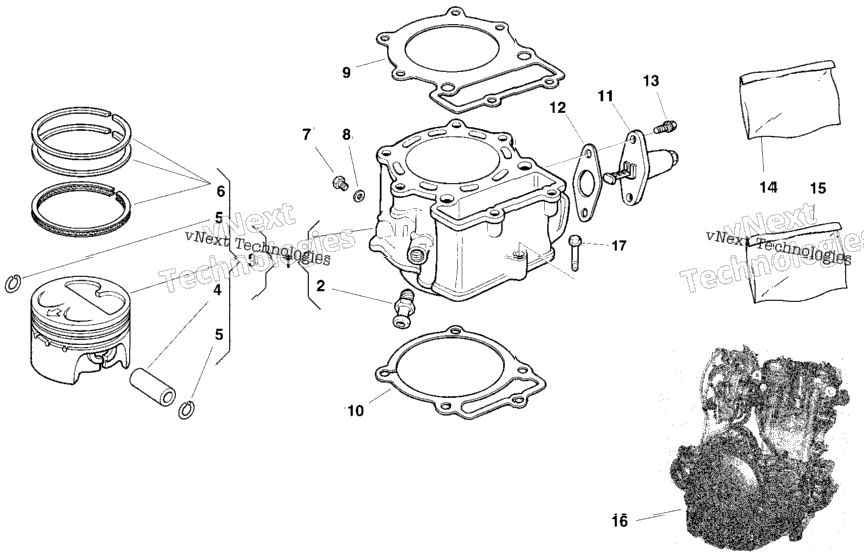

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8000A5456 | CYLINDER ASSY | ||
| 8000H0505 | CYLINDER ASSY | ||
| 8000A5470 | CYLINDER ASSY | ||
| 8000A5483 | CYLINDER ASSY | ||
| 8000A6050 | CYLINDER ASSY | ||
| 8000A9654 | Cylinder, Assy. (Smr-Te 450) In alternative | ||
| 8000B0645 | CYLINDER ASSY. | ||
| 8000A9919 | CYLINDER ASSY In alternative | ||
| 800063885 | JOINT | ||
| 8000A6110 | PISTON ASSY. 76 MM | ||
| 8000H0507 | PISTON ASSY. 83 MM Coupling With cylinder 8000 H0505 | ||
| 8000A5471 | PISTON ASSY. 97 MM | ||
| 8000A6052 | PISTON ASSY. 97 MM Coupling With cylinder 8000 A6050 | ||
| 8000A5484 | PISTON ASSY. 97 MM | ||
| 8000A9650 | PISTON ASSY. 97 MM Coupling with cylinder 8000 A9654 | ||
| 8000A9228 | PISTON ASSY. 97 MM Coupling With cylinder 8000 B0645 | ||
| 8000A9920 | PISTON ASSY. 97 MM Coupling With cylinder 8000 A9919 | ||
| 8000A5459 | PISTON PIN | ||
| 8000A5474 | PISTON PIN | ||
| 8000A9652 | PISTON PIN Coupling With cylinder 8000 A9654/Coupling With cylinder 8000 A9919 | ||
| 8000A0854 | Gudgeon (Te-Smr 450-510) | ||
| 8000A5460 | CLIP, PISTON PIN Coupling With cylinder 8000 A6050/Coupling With cylinder 8000 B0645 | ||
| 8000A3378 | CLIP, PISTON PIN Coupling With cylinder 8000 A6050/Coupling With cylinder 8000 B0645 | ||
| 8000A5475 | CLIP, PISTON PIN Coupling With cylinder 8000 A9654/Coupling With cylinder 8000 A9919 | ||
| 8000A5475 | CLIP, PISTON PIN | ||
| 8000A5923 | PISTON RING SET | ||
| 8000H0510 | PISTON RING SET | ||
| 8000A0855 | PISTON RING SET Coupling With cylinder 8000 A6050/Coupling With cylinder 8000 B0645 | ||
| 8000A0009 | PISTON RING SET Coupling With cylinder 8000 A9919/Coupling With cylinder 8000 A9654 | ||
| 8000A5476 | PISTON RING SET | ||
| 8S0067545 | SCREW TEF M6X1X8 CH8 | ||
| 8A0015960 | WASHER | ||
| 8000A5462 | GASKET CYLINDER HEAD 0.8 MM | ||
| 8000H0504 | GASKET CYLINDER HEAD 0.8 MM | ||
| 8A00A5462 | GASKET CYLINDER HEAD 0.7 MM Upon request | ||
| 8A00H0504 | GASKET CYLINDER HEAD 0.7 MM Upon request | ||
| 8B00A4195 | GASKET CYLINDER HEAD 1.1 MM | ||
| 8B00A5462 | GASKET CYLINDER HEAD 0.9 MM Upon request | ||
| 8B00H0504 | GASKET CYLINDER HEAD 0.9 MM Upon request | ||
| 8E00A4195 | GASKET CYLINDER HEAD 1.0 MM Upon request | ||
| 8H00A4195 | GASKET CYLINDER HEAD 1.2 MM Upon request | ||
| 800099841 | GASKET, CYLINDER BASE | ||
| 1 | 800067744 | TENSIONER, CAM CHAIN | 1 |
| 161535801 | GASCKET TENSIONER ASSY, CAM CH | ||
| 800062727 | SCREW TE M6X1X16 CH8 | ||
| 8000H0941 | GASKET SET, ENGINE Upon request | ||
| 8000H0940 | GASKET SET, ENGINE Upon request | ||
| 8000H0503 | GASKET SET, ENGINE Upon request | ||
| 8000H0943 | GASKET SET, ENGINE Upon request | ||
| 8000H0942 | GASKET SET, ENGINE Upon request | ||
| 8000A5735 | OIL SEAL SET, ENGINE Upon request | ||
| 8000B0373 | OIL SEAL SET ENGINE Upon request | ||
| 8000A5736 | OIL SEAL SET, ENGINE | ||
| 8000B0364 | OIL SEAL SET ENGINE | ||
| 8000H0271 | Engine Assy (Te 250) | ||
| 8000H0274 | Engine Assy (Txc 250) | ||
| 8000H0514 | Engine Assy (Te 310) | ||
| 8000H0238 | Engine Assy (Te 450) | ||
| 8000H0281 | Engine Assy (Txc 450) | ||
| 8000H0279 | Engine Assy (Tc 450) | ||
| 8000H0469 | Engine Assy (Smr 450) | ||
| 8000H0291 | Engine Assy (Te 510) | ||
| 8000H0287 | Engine Assy (Txc 510) | ||
| 8000H0283 | Engine Assy (Tc 510) | ||
| 8000H0470 | Engine Assy (Smr 510) | ||
| 800062730 | SCREW TE M6X1X30 CH8 | ||
| 8E0067545 | SCREW TEF M6X1.00X40 CH8 |
