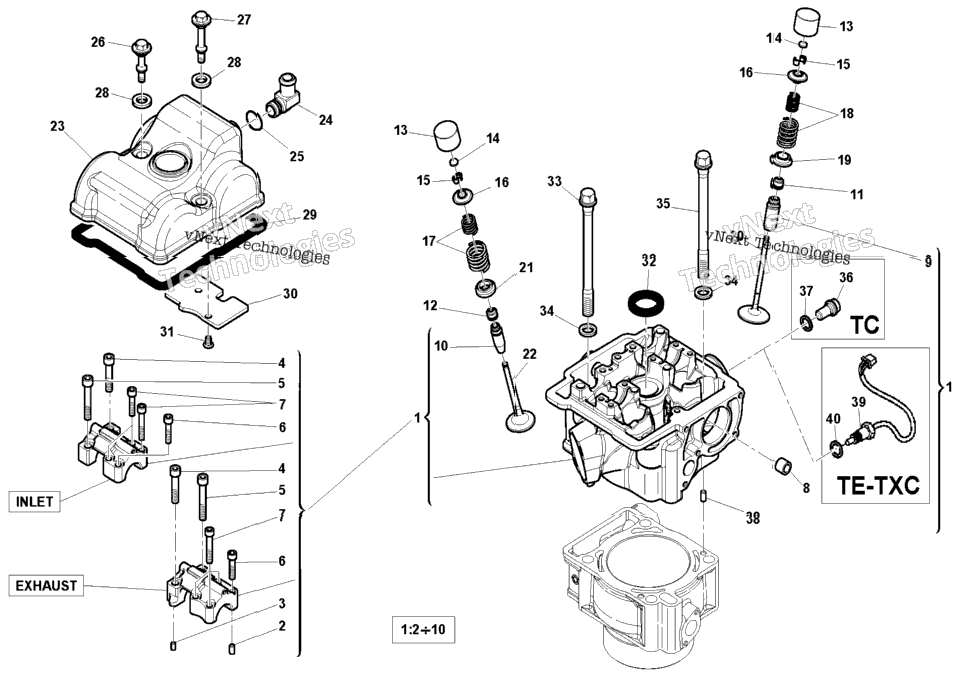

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8000A6340 | HEAD, CYLINDER | ||
| 8000A6350 | PIN | ||
| 8000A6351 | PIN | ||
| 8A00A6978 | SCREW | ||
| 8000A6978 | SCREW | ||
| 8A00A7085 | SCREW | ||
| 8000A7085 | SCREW | ||
| 800031748 | ROLLER CAGE HK0810 | ||
| 8000A6352 | VALVE GUIDE | ||
| 8000A6353 | VALVE GUIDE | ||
| 8000A6356 | SEAL VALVE STEM | ||
| 8000A6553 | LIFTER VALVE | ||
| 8000A6561 | PAD, VALVE ADJUSTING | ||
| 8A00A6561 | PAD, VALVE ADJUSTING | ||
| 8B00A6561 | PAD, VALVE ADJUSTING | ||
| 8C00A6561 | PAD, VALVE ADJUSTING | ||
| 8D00A6561 | PAD, VALVE ADJUSTING | ||
| 8E00A6561 | PAD, VALVE ADJUSTING | ||
| 8F00A6561 | PAD, VALVE ADJUSTING | ||
| 8G00A6561 | PAD, VALVE ADJUSTING | ||
| 8000A2141 | PAD, VALVE ADJUSTING 1.60MM | ||
| 8A00A2141 | PAD, VALVE ADJUSTING 1.65MM | ||
| 8B00A2141 | PAD, VALVE ADJUSTING 1.70MM | ||
| 8C00A2141 | PAD, VALVE ADJUSTING 1.75MM | ||
| 8D00A2141 | PAD, VALVE ADJUSTING 1.80MM | ||
| 8E00A2141 | PAD, VALVE ADJUSTING 1.85MM | ||
| 8F00A2141 | PAD, VALVE ADJUSTING 1.90MM | ||
| 8G00A2141 | PAD, VALVE ADJUSTING 1.95MM | ||
| 8H00A2141 | PAD, VALVE ADJUSTING 2.00MM | ||
| 8J00A2141 | PAD, VALVE ADJUSTING 2.05MM | ||
| 800092433 | COTTER, VALVE | ||
| 8000A6364 | CUP INLET | ||
| 8000A6552 | EXHAUST VALVE SPRING | ||
| 8000A6551 | INTAKE VALVE SPRING | ||
| 8000A6365 | INTAKE VALVE SPRING SEAT | ||
| 8000A6359 | INTAKE VALVE | ||
| 8000A6366 | EXHAUST VALVE SPRING SEAT | ||
| 8000A6362 | EXHAUST VALVE | ||
| 80B0A6556 | COVER, CYLINDER HEAD | ||
| 8000A7039 | PIPE BLOW-BY | ||
| 800001199 | O-RING 11.11X1.78 | ||
| 8000A6560 | SCREW | ||
| 8000A7031 | SCREW | ||
| 800091588 | SEAL WASHER GM2000 M10,7X8,1X1 | ||
| 8000A6562 | GASKET HEAD COVER | ||
| 8000A6559 | BLOW BY PLATE | ||
| ZC0065535 | SCREW | ||
| 8000A6563 | GASKET HEAD COVER | ||
| 8A00A6564 | STUD BOLD CYLINDER HEAD | ||
| 800023374 | WASHER | ||
| 8000A6564 | BOLT CYLINDER HOLDING | ||
| 8000B0385 | PLUG TC model | ||
| 8000A0575 | WASHER TC model | ||
| 8000A6939 | DOWEL PIN D5 | ||
| 1 | 8000A6736 | SENSOR, WATER TEMPERATURE TXC model/ TE model | 1 |
| 8A0023108 | O RING 2037 TXC model/ TE model |
