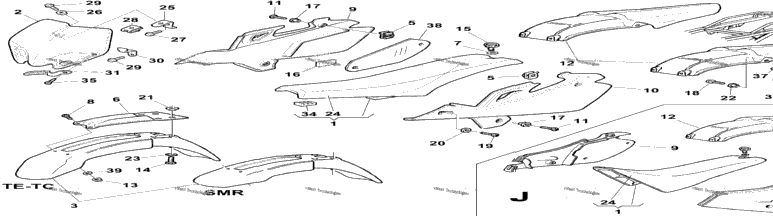

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8000A4306 | Seat (250-450-510) (Color Code E) Blue TE model/TC model | ||
| 8C00A4306 | Seat (450-510) (Color Code B) Black+Blue SMR model | ||
| 8B00A4306 | Seat (450-510) (Color Code E) Blue SMR model | ||
| 8A00A4306 | SEAT SMR model | ||
| 8B00A0050 | Seat (400) (Color Code E) Blue Only for SMR 400 | ||
| 8A00A0050 | Seat (400) (Color Code G) Grey Only for SMR 400 | ||
| 80B0A4216 | FRONT NUMBER PLATE Only for TE/U.S.A/Only for SMR /U.S.A./TC model | ||
| 80A0A4216 | FRONT NUMBER PLATE Only for TE/U.S.A./Only for SMR /U.S.A | ||
| 8000A1589 | FRONT FENDER TE model/TC model | ||
| 80A0A1761 | FENDER, FRONT SHORT SMR model | ||
| 8000A1761 | FRONT FENDER SMR model | ||
| 80C0A1761 | FRONT FENDER SMR model | ||
| 800061313 | NUTM6X1 | ||
| 800046893 | CLIP NUT M6 | ||
| 8000A4198 | FRONT MUDGUARD REIFORCEMENT | ||
| 800069149 | WASHER 17X9X1 | ||
| 80A065535 | SCREW TCEI M5X0.8X14 | ||
| 8000A4220 | COVER FRAME RH | ||
| 80A0A4220 | SIDE COVER, RIGHT SMR model | ||
| 8AB088866 | SIDE COVER, RIGHT Only for SMR 400 | ||
| 8000A4219 | COVER FRAME LH | ||
| 80A0A4219 | SIDE COVER, LEFT SMR model | ||
| 8AB088867 | SIDE COVER, LEFT Only for SMR 400 | ||
| 4 | 800062728 | SCREW TEF M6X1X20 CH8 | 4 |
| 8000A4214 | FENDER, REAR WM | ||
| 80C0A4214 | FENDER, REAR SMR model | ||
| 80A0A4214 | REAR FENDER SMR model | ||
| 8000A4200 | FENDER, REAR Only for TE/U.S.A/Only for SMR /U.S.A./TC model | ||
| 80C0A4200 | FENDER, REAR Only for SMR /U.S.A | ||
| 80A0A4200 | Rear Mudguard (Smr) (Color Code B) Black Only for SMR /U.S.A | ||
| 80A0A0545 | Rear Mudguard (Color Code E) Yellow Only for SMR 400 | ||
| 800061355 | NUT M5X0.8 CH8 | ||
| 800069148 | PIN, SADDLE | ||
| 8A0049475 | TRIM, LOWER | ||
| 800069429 | BUSH 9X7X4.8 | ||
| 2 | 800062728 | SCREW TEF M6X1X20 CH8 | 2 |
| 800062727 | SCREW TE M6X1X16 CH8 | ||
| 8C0069429 | BUSH | ||
| 800048814 | WASHER 18X6.4X2 | ||
| 8000A4305 | COVER, SEAT | ||
| 8AA0A4305 | Saddle Covering (Color Code B) Black+Blue SMR model | ||
| 8A00A4305 | COVER, SEAT SMR model | ||
| 8000A0051 | Saddle Covering (Color Code E) Blue Only for SMR 400 | ||
| 8A00A0051 | COVER, SEAT Only for SMR 400 | ||
| 8000A4609 | PLATE Only for TE/U.S.A/TC model | ||
| 800069429 | BUSH 9X7X4.8 Only for TE/U.S.A/TC model | ||
| 8E0067997 | SCREW TEF M5X0.8X10 Only for TE/U.S.A/TC model | ||
| 800046893 | CLIP NUT M6 Only for TE/U.S.A/TC model | ||
| 800062726 | SCREW TEF M6X1.00X14 CH8 Only for TE/U.S.A/TC model | ||
| 8000A4607 | BRACKET, COWLING Only for TE/U.S.A/TC model | ||
| 8000A4610 | GUIDE, HOSE Only for TE/U.S.A/TC model | ||
| 800062726 | SCREW TEF M6X1.00X14 CH8 TE model/SMR model | ||
| 800045495 | BUSH TE model/SMR model | ||
| 86610191A | CUSHION RUBBER | ||
| 1 | 800062728 | SCREW TEF M6X1X20 CH8 Only for TE/U.S.A./TC model | 1 |
| 800062730 | SCREW TE M6X1X30 CH8 Only for TE/U.S.A | ||
| 800072494 | GUIDE, CABLE Not for TC | ||
| 8000A4875 | INSULATOR, HEAT | ||
| 800095727 | GUARD, HEAT | ||
| 62N115548 | WASHER 15X5.3X1 |
