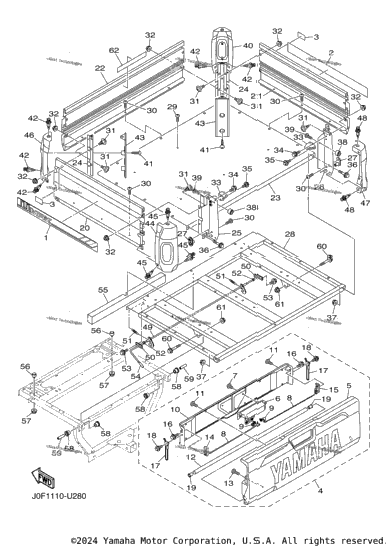

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | J0F-K711A-10-00 | Graphic 1 UR FOR VPBM6 | 1 |
| 1 | J0F-K711A-00-00 | Graphic 1 UR FOR WS7 | 1 |
| 1 | J0F-K711A-20-00 | Graphic 1 UR FOR DNMC | 1 |
| 1 | J0F-K711A-30-00 | Graphic 1 UR FOR DRMV | 1 |
| 1 | J0F-K711A-40-00 | Graphic 1 UR FOR DNLGM3 | 1 |
| 1 | J0F-K711A-50-00 | Graphic 1 UR FOR DOMD | 1 |
| 1 | J0F-K711B-10-00 | Graphic 2 UR FOR VPBM6 | 1 |
| 1 | J0F-K711B-00-00 | Graphic 2 UR FOR WS7 | 1 |
| 1 | J0F-K711B-20-00 | Graphic 2 UR FOR DNMC | 1 |
| 1 | J0F-K711B-50-00 | Graphic 2 UR FOR DOMD | 1 |
| 1 | J0F-K711B-40-00 | Graphic 2 UR FOR DNLGM3 | 1 |
| 1 | J0F-K711B-30-00 | Graphic 2 UR FOR DRMV | 1 |
| 2 | J0G-K7764-00-00 | Label, Warning 4 ENGLISH | 2 |
| 1 | J0G-K810N-00-00 | Rear Storage Lid Comp | 1 |
| 1 | J0G-K8365-01-00 | . .Case | 1 |
| 1 | BG4-F389F-01-00 | . .Handle, Latch | 1 |
| 4 | 90111-06838-00 | . .Bolt,Hex. Socket Button | 4 |
| 2 | J0G-F8478-00-00 | . .Rod | 2 |
| 2 | BG4-F2805-00-00 | . .Clip, Cable | 2 |
| 1 | J0G-F331G-00-00 | . .Cover | 1 |
| 8 | 90111-06173-00 | . Bolt,Hex. Socket Button | 8 |
| 1 | J0G-F463F-00-00 | . .Hinge 2 | 1 |
| 3 | 90149-06846-00 | . .Screw | 3 |
| 1 | BG4-F16A0-00-00 | . .Lock Assy | 1 |
| 1 | BG4-F16B0-00-00 | . .Lock Assy 2 | 1 |
| 2 | 95812-06016-00 | . Bolt, Flange | 2 |
| 2 | J0G-K7195-00-00 | . .Holder, Cable | 2 |
| 2 | 90109-06171-00 | . Bolt | 2 |
| 2 | J0G-K839J-00-00 | . .Sleeve 1 | 2 |
| 1 | J0F-F846C-00-00 | Box, Side 1 | 1 |
| 1 | J0F-F846D-00-00 | Box, Side 2 | 1 |
| 1 | J0G-F845D-00-00 | Box, Front | 1 |
| J0F-F845C-10-00 | Box, Base | ||
| 2 | J0G-K853J-00-00 | Reinf. ,1 | 2 |
| 1 | J0G-K853K-00-00 | Reinf. ,2 | 1 |
| 1 | J0G-K853L-00-00 | Reinf. ,3 | 1 |
| 2 | J0G-F114B-00-00 | Bracket, Hinge | 2 |
| 1 | J0F-K818N-00-00 | Bed, Box | 1 |
| 6 | 90111-06116-00 | Bolt,Hex. Socket Button | 6 |
| 11 | 92014-10020-00 | Bolt, Button Head | 11 |
| 12 | J0G-F2125-00-00 | Bolt | 12 |
| 12 | 95602-08200-00 | Nut, U Flange | 12 |
| 2 | J0G-K8579-00-00 | Striker | 2 |
| 2 | 95812-06016-00 | Bolt, Flange | 2 |
| 2 | 90109-06171-00 | Bolt | 2 |
| 2 | 95802-10050-00 | ..Bolt, Flange | 2 |
| 2 | 95602-10200-00 | Nut, S/L Flange | 2 |
| 2 | J0G-F4747-00-00 | Damper, Seat | 2 |
| 2 | 90111-06173-00 | Bolt,Hex. Socket Button | 2 |
| 1 | J0G-K7392-00-00 | Cover, Luggage Box | 1 |
| 4 | 97707-60130-00 | Screw, Tapping | 4 |
| 6 | 90269-07805-00 | Rivet | 6 |
| 2 | J0G-K7377-00-00 | Cover, Luggage Box 2 | 2 |
| 1 | J0G-F846T-00-00 | Cover, Side Box 1 | 1 |
| 4 | 90269-07805-00 | Rivet | 4 |
| 1 | J0F-K7392-00-00 | Cover, Luggage Box | 1 |
| 1 | J0G-F846U-00-00 | Cover, Side Box 2 | 1 |
| 1 | J0F-K7180-01-00 | Latch Assy | 1 |
| 2 | J0G-K814M-00-00 | Plate, Lever Support | 2 |
| 2 | 90506-16451-00 | Spring, Tension | 2 |
| 2 | 2P5-K7515-00-00 | Bush, Rubber 1 | 2 |
| 4 | 95822-08016-00 | Bolt, Flange | 4 |
| 1 | JJ3-K818M-00-00 | Cap, Protector End 4 | 1 |
| 1 | J0G-K7152-00-00 | Pad 2 | 1 |
| 2 | JU5-K8167-01-00 | Bumper, Rubber 1 | 2 |
| 2 | 95602-08200-00 | Nut, U Flange | 2 |
| 4 | JW6-F2123-00-00 | Bush 1 | 4 |
| 2 | JW6-F1633-00-00 | Collar, 1 | 2 |
| 2 | 95812-08070-00 | .Bolt, Flange | 2 |
| J0F-K7766-00-00 | Label, Warning 6 ENGLISH |
