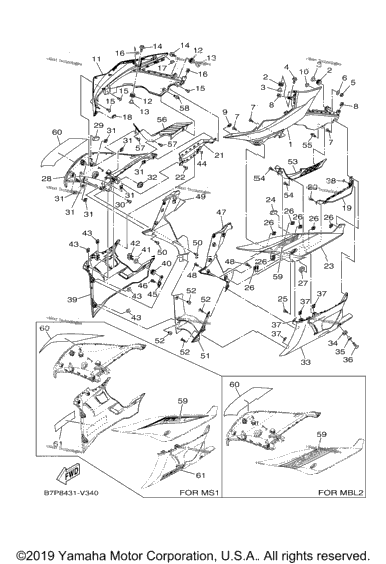

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | BS7-F172G-00-P0 | Panel 3 UR FOR DPBMC | 0 |
| 1 | BS7-F172G-00-P3 | Panel 3 UR SM12 FOR MBL2 | 1 |
| 0 | BS7-F172G-00-P4 | Panel 3 UR DBNM8 FOR MS1 | 0 |
| 2 | 90480-12808-00 | Grommet | 2 |
| 2 | 90387-06899-00 | Collar | 2 |
| 1 | 90119-06810-00 | Bolt, With Washer | 1 |
| 1 | 95702-06500-00 | Nut, Flange | 1 |
| 1 | 90201-06380-00 | Washer Plain | 1 |
| 3 | 97702-50016-00 | Screw,Tapping | 3 |
| 2 | 90183-050A7-00 | Nut, Spring | 2 |
| 1 | 44D-F8379-00-00 | Hook | 1 |
| 1 | BS7-F8415-00-00 | Damper 1 | 1 |
| 0 | BS7-F172H-00-P0 | Panel 4 UR FOR DPBMC | 0 |
| 1 | BS7-F172H-00-P3 | Panel 4 UR SM12 FOR MBL2 | 1 |
| 0 | BS7-F172H-00-P4 | Panel 4 UR DBNM8 FOR MS1 | 0 |
| 2 | 90119-06810-00 | Bolt, With Washer | 2 |
| 1 | BS7-F117V-00-00 | Cover 7 | 1 |
| 1 | 97702-50016-00 | Screw,Tapping | 1 |
| 1 | BS7-F117W-00-00 | Cover 8 | 1 |
| 1 | BS7-F835U-00-P1 | Panel 1 UR FOR MBL2 | 1 |
| 0 | BS7-F835U-00-P3 | Panel 1 UR FOR DPBMC | 0 |
| 0 | BS7-F835U-00-P6 | Panel 1 UR FOR MS1 | 0 |
| 1 | 5YT-24665-00-00 | Damper | 1 |
| 7 | 90183-05807-00 | Nut, Spring | 7 |
| 1 | 90480-01821-00 | Grommet | 1 |
| 1 | BS7-F835V-00-P1 | Panel 2 UR FOR MBL2 | 1 |
| 0 | BS7-F835V-00-P3 | Panel 2 UR FOR DPBMC | 0 |
| 0 | BS7-F835V-00-P6 | Panel 2 UR FOR MS1 | 0 |
| 1 | BS7-F8385-00-P1 | Cover, Under UR FOR MBL2 | 1 |
| 0 | BS7-F8385-00-P3 | Cover, Under UR FOR DPBMC | 0 |
| 0 | BS7-F8385-00-P6 | Cover, Under UR FOR MS1 | 0 |
| 1 | 90480-12808-00 | Grommet | 1 |
| 1 | 90387-06899-00 | Collar | 1 |
| 1 | 90111-06117-00 | Bolt,Hex. Socket Button | 1 |
| 4 | 90183-05807-00 | Nut, Spring | 4 |
| 1 | 90183-05M02-00 | Nut, Spring | 1 |
| 1 | BS7-F8395-00-P1 | Cover, Under 2 UR FOR MBL2 | 1 |
| 0 | BS7-F8395-00-P3 | Cover, Under 2 UR FOR DPBMC | 0 |
| 0 | BS7-F8395-00-P6 | Cover, Under 2 UR FOR MS1 | 0 |
| 1 | BS7-F833E-00-00 | Bracket 8 | 1 |
| 1 | 95022-06012-00 | Bolt, Flange | 1 |
| 1 | BS7-F836K-00-00 | Panel, Inner 1 | 1 |
| 2 | 97707-50016-00 | Screw, Truss Head Tapping | 2 |
| 1 | BS7-F836L-00-00 | Panel, Inner 2 | 1 |
| 1 | BS7-F836M-00-00 | Panel, Inner 3 | 1 |
| 4 | 97707-50016-00 | Screw, Truss Head Tapping | 4 |
| 1 | BS7-F837V-00-00 | Grill, Air Outlet 1 | 1 |
| 2 | 97702-50016-00 | Screw,Tapping | 2 |
| 1 | 90269-06816-00 | Rivet | 1 |
| 1 | BS7-F837W-00-00 | Grill, Air Outlet 2 | 1 |
| 0 | B8P-F8391-10-00 | Graphic 1 UR FOR DPBMC | 0 |
| 1 | B8P-F8391-20-00 | Graphic 1 UR FOR MBL2 | 1 |
| 0 | B8P-F8398-20-00 | Graphic 5 UR FOR MS1 | 0 |
| 0 | B8P-F8392-10-00 | Graphic 2 UR FOR DPBMC | 0 |
| 1 | B8P-F8392-20-00 | Graphic 2 UR FOR MBL2 | 1 |
| 0 | B8P-F8399-20-00 | Graphic 6 UR FOR MS1 | 0 |
| 0 | 1WD-F8328-60-00 | Emblem FOR MS1 | 0 |
