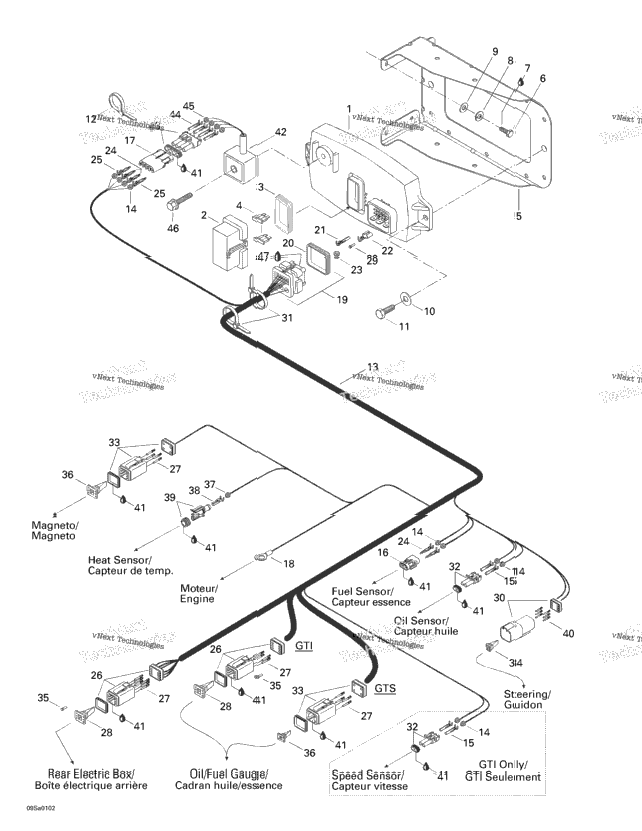

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001496 | ELECTRONIC MODULE ASS'Y Includes 1 - 4. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 1 | 278001644 | BOX SUPPORT ASS?Y | 1 |
| 243042060 | Hex. Plastite Screw M4, 8 X 20 | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 278001645 | Main Harness Ass'y Includes 13 - 40. GTS 5520/5521. | ||
| 278001660 | Main Harness Ass'y GTI 5522/5523. | ||
| 10 | 278000218 | Wire Seal | 10 |
| 4 | 278000223 | Female Terminal | 4 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 278001165 | Open Barrel | ||
| 278000993 | Male Connector, 26 Circuits Includes 19 - 20. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 278000995 | FEMALE TERMINAL | ||
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000996 | WIRE SEAL | ||
| 4 | 278000222 | Male Terminal | 4 |
| 2 | 409004300 | Male Terminal | 2 |
| 2 | 278000736 | Male Connector, 6 Circuits | 2 |
| 13 | 278000632 | Female Terminal | 13 |
| 2 | 278000737 | MALE LOCK, 6 CIRCUITS | 2 |
| 1 | 293000070 | SEALING CAP | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 2 | 278000220 | Male Connector, 2 Circuits | 2 |
| 1 | 278000739 | Male Connector, 4 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 3 | 293000052 | Sealing Cap | 3 |
| 1 | 278000738 | Male Lock, 4 Circuits | 1 |
| 1 | 278001013 | Wire Seal | 1 |
| 1 | 278001014 | Female Terminal | 1 |
| 1 | 278001012 | Male Housing, 1 Circuit | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 278001239 | RECTIFIER ASSY Includes 42 - 45. | 1 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 4 | 409007300 | Female Terminal | 4 |
| 4 | 278000218 | Wire Seal | 4 |
| 211000139 | Hex. Tapping Screw | ||
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
