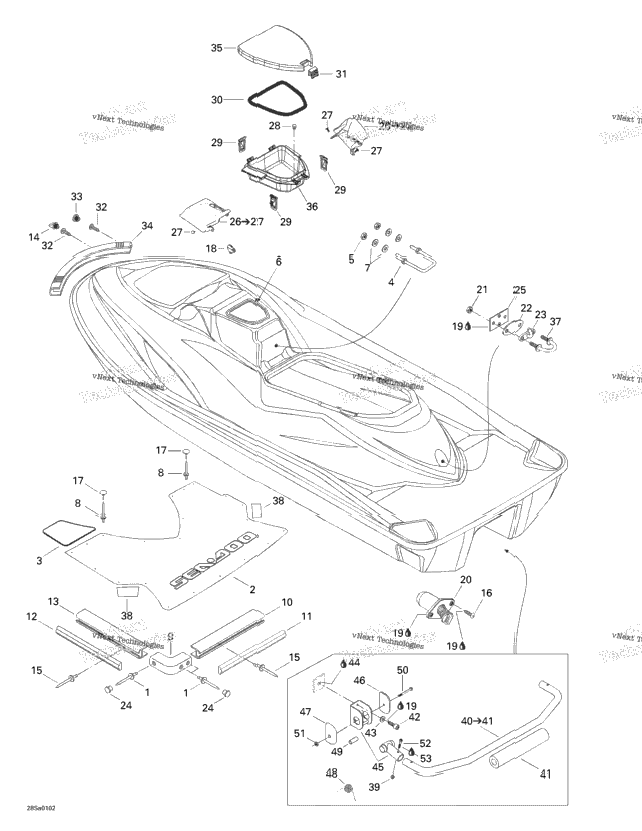

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 291001584 | Rear Carpet, Black | ||
| 291001665 | RH Anti-Skid | ||
| 291001666 | LH Anti-Skid | ||
| 291001527 | Seat Bow-Eye | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 219704377 | Was 293250099 Gasket | 1 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 21 | 293150036 | RIVET_POP 1/8 X ,750 | 21 |
| 2 | 291001505 | Bumper Corner, Black | 2 |
| 1 | 291001483 | Rear Bumper, Black | 1 |
| 291001521 | REAR BUMPER TRIM, BLACK | ||
| 291001520 | SIDE BUMPER TRIM, BLACK | ||
| 2 | 291001606 | Side Bumper, Black | 2 |
| 2 | 291001040 | Bumper Plug, Black | 2 |
| 54 | 293150005 | Pop Rivet 3/16" | 54 |
| 4 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 4 |
| 21 | 293000014 | Black, Snap Cap | 21 |
| 291001730 | Spacer GTS 5520/5521. | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 292000685 | DRAIN ASSY | ||
| 2 | 232581650 | Elastic Stop Nut M8 | 2 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 1 | 291001232 | Hook | 1 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 1 | 291001387 | RETAINER PLATE | 1 |
| 291001649 | RH Grill Ass’Y Includes 26 - 27. | ||
| 291001650 | LH GRILL ASSY | ||
| 2 | 293730010 | Black Dart | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 3 | 269500820 | RETAINER LATCH | 3 |
| 1 | 293250100 | GASKET | 1 |
| 269500719 | LATCH | ||
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 291001519 | Bumper Plug, Black | ||
| 291001035 | NOSE BUMPER, BLACK | ||
| 269500928 | GLOVE BOX DOOR | ||
| 1 | 269500717 | GLOVE BOX | 1 |
| 1 | 292000011 | U-CLAMP | 1 |
| 291001588 | Anti-Skid (White) | ||
| 2 | 232361600 | Nut M6 | 2 |
| 291001691 | Stair Tube Includes 40 - 41. GTI 5522/5523. | ||
| 292000593 | Protector Tube GTI 5522/5523. | ||
| 6 | 250000076 | Socket Head Screw M6 X 25, Scotch Grip GTI 5522/5523. | 6 |
| 6 | 234061600 | Stainless, Flat Washer M6 | 6 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 292000539 | Support Ass’Y | ||
| 292000540 | RH Support Cap | ||
| 292000548 | LH Support Cap | ||
| 2 | 292000541 | RECALL SPRING | 2 |
| XXXX | Not Available As Spare Part - Plastic Tube | ||
| 211000186 | Phillips Screw | ||
| 211100061 | NUT-LOCKING 1/4-20 | ||
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
