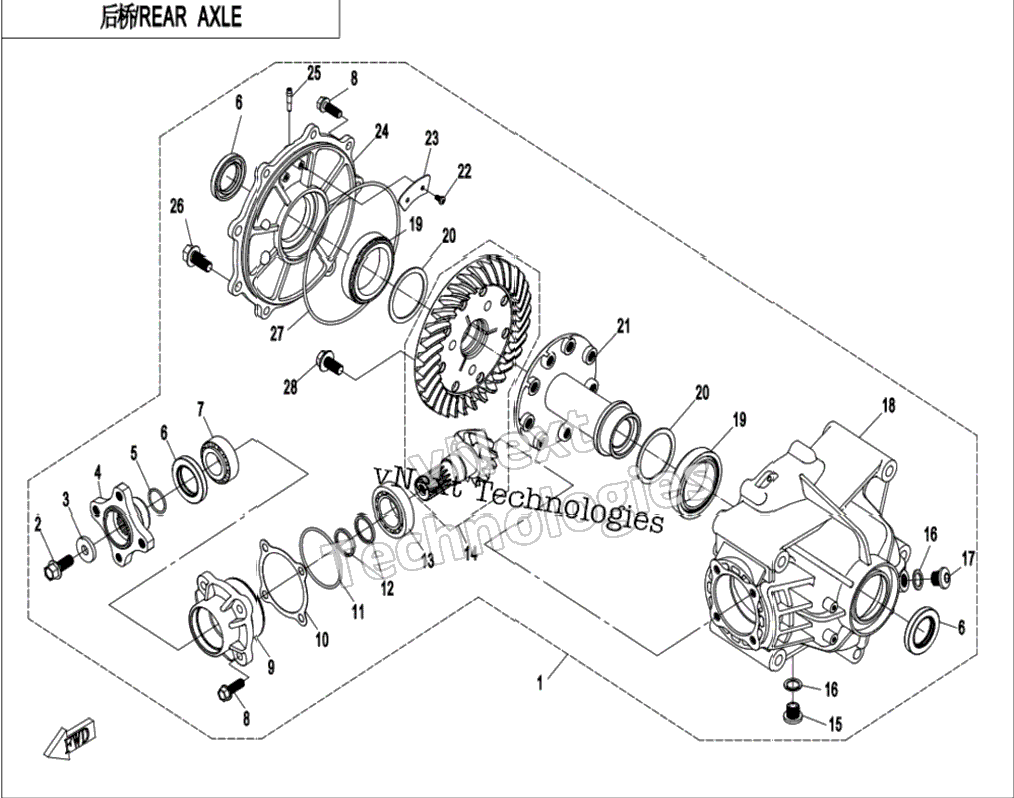

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | Q850-330000-20002 | REAR AXLE | 1 |
| 1 | 0GR0-062203 | BOLTM10×1.25×20 M10x1.25x20 | 1 |
| 1 | 0GR0-062204 | WASHER10×27.5×4 10x27.5x4 | 1 |
| 1 | Q850-331002 | COUPLER | 1 |
| 1 | 0800-062205 | O-RING 25×2 25x2 | 1 |
| 3 | 0800-062204 | OIL SEAL 35×50×7 35x50x7 | 3 |
| 1 | 30409-02500 | BEARING 33005(25x47x17) | 1 |
| 10 | 0JYA-062104 | BOLT M8x28 | 10 |
| 1 | Q830-311002-00001 | BEARING SEAT | 1 |
| 1 | Q830-310023-00100 | ADJUSTING WASHER T=0.20 T=0.20 | 1 |
| 1 | Q830-310023-00200 | ADJUSTING WASHER T=0.30 T=0.30 | 1 |
| 1 | Q830-310006-10000 | O-RING 55x2.5 | 1 |
| 2 | Q830-311003-01400 | ADJUSTING WASHER 32x25.4 T=3.00 T=3.00 | 2 |
| 2 | Q830-311003-00700 | ADJUSTING WASHER 32x25.4 T=2.46 T=2.46 | 2 |
| 2 | Q830-311003-01000 | ADJUSTING WASHER 32x25.4 T=2.60 T=2.60 | 2 |
| 2 | Q830-311003-00200 | ADJUSTING WASHER 32x25.4 T=2.20 T=2.20 | 2 |
| 2 | Q830-311003-00100 | ADJUSTING WASHER 32x25.4 T=2.10 T=2.10 | 2 |
| 2 | Q830-311003-00400 | ADJUSTING WASHER 32x25.4 T=2.40 T=2.40 | 2 |
| 2 | Q830-311003-00600 | ADJUSTING WASHER 32x25.4 T=2.44 T=2.44 | 2 |
| 2 | Q830-311003-01100 | ADJUSTING WASHER 32x25.4 T=2.70 T=2.70 | 2 |
| 2 | Q830-311003-01300 | ADJUSTING WASHER 32x25.4 T=2.90 T=2.90 | 2 |
| 2 | Q830-311003-00300 | ADJUSTING WASHER 32x25.4 T=2.30 T=2.30 | 2 |
| 2 | Q830-311003-00500 | ADJUSTING WASHER 32x25.4 T=2.42 T=2.42 | 2 |
| 2 | Q830-311003-01200 | ADJUSTING WASHER 32x25.4 T=2.80 T=2.80 | 2 |
| 2 | Q830-311003-00800 | ADJUSTING WASHER 32x25.4 T=2.48 T=2.48 | 2 |
| 2 | Q830-311003-00900 | ADJUSTING WASHER 32x25.4 T=2.50 T=2.50 | 2 |
| 1 | 30409-03000 | BEARING 32006(30x55x17) | 1 |
| 1 | Q850-3300A0-00002 | RING AND PINION SET | 1 |
| 1 | 0180-332100 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) M14x1.25x12 | 1 |
| 2 | 0180-011006 | WASHER 14 14 | 2 |
| 1 | 0180-021008-00001 | BOLT M14×1.25×12 M14x1.25x12 | 1 |
| 1 | Q850-330001-00001 | DIFFERENTIAL CASE | 1 |
| 2 | 30409-05000 | BEARING | 2 |
| 2 | Q820-330003-00100 | ADJUSTING WASHER 61x50.5 T=0.10 T=0.10 | 2 |
| 2 | Q820-330003-00900 | ADJUSTING WASHER 61x50.5 T=1.00 T=1.00 | 2 |
| 2 | Q820-330003-00800 | ADJUSTING WASHER 61x50.5 T=0.98 T=0.98 | 2 |
| 2 | Q820-330003-00600 | ADJUSTING WASHER 61x50.5 T=0.94 T=0.94 | 2 |
| 2 | Q820-330003-00400 | ADJUSTING WASHER 61x50.5 T=0.90 T=0.90 | 2 |
| 2 | Q820-330003-00700 | ADJUSTING WASHER 61x50.5 T=0.96 T=0.96 | 2 |
| 2 | Q820-330003-00200 | ADJUSTING WASHER 61x50.5 T=0.30 T=0.30 | 2 |
| 2 | Q820-330003-00300 | ADJUSTING WASHER 61x50.5 T=0.50 T=0.50 | 2 |
| 2 | Q820-330003-00500 | ADJUSTING WASHER 61x50.5 T=0.92 T=0.92 | 2 |
| 1 | Q850-330003-00001 | RING GEAR SPOOL | 1 |
| 2 | 30105-040008410 | CROSS SCREW, M4X8 M4x8 | 2 |
| 1 | Q830-310022 | OIL GUARD | 1 |
| 1 | 0180-311004-0020 | JOINT , BREATHER HOSE | 1 |
| 2 | 30001-102025810 | BOLT M10x1.25x25 | 2 |
| 1 | 0180-334002 | O-RING 151×3 151x3 | 1 |
| 8 | 0181-313100-0010 | BOLT M10x1.25x22 | 8 |
