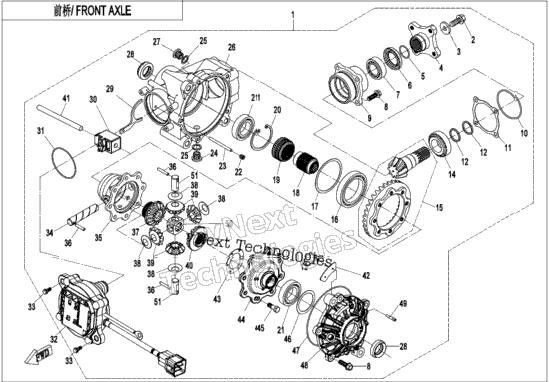

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | Q830-310000-60000 | FRONT GEAR CASE ASSY | 1 |
| 1 | 0GR0-062203 | BOLTM10×1.25×20 M10x1.25x20 | 1 |
| 1 | 0GR0-062204 | WASHER10×27.5×4 10x27.5x4 | 1 |
| 1 | Q850-331002 | COUPLER | 1 |
| 1 | 0800-062205 | O-RING 25×2 25x2 | 1 |
| 1 | 0800-062204 | OIL SEAL 35×50×7 35x50x7 | 1 |
| 1 | 30409-02500 | BEARING 33005(25x47x17) | 1 |
| 9 | 0JYA-062104 | BOLT M8x28 | 9 |
| 1 | Q830-311002-00001 | BEARING SEAT | 1 |
| 1 | Q830-310006-10000 | O-RING 55x2.5 | 1 |
| 1 | Q830-310023-00200 | ADJUSTING WASHER T=0.30 T=0.30 | 1 |
| 1 | Q830-310023-00100 | ADJUSTING WASHER T=0.20 T=0.20 | 1 |
| 2 | Q830-311003-01400 | ADJUSTING WASHER 32x25.4 T=3.00 T=3.00 | 2 |
| 2 | Q830-311003-00100 | ADJUSTING WASHER 32x25.4 T=2.10 T=2.10 | 2 |
| 2 | Q830-311003-00200 | ADJUSTING WASHER 32x25.4 T=2.20 T=2.20 | 2 |
| 2 | Q830-311003-00300 | ADJUSTING WASHER 32x25.4 T=2.30 T=2.30 | 2 |
| 2 | Q830-311003-00400 | ADJUSTING WASHER 32x25.4 T=2.40 T=2.40 | 2 |
| 2 | Q830-311003-00500 | ADJUSTING WASHER 32x25.4 T=2.42 T=2.42 | 2 |
| 2 | Q830-311003-00600 | ADJUSTING WASHER 32x25.4 T=2.44 T=2.44 | 2 |
| 2 | Q830-311003-00700 | ADJUSTING WASHER 32x25.4 T=2.46 T=2.46 | 2 |
| 2 | Q830-311003-00800 | ADJUSTING WASHER 32x25.4 T=2.48 T=2.48 | 2 |
| 2 | Q830-311003-00900 | ADJUSTING WASHER 32x25.4 T=2.50 T=2.50 | 2 |
| 2 | Q830-311003-01000 | ADJUSTING WASHER 32x25.4 T=2.60 T=2.60 | 2 |
| 2 | Q830-311003-01100 | ADJUSTING WASHER 32x25.4 T=2.70 T=2.70 | 2 |
| 2 | Q830-311003-01200 | ADJUSTING WASHER 32x25.4 T=2.80 T=2.80 | 2 |
| 2 | Q830-311003-01300 | ADJUSTING WASHER 32x25.4 T=2.90 T=2.90 | 2 |
| 2 | 30105-040008410 | CROSS SCREW, M4X8 M4x8 | 2 |
| 1 | 30409-03000 | BEARING 32006(30x55x17) | 1 |
| 1 | Q830-3100B0 | RING AND PINION, GEAR SET | 1 |
| 1 | 30400-05500 | BEARING 61911(55x80x13) | 1 |
| 1 | Q830-310015-00600 | ADJUST SHIM 79.5X68 T=1.00 | 1 |
| 1 | Q830-310015-00100 | ADJUST SHIM 79.5X68 T=0.10 | 1 |
| 1 | Q830-310015-00200 | ADJUST SHIM 79.5X68 T=0.20 | 1 |
| 1 | Q830-310015-00300 | ADJUST SHIM 79.5X68 T=0.30 | 1 |
| 1 | Q830-310015-00400 | ADJUST SHIM 79.5X68 T=0.40 | 1 |
| 1 | Q830-310015-00500 | ADJUST SHIM 79.5X68 T=0.50 | 1 |
| 1 | Q830-310014 | DRIVE CLUTCH COLLAR | 1 |
| 1 | Q830-310013 | SPLINE BUSH | 1 |
| 1 | 30800-05505 | RETAINER 55 55 | 1 |
| 2 | 30400-03001 | BEARING 6006 | 2 |
| 1 | 30130-080010810 | SCREW M8x10 | 1 |
| 1 | Q830-310003 | PIN SHAFT | 1 |
| 1 | 0180-332100 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) M14x1.25x12 | 1 |
| 2 | 0180-011006 | WASHER 14 14 | 2 |
| 1 | Q830-310007-20000 | FRONT GEAR CASE | 1 |
| 1 | 0180-021008-00001 | BOLT M14×1.25×12 | 1 |
| 2 | 0180-311001 | OIL SEAL 24X38X8 24x38x8 | 2 |
| 1 | Q830-310005-10001 | FORK | 1 |
| 1 | Q890-310010 | BLOCK ASSY. | 1 |
| 1 | Q830-310012-10000 | O-RING 67.5x2 | 1 |
| 1 | Q890-314000-10000 | FRONT GEAR CASE MOTOR ASSY Kaidi PLUG | 1 |
| 2 | 0010-023008-0010 | BOLT M6×18 M6x18 | 2 |
| 1 | 0180-313002-10000 | GEAR SHAFT(CENTER),DIFF | 1 |
| 1 | Q830-313003-10000 | FRONT CARRIER HOUSING | 1 |
| 3 | 30906-0503000 | PIN 5x30 | 3 |
| 1 | Q830-313004 | GEAR,CV SHAFT | 1 |
| 4 | 0181-313011 | WEARING RING | 4 |
| 4 | 0180-313003-00004 | BEVEL GEAR, DIFFERENTIAL | 4 |
| 1 | 0180-313006-00001 | DRIVEN GEAR,DIFFERENTIAL | 1 |
| 1 | 30913-0300550 | PIN SHAFT | 1 |
| 1 | Q830-310022 | OIL GUARD | 1 |
| 1 | Q800-313005-00100 | SHIM WASHER, T=1.00 t=1.00 | 1 |
| 1 | Q800-313005-00200 | SHIM WASHER, T=1.20 t=1.20 | 1 |
| 1 | Q830-313001-10000 | COUPLER | 1 |
| 8 | 9010-290001 | BOLT M8×1×22 M8x1x22 | 8 |
| 1 | Q830-310009-00600 | ADJUST SHIM 54.5X43 T=1.00 | 1 |
| 1 | Q830-310009-00100 | ADJUST SHIM 54.5X43 T=0.10 | 1 |
| 1 | Q830-310009-00200 | ADJUST SHIM 54.5X43 T=0.20 | 1 |
| 1 | Q830-310009-00300 | ADJUST SHIM 54.5X43 T=0.30 | 1 |
| 1 | Q830-310009-00400 | ADJUST SHIM 54.5X43 T=0.40 | 1 |
| 1 | Q830-310009-00500 | ADJUST SHIM 54.5X43 T=0.50 | 1 |
| 1 | Q830-310011 | O-RING | 1 |
| 1 | Q830-310008-10000 | FRONT GEAR CASE COVER | 1 |
| 1 | 0180-311004-0020 | JOINT , BREATHER HOSE | 1 |
| 1 | Q820-333008 | CROSS BUSHING | 1 |
| 2 | Q800-313001 | PINION GEAR SHAFT | 2 |
