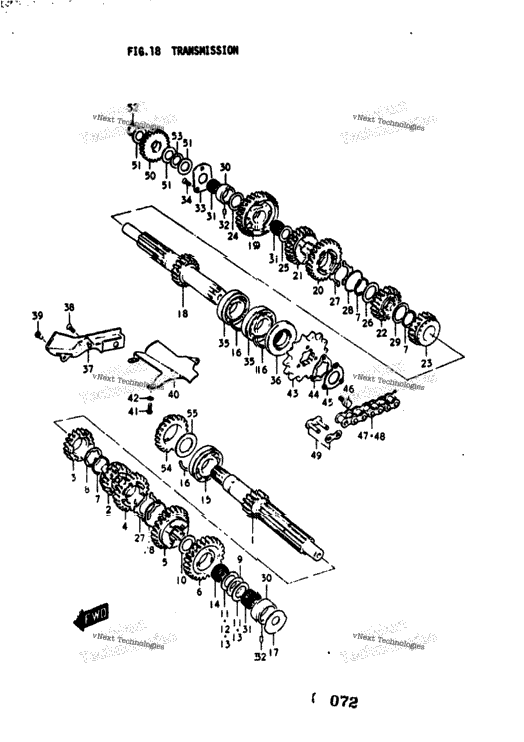

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24121-33000 | COUNTERSHAFT K,L,M,A,B; NT:12 | ||
| 24221-18001 | GEAR, 2ND DRIVE K,L,M,A,B; NT:16 | ||
| 24231-18001 | GEAR, 3RD DRIVE K,L,M,A,B; NT:19 | ||
| 24241-18003 | GEAR, 4TH DRIVE K,L,M,A,B; NT:21 | ||
| 24251-18002 | GEAR, 5TH DRIVE K,L; NT:23 TO 24251-18003 | ||
| 24251-18003 | GEAR, 5TH DRIVE M,A,B; NT:23 | ||
| 24261-18001 | GEAR, 6TH DRIVE K,L; NT:24 TO 24261-18002 | ||
| 24261-18002 | GEAR, 6TH DRIVE M,A,B | ||
| 3 | 09380-25003 | RING,SNAP K,L,M,A,B | 3 |
| 09167-25004 | LOCK WASHER K,L,M | ||
| 1 | 09167-25012 | WASHER,LOCK (25.1X31X1.0) A,B | 1 |
| 1 | 09160-17005 | THRUST WASHER K,L,M,A,B; 17x29x1 | 1 |
| 1 | 09160-17001 | THRUST WASHER K,L; 17x29x1 TO 08211-17301M; 17x29x1 TO 08211-17301 | 1 |
| 1 | 08211-17301 | THRUST WASHER A,B; 17x30x1 | 1 |
| 1 | 09160-21005 | THRUST WASHER AR 4)L,M; 21x30x1 | 1 |
| 1 | 09160-17003 | THRUST WASHER AR 1)L,M; 17x29x1.5 TO 08211-17282 | 1 |
| 09160-17007 | THRUST WASHER AR 2)L,M; 17x29x1.2 | ||
| 1 | 09263-17004 | BEARING K,L,M,A,B; 17x21x9.8 | 1 |
| 09262-25013 | BEARING K,L,M,A,B; 25x52x15 | ||
| 09390-52002 | C RING K,L,M,A,B | ||
| 24741-10000 | RETAINER, COUNTERSHAFT K,L,M,A,B | ||
| 24131-33000 | DRIVESHAFT K,L,M; NT:17 TO 24131-33001 | ||
| 24131-33001 | DRIVESHAFT A,B | ||
| 24311-18000 | GEAR, 1ST DRIVEN K,L,M,A,B; NT:28 | ||
| 24320-18002 | GEAR, 2ND DRIVEN K,L,M,A,B; NT:24 | ||
| 24331-18002 | GEAR, 3RD DRIVEN K,L,M,A,B; NT:21 | ||
| 24341-18003 | GEAR, 4TH DRIVEN K,L,M,A,B; NT:19 | ||
| 24351-18003 | GEAR, 5TH DRIVEN K,L; NT:18 TO 24351-18004 | ||
| 24351-18004 | GEAR, 5TH DRIVEN M,A,B; NT:18 | ||
| 09160-17010 | THRUST WASHER K,L,M,A,B; 17x28x3 | ||
| 1 | 09160-17001 | THRUST WASHER M; 17x29x1 TO 08211-17301 | 1 |
| 09160-25013 | WASHER K,L; 25x35x1 | ||
| 09160-25007 | WASHER M,A,B; 25x35x1.5 | ||
| 09399-22003 | RING K,L,M,A,B | ||
| 09380-38001 | CIRCLIP K,L,M,A,B | ||
| 09160-25003 | THURST WASHER K,L,M; TO 08211-25321 | ||
| 1 | 08211-25321 | THURST WASHER A,B; 25x32x1 | 1 |
| 09300-21001 | BUSHING K,L,M,A,B | ||
| 3 | 09263-17001 | BEARING (17X21X12.8) K,L,M,A,B | 3 |
| 2 | 06211-04063 | PIN K,L,M,A,B | 2 |
| 24751-33000 | RETAINER, DRIVESHAFT K,L,M,A,B | ||
| 3 | 02122-06168 | SCREW K,L,M,A,B | 3 |
| 2 | 08163-62050 | BEARING K,L,M,A,B | 2 |
| 09283-25002 | OIL SEAL K,L,M,A,B | ||
| 24871-33000 | CUP, OIL RESERVIOR K,L,M,A,B | ||
| 1 | 02122-06128 | SCREW K,L,M,A,B | 1 |
| 1 | 02112-06128 | SCREW K,L,M,A,B | 1 |
| 24881-33000 | PLATE, OIL GUIDE K,L,M; TO 24881-33001 | ||
| 24881-33001 | PLATE, OIL GUIDE A,B | ||
| 3 | 02112-05168 | SCREW K,L,M,A,B | 3 |
| 3 | 08321-21058 | LOCK WASHER K,L,M,A,B | 3 |
| 27511-33000 | SPROCKET, ENGINE K,L,M; NT:14 OPT 4:STD | ||
| 27511-33600 | SPROCKET, ENGINE K,L,M,A,B; NT:15 4:OPT | ||
| 27512-33000 | PLATE, ENGINE SPROCKET K,L,M,A,B | ||
| 09167-25008 | PLATE K,L,M,A,B | ||
| 3 | 01112-06128 | BOLT K,L,M,A,B | 3 |
| 27600-33012 | CHAIN ASSY, DRIVE K,L,M,A,B; DID 50HDS OPT 1042 | ||
| 27600-31700 | CHAIN, EXTENTION K,L,M,A,B; DID 50HDS 42 OPT | ||
| 27600-33700 | CHAIN, EXTENTION K,L,M,A,B; RK 50SH 42 OPT | ||
| 27620-31012 | JOINT, CHAIN K,L,M,A,B; DID 50HDS OPT | ||
| 27620-33700 | JOINT, CHAIN K,L,M,A,B; RK 50SH OPT | ||
| 26260-33000 | GEAR, KICK STARTER IDLE K,L,M,A,B; NT:29 | ||
| 3 | 09160-17001 | THRUST WASHER K,L,M; TO 08211-17301 | 3 |
| 3 | 08211-17301 | THRUST WASHER A,B; 17x30x1 | 3 |
| 1 | 09380-17001 | CIRCLIP K,L,M,A,B | 1 |
| 09164-17002 | WASHER K,L,M,A,B | ||
| 26281-33001 | GEAR, KICK STARTER DRIVEN K,L; NT:21 | ||
| 1 | 09160-25009 | WASHER K,L | 1 |
