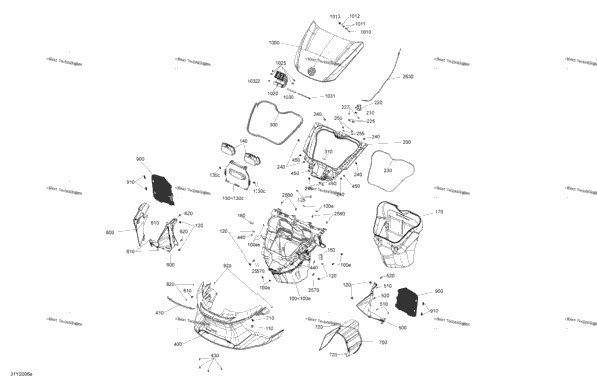

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705012290 | Storage Box Ass'y Includes 100 TO 100e | 1 |
| 8 | 293740028 | Dual Lock Velcro Washer 3/4" | 8 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 8 | 269500725 | M6 Nut Housing Ass'y | 8 |
| 1 | 705004628 | Battery Cover Ass'Y Includes 130 TO 130c | 1 |
| 2 | 293740028 | Dual Lock Velcro Washer 3/4" | 2 |
| 2 | 250000767 | Torx Truss Screw M6 X 12 | 2 |
| 2 | 705011444 | Fuse Cover Ass'y | 2 |
| 1 | 710002858 | Rubber Plug | 1 |
| 1 | 708400166 | Cap | 1 |
| 1 | 708303266 | Storage Box Liner, Soft Package LTD | 1 |
| 1 | 708200875 | Black, Upper Box Support | 1 |
| 1 | 705003911 | Spring | 1 |
| 1 | 705007379 | Latch | 1 |
| 2 | 207663544 | Hex. Flange Screw M6 X 35 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 293250529 | Neoprene Seal 1420MM | 1 |
| 8 | 293150230 | Tuflok Plastic Rivet | 8 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 1 | 219704371 | Was 293250047 Neoprene Seal ( 3 M/pac ) | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 708200872 | Deep Black, Front Bumper | 1 |
| 1 | 708200921 | Deep Black, Upper Bumper Trim Package STD | 1 |
| 1 | 708200921 | Deep Black, Upper Bumper Trim Package LTD, DARK | 1 |
| 1 | 708200933 | Chrome, Upper Bumper Trim Package LTD, CHROME | 1 |
| 4 | 250000760 | Torx Screw Truss Head K50X20 T20 | 4 |
| 2 | 250000755 | Torx Screw M6 X 16 | 2 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 1 | 708200879 | Deep Black, LH Inner Air Scoop | 1 |
| 3 | 250000577 | Torx Truss Screw K40 X 12 | 3 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 1 | 708200880 | Deep Black, RH Inner Air Scoop | 1 |
| 1 | 708200876 | Deep Black, LH Exterior Air Scoop | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 | 2 |
| 1 | 708200877 | Deep Black, RH Exterior Air Scoop | 1 |
| 2 | 708200970 | Black Epoxy, Air Scoop Grille | 2 |
| 4 | 705004838 | Flat Clip | 4 |
| 1 | 708200949 | Asphalt Grey, Front Hood Models Asphalt Grey | 1 |
| 1 | 708200950 | Chalk, Front Hood Models Chalk | 1 |
| 1 | 708200951 | Petrol, Front Hood Models Petrol | 1 |
| 1 | 708200952 | Deep Marsala, Front Hood Models Deep Marsala | 1 |
| 1 | 705002223 | Lug | 1 |
| 2 | 232180600 | Hex. Jam Nut M8 | 2 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 1 | 233281464 | Elastic Flange Nut M8 | 1 |
| 1 | 708200886 | Black, Hood Hinge | 1 |
| 4 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 4 |
| 1 | 705003322 | Spacer | 1 |
| 1 | 230663084 | Hex. Flange Screw M6 X 130 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 4 | 210262050 | Hexagonal Head Screw | 4 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 1 | 517305742 | Hood Cable | 1 |
