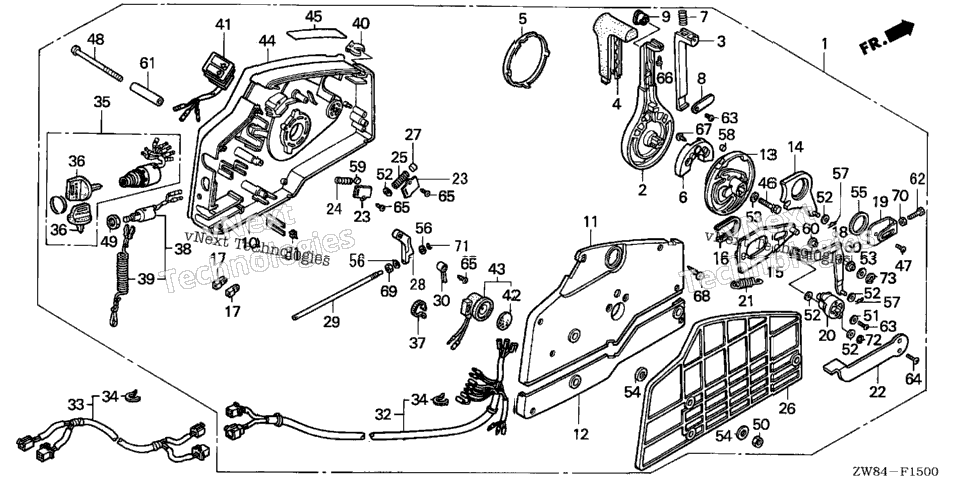

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24800-ZW9-830 | BOX ASSY., REMOTE CONTROL | ||
| 1 | 24811-ZV5-010 | SEE PART DETAILS - PRI; HANDLE, REMOTE CONTROL | 1 |
| 24812-ZV5-000 | LEVER, HANDLE LOCK | ||
| 1 | 24813-ZV5-000 | GRIP, REMOTE CONTROL HANDLE | 1 |
| 1 | 24814-ZV5-010 | SEE PART DETAILS - PRI; CAP, HANDLE | 1 |
| 1 | 24815-ZV5-010 | SEE PART DETAILS - PRI; BLOCK, NEUTRAL LOCK | 1 |
| 1 | 24816-ZV5-000 | SPRING, REMOTE CONTROL HANDLE | 1 |
| 1 | 24817-ZV5-000 | PLATE, LEVER SETTING | 1 |
| 1 | 24819-ZV5-000 | COVER, GRIP | 1 |
| 1 | 24820-ZV5-010 | SEE PART DETAILS - PRI; HOUSING, REMOTE CONTROL BOX (A) | 1 |
| 1 | 24830-ZV5-010 | SEE PART DETAILS - PRI; HOUSING, REMOTE CONTROL BOX (B) | 1 |
| 1 | 24836-ZV5-000 | HOUSING, REMOTE CONTROL BOX (C ) | 1 |
| 1 | 24841-ZV5-000 | WHEEL, CONTROL | 1 |
| 1 | 24845-ZV5-000 | ARM, SHIFT LINK | 1 |
| 1 | 24850-ZV5-000 | PLATE, SLIDING | 1 |
| 1 | 24854-ZV5-000 | COLLAR, SLIDING PLATE | 1 |
| 2 | 24855-ZV5-000 | PIVOT, SHIFT | 2 |
| 1 | 24860-ZV5-000 | ARM, LINK JOINT | 1 |
| 1 | 24865-ZV5-000 | BRACKET, LINK JOINT | 1 |
| 1 | 24875-ZV5-000 | WHEEL, ACCELERATOR | 1 |
| 1 | 24876-ZV5-000 | SPRING, ACCELERATOR WHEEL | 1 |
| 1 | 24878-ZV5-000 | LEVER, IDLE | 1 |
| 2 | 24881-ZV5-000 | PLATE, SPRING SETTING | 2 |
| 1 | 24883-ZV5-000 | SPRING, SHIFT CLICK | 1 |
| 1 | 24884-ZV5-000 | SPRING, CHOKE RETURN | 1 |
| 1 | 24885-ZV5-000 | SPACER, REMOTE CONTROL BOX | 1 |
| 1 | 24887-ZV5-000 | SPACER, CLICK SPRING | 1 |
| 1 | 24891-ZV5-000 | BLOCK, THROTTLE FRICTION | 1 |
| 1 | 24892-ZV5-000 | BOLT, FRICTION | 1 |
| 1 | 24894-ZV5-000 | SPACER, NEUTRAL SWITCH | 1 |
| 1 | 24898-ZV5-000 | SPACER, CABLE CLAMP | 1 |
| 32530-ZW9-830 | CABLE ASSY. B, REMOTE CONTROL (4P+4P) | ||
| 1 | 32570-ZW9-900 | CABLE ASSY., REMOTE CONTROL EXTENSION (4P+4P) (Optional) | 1 |
| 2 | 32901-952-770 | TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359. | 2 |
| 1 | 35100-ZV5-003 | SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE) | 1 |
| 2 | 35110-ZV5-003 | KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE) | 2 |
| 1 | 35701-MG9-950 | BAND (BLACK 3.5X140) | 1 |
| 1 | 36180-ZV5-033 | SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP | 1 |
| 1 | 36182-ZV4-651 | SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL) | 1 |
| 1 | 36187-ZV4-651 | SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK | 1 |
| 1 | 36187-ZV4-652 | SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK | 1 |
| 1 | 37210-ZW9-832 | SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR | 1 |
| 1 | 38403-341-672 | PLATE, TURN SIGNAL BUZZER DUAL QTY = (2) (SINGLE) | 1 |
| 1 | 38410-ZV5-003 | BUZZER, WARNING DUAL QTY = (2) (SINGLE) | 1 |
| 87701-ZV5-010 | SEE PART DETAILS - PRI; PLATE, REMOTE CONTROL (CAUTION=SILVER) | ||
| 1 | 87702-ZW9-800 | MARK, FAST IDLE | 1 |
| 1 | 90009-ZV5-000 | BOLT, HEX. (8X35) Use up to Frame SN 4800712. | 1 |
| 1 | 90105-MM4-000 | SCREW, PAN (6X10) | 1 |
| 3 | 90125-ZV5-000 | SCREW (6X95) | 3 |
| 1 | 90302-921-000 | NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) | 1 |
| 3 | 90304-ZV4-000 | NUT, HEX. (6MM) | 3 |
| 1 | 90502-ZV4-000 | WASHER, PLAIN (5MM) | 1 |
| 5 | 90506-ZV4-000 | WASHER, PLAIN (6MM) Use up to Frame SN 4800342. | 5 |
| 2 | 90507-ZV4-000 | WASHER, PLAIN (8MM) Use up to Frame SN 4800712. | 2 |
| 6 | 90512-921-010 | SEE PART DETAILS - PRI; WASHER (6MM) | 6 |
| 1 | 90557-ZV5-000 | WASHER (28MM) | 1 |
| 90561-ZV5-000 | WASHER, PLAIN (4MM) Use up to Frame SN 4800712. | ||
| 2 | 90751-ZV5-000 | PIN, LOCK (6MM) | 2 |
| 1 | 90772-ZV5-000 | PIN (6X6) | 1 |
| 1 | 91151-ZV5-000 | ROLLER, CLICK | 1 |
| 2 | 91567-ZV5-000 | COLLAR, LINK JOINT | 2 |
| 3 | 91570-ZV5-000 | COLLAR, DISTANCE (6X10X43.5) | 3 |
| 1 | 92101-05016-4J | SEE PART DETAILS - PRI; BOLT, HEX. (5X16) | 1 |
| 2 | 93500-05010-4J | SEE PART DETAILS - PRI; SCREW, PAN (5X10) | 2 |
| 2 | 93700-05012-4J | SCREW, OVAL (5X12) Use up to Frame SN 4800712. | 2 |
| 3 | 93901-251J0 | SCREW, TAPPING (5X10) | 3 |
| 1 | 93901-252J0 | SCREW, TAPPING (5X12) | 1 |
| 2 | 93903-262J0 | SCREW, TAPPING (6X16) | 2 |
| 7 | 93905-255J0 | SCREW, TAPPING (5X25) | 7 |
| 1 | 94001-06490-0S | SEE PART DETAILS - PRI; NUT, HEX. (6MM) | 1 |
| 1 | 94002-05490-0S | NUT, HEX. (5MM) | 1 |
| 1 | 94540-03029 | E-RING (3MM) | 1 |
| 1 | 94540-04029 | E-RING (4MM) | 1 |
| 1 | 94540-07029 | E-RING (7MM) | 1 |
