Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

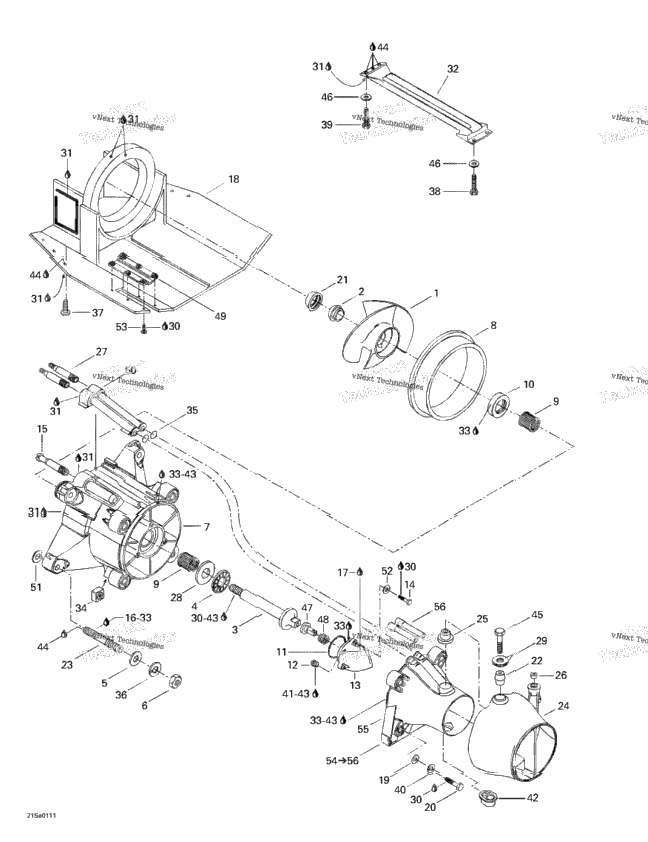

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 271000826 | Stainless Steel Impeller Ass'y | ||
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 271000291 | IMPELLER SHAFT | 1 |
| 1 | 293350019 | BEARING THRUST | 1 |
| 4 | 234001600 | Flat Washer 10 mm, Stainless | 4 |
| 4 | 232001600 | HEX. NUT M10 | 4 |
| 295500429 | IMPELLER HOUSING ASS'Y Includes 7 - 10. | ||
| 1 | 271000290 | Wear Ring | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 1 | 293200025 | Double Lip Seal | 1 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 1 | 271000670 | IMPELLER COVER | 1 |
| 3 | 207152060 | Hex. Screw M5 X 20 | 3 |
| 1 | 293700019 | FITTING-PUMP | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | ||
| 271000186190 | Shoe (Black) | ||
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 4 | 207086060 | HEX. SCREW M8 X 60 | 4 |
| 1 | 271000517 | Impeller Ring | 1 |
| 2 | 271000122 | Steering Nozzle Sleeve | 2 |
| 211300015 | STUD-M10 | ||
| 271000418 | STEERING NOZZLE ASS'Y Includes 24 - 26. | ||
| 1 | 293900001 | Venturi Bushing | 1 |
| XXXX | Not Available As Spare Part - Spacer 5.5 mm | ||
| 293700017 | BAILER FITTING | ||
| 1 | 293350020 | THRUST WASHER | 1 |
| 211200002 | Thrust Washer | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 1 | 271000466 | INLET GRATE | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 4 | 211100033 | Square Nut M8 | 4 |
| 2 | 293300013 | O-Ring | 2 |
| 4 | 234101601 | Helicoidal Lock Washer M10 | 4 |
| 6 | 208562560 | Phillips Screw M6 X 25 | 6 |
| 2 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 2 |
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 2 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 1 | 271000978 | PUSHER | 1 |
| 271000973 | SPRING | ||
| 291000446 | Ride Shoe Cap | ||
| 271000972 | Water Outlet | ||
| 1 | 272000053 | Shim, 0.3 mm | 1 |
| 3 | 234051600 | Flat Washer M5, Stainless | 3 |
| 208551060 | PHILLIPS SCREW M5 X 10 | ||
| 1 | 271000510 | VENTURI ASS'Y Includes 54 - 56. | 1 |
| 1 | 271000509 | VENTURI | 1 |
| 271000464 | Siphon Tube |
