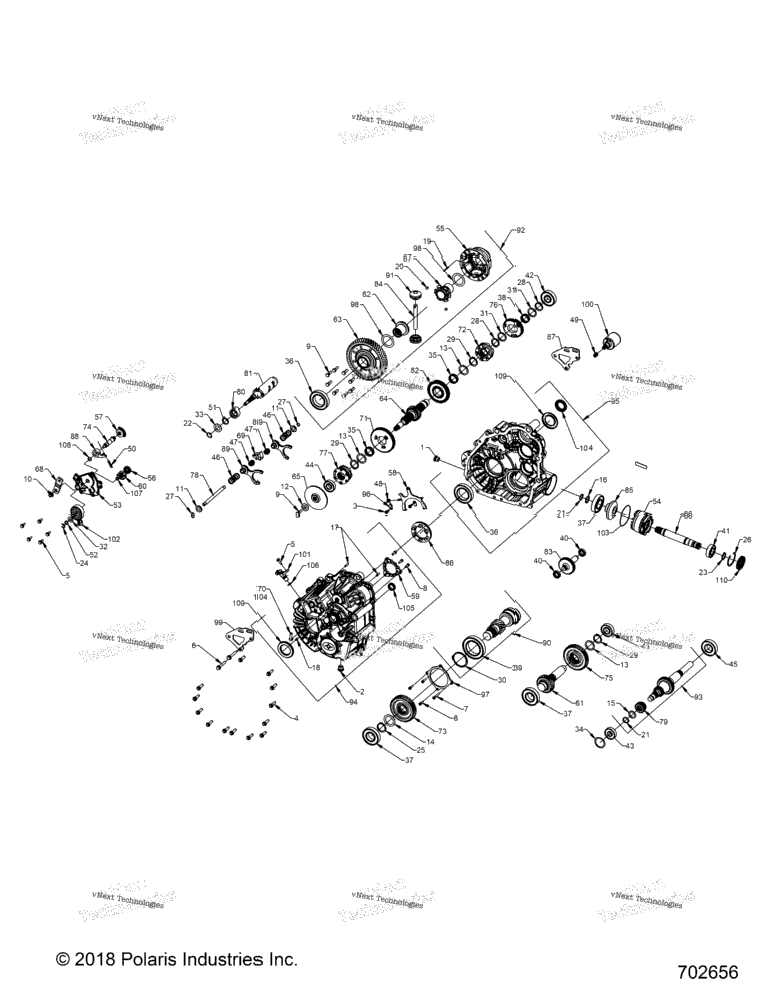

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1334336 | ASM-GEARCASE [INCL ALL] | 1 |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 |
| 1 | 3234756 | SOCKET HEAD W/ MAG PLUG 18 MM X | 1 |
| 2 | 3234309 | SCREW, TORX PAN HD M6 X 1 X 16 | 2 |
| 13 | 3234898 | HEX HEAD FLANGE SCREW 8MMX1.25M | 13 |
| 6 | 3235206 | SCREW | 6 |
| 2 | 3235207 | SCREW | 2 |
| 1 | 3235208 | SCREW, 6 MM X 1.0 MM 40 MM | 1 |
| 6 | 3235332 | SOCKET HEAD SCREW, 6 MM X 1 MM | 6 |
| 9 | 3236169 | SCREW CAP, 8 MM X 1.25 MM X 20 | 9 |
| 1 | 3235210 | HEXFLANGE NUT, NYLON, 8 MM X 1. | 1 |
| 2 | 3234091 | CUP WASHER | 2 |
| 1 | 3234952 | WASHER-FENDER,5/16-1.25 | 1 |
| 3 | 3235211 | WASHER | 3 |
| 1 | 3235212 | WASHER | 1 |
| 1 | 3235991 | WASHER 22.7 X 32 X 1.5 | 1 |
| 1 | 3236410 | WASHER 22.5 X 30 X 1.5 | 1 |
| 2 | 3234330 | PIN, DOWEL, 6 X 20 | 2 |
| 1 | 7043746 | SPRING-SLOTTED PIN,6MM | 1 |
| 1 | 3236286 | DOWEL PIN, 3 X 40 | 1 |
| 2 | 3236295 | PIN,DOWEL 6X10 | 2 |
| 1 | 7710434 | SNAP RING | 1 |
| 1 | 3233045 | RETAINING RING | 1 |
| 1 | 3233106 | SNAP RING | 1 |
| 1 | 3233834 | RETAINING RING | 1 |
| 1 | 3233364 | RETAINING RING | 1 |
| 1 | 3234269 | RING,RETAININGBASICINTRNL2.047 | 1 |
| 1 | 3234090 | RETAINING RING | 1 |
| 2 | 3234205 | RETAINING RING | 2 |
| 2 | 3235214 | RETAINING RING | 2 |
| 3 | 3235216 | RETAINING RING | 3 |
| 1 | 3233378 | THRUST WASHER | 1 |
| 2 | 3234642 | THRUST WASHER, .446 X .88 X .02 | 2 |
| 1 | 3235883 | SPACER, 19.4 X 34.0 X 2 | 1 |
| 1 | 3236234 | INPUT SHAFT SHIM | 1 |
| 1 | 3233014 | NEEDLE BEARING | 1 |
| 2 | 3233268 | BALL BEARING | 2 |
| 2 | 3234065 | BALL BEARNING | 2 |
| 3 | 3233384 | NEEDLE BEARING | 3 |
| 1 | 3235218 | BALL BEARING | 1 |
| 1 | 3235807 | BALL BEARING, 17 X 30 X 7 | 1 |
| 2 | 3235585 | BEARING-BALL 6205R25X52X15 | 2 |
| 2 | 3235328 | BALL BEARING | 2 |
| 1 | 3235588 | BALL BEARING, 6303R | 1 |
| 1 | 3235969 | BALL BEARING, 20 X 47 X 14 | 1 |
| 1 | 3236118 | BALL BEARING | 1 |
| 1 | 3234078 | COMPRESSION SPRING | 1 |
| 2 | 3234089 | COMPRESSION SPRING | 2 |
| 2 | 3234276 | TORSION RETURN SPRING | 2 |
| 1 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 |
| 1 | 3234578 | COMPRESSION DETENT SPRING | 1 |
| 1 | 3235885 | SPRING TORSION | 1 |
| 1 | 3235327 | SPRING WASHER | 1 |
| 1 | 3236121 | COVER,SECTOR GEARS,MACH | 1 |
| 1 | 3236120 | SNORKLE TUBE, MACHINED | 1 |
| 1 | 3236287 | DIFFERENTIAL CARRIER, MACHINED | 1 |
| 1 | 3233839 | SECTOR GEAR, 16 TOOTH | 1 |
| 1 | 3233832 | SECTOR GEAR, 31 TOOTH CUT TO 11 | 1 |
| 1 | 3235455 | FORK SHIFT | 1 |
| 1 | 3235456 | PARK PLATE | 1 |
| 1 | 3235982 | DETENT STAR | 1 |
| 1 | 3235223 | IDLER SHAFT, 29 TOOTH | 1 |
| 1 | 3236290 | GEAR,OUTPUT 14T MACH | 1 |
| 1 | 3236291 | GEAR,53T OUTPUT | 1 |
| 1 | 3236193 | SHAFT-REVERSE,25T | 1 |
| 1 | 3236194 | BRAKE DISC | 1 |
| 1 | 3236411 | OUTPUT SHAFT, FRONT | 1 |
| 1 | 3236289 | GEAR,OUTPUT 14T DISCONNECT MAC | 1 |
| 1 | 3236243 | BELLCRANK | 1 |
| 1 | 3234073 | SHIFT COLLAR | 1 |
| 1 | 3234230 | TUBE-VENT,90-1/4 HOSE | 1 |
| 1 | 3235232 | LOW GEAR, 67 TOOTH | 1 |
| 1 | 3235233 | 6 FACE ENGAGEMENT DOG | 1 |
| 1 | 3235236 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235238 | SHIFT SHAFT | 1 |
| 1 | 3235450 | GEAR, 48 TOOTH | 1 |
| 1 | 3235396 | GEAR, 49 TOOTH | 1 |
| 1 | 3235457 | PARK/LOW SHIFT DOG | 1 |
| 1 | 3235542 | SHIFT RAIL, SHAFT | 1 |
| 1 | 3236132 | GEAR, LOW, 25 TOOTH | 1 |
| 1 | 3235983 | PARK CAM | 1 |
| 1 | 3235984 | SHIFT DRUM, MACHINED | 1 |
| 1 | 3235985 | REVERSE GEAR, 56 TOOTH | 1 |
| 1 | 3235986 | IDLER GEAR, 39T | 1 |
| 1 | 3236292 | DIFFERENTIAL PIN | 1 |
| 1 | 3236412 | SNORKEL GEAR, 13 TOOTH | 1 |
| 1 | 3236293 | DOG, ENGAGEMENT | 1 |
| 1 | 3236342 | MOUNT BRACKET WELD, REAR | 1 |
| 1 | 3235452 | ROLLER PAWL | 1 |
| 1 | 3235920 | SHIFT FORK SUBASSEMBLY | 1 |
| 2 | 3236140 | PINION SHAFT, 11 TOOTH | 2 |
| 1 | 3236288 | BEVEL PINION, 10T | 1 |
| 2 | 3236285 | DIFFERENTIAL SUBASSEMBLY | 2 |
| 1 | 3236344 | ASM-SHAFT,INPUT,45T | 1 |
| 1 | 3236341 | ASM-CASE,RH(412931) | 1 |
| 1 | 3236556 | ASM-CASE,LH(413158) | 1 |
| 1 | 3234934 | FORK RETAINER | 1 |
| 2 | 3235241 | CENTER DRIVE BEARING COVER | 2 |
| 1 | 3236294 | WASHER,THRUST 40.83X56.25X0.38 | 1 |
| 2 | 3236343 | MOUNT BRACKET, REAR | 2 |
| 1 | 3235478 | SOLENOID | 1 |
| 1 | 4013908 | K-SPEED SENSOR | 1 |
| 1 | 7662409 | SWITCH-ROTARY,2-PIN RESISTIVE | 1 |
| 1 | 3236136 | O-RING, 2.989 X .070 | 1 |
| 1 | 3236141 | VITRON TRIPLE LIP SEAL, 32 X 49 | 1 |
| 1 | 3236196 | TRIPLE LIP SEAL, 20 X 30 X 7.5 | 1 |
| 1 | 3234302 | O-RING | 1 |
| 1 | 3233836 | O-RING | 1 |
| 1 | 3233828 | O-RING | 1 |
| 1 | 3235052 | VITON TRIPLE LIP SEAL, 40 X 70 | 1 |
| 2 | 3236135 | SEAL, TRIPLE LIP, 25 X 55 X 8 | 2 |
