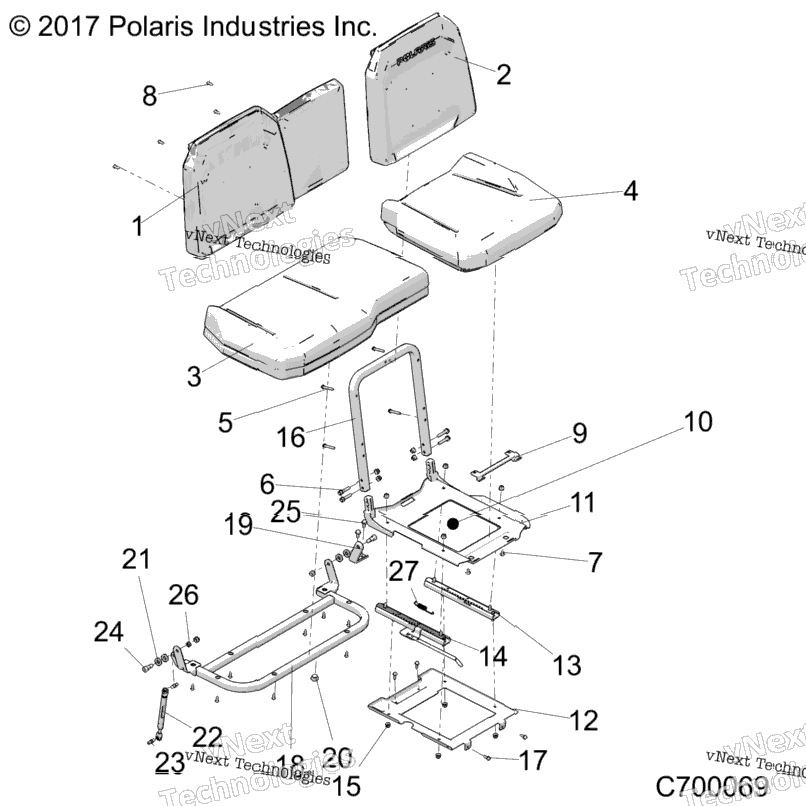

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2689647 | SEAT ASM BACK 60 BLK POL PURS C [X99A9,B9] | 1 |
| 1 | 2689653 | ASM-SEAT,BACK,40,BLK/PPC [X99A9,B9] | 1 |
| 1 | 2689650 | SEAT BOTTOM ASM 60 BLK/ POL PUR [X99A9,B9] | 1 |
| 1 | 2689656 | ASM-SEAT,BTM,40,FLIP,PPC,DS [X99A9,B9] | 1 |
| 1 | 2689627 | SEAT BACK ASSEMBLY [X99AA,BA] | 1 |
| 1 | 2689633 | SEAT ASSEMBLY, BACK, BLACK/TITA [X99AA,BA] | 1 |
| 1 | 2689630 | SEAT ASSEMBLY [X99AA,BA] | 1 |
| 1 | 2689636 | SEAT BOTTOMW ASSEMBLY, 40 [X99AA,BA] | 1 |
| 1 | 2689627 | SEAT BACK ASSEMBLY [X99AF,BF] | 1 |
| 1 | 2689633 | SEAT ASSEMBLY, BACK, BLACK/TITA [X99AF,BF] | 1 |
| 1 | 2689630 | SEAT ASSEMBLY [X99AF,BF] | 1 |
| 1 | 2689636 | SEAT BOTTOMW ASSEMBLY, 40 [X99AF,BF] | 1 |
| 1 | 2689627 | SEAT BACK ASSEMBLY [X99AP,BP] | 1 |
| 1 | 2689633 | SEAT ASSEMBLY, BACK, BLACK/TITA [X99AP,BP] | 1 |
| 1 | 2689630 | SEAT ASSEMBLY [X99AP,BP] | 1 |
| 1 | 2689636 | SEAT BOTTOMW ASSEMBLY, 40 [X99AP,BP] | 1 |
| 1 | 2689627 | SEAT BACK ASSEMBLY [X99AX,BX] | 1 |
| 1 | 2689633 | SEAT ASSEMBLY, BACK, BLACK/TITA [X99AX,BX] | 1 |
| 1 | 2689630 | SEAT ASSEMBLY [X99AX,BX] | 1 |
| 1 | 2689636 | SEAT BOTTOMW ASSEMBLY, 40 [X99AX,BX] | 1 |
| 4 | 7512093 | SCREW #14 X 1-3/4(10) | 4 |
| 4 | 7519738 | SCR-HXFL-M8X1.25X45 8.8 ZOD | 4 |
| 2 | 7518936 | SCR-M6X1X16 TR/TX-M | 2 |
| 12 | 7519045 | TORX SCREW, #14 X 3/4 | 12 |
| 1 | 5265262-458 | DOUBLE SEAT HINGE BRACKET, MATT | 1 |
| 1 | 2688492 | SEAT SLIDE ASSEMBLY [INCL. 11-15,27] | 1 |
| 1 | 1023808-458 | WELD-SLIDE,SEAT,TOP,BLK | 1 |
| 1 | 5265236-458 | BRKT-SEAT,BTM,BLK | 1 |
| 1 | 7081852 | SLIDER-SEAT ADJUSTER,LH,4IN | 1 |
| 1 | 7081853 | SLIDER-SEAT ADJUSTER,RH,4IN | 1 |
| 8 | 7547332 | NYLOC OLIVE NUT, 8 MM X 1.25 MM | 8 |
| 1 | 5340280-458 | SEAT BACK TUBE, MATTE BLACK | 1 |
| 4 | 7518529 | BOLT, M6 X 1.0 X 20 | 4 |
| 1 | 1023099-458 | PASSENGER SEAT BASE WELD, MATTE | 1 |
| 1 | 5263494-458 | BRKT-SEAT PIVOT,BLK | 1 |
| 1 | 5412067 | BUMPER, SHORT, RUBBER | 1 |
| 4 | 5813829 | SEATBELT WASHER, RUBBER | 4 |
| 1 | 7044799 | GAS SHOCK, 285 MM [TO 11/20/2024] | 1 |
| 1 | 7046186 | SHOCK-GAS,285MM [FROM 11/20/2024] | 1 |
| 2 | 7082301 | END BALL [TO 11/15/2024] | 2 |
| 7083089 | BALL-END [FROM 11/15/2024] | ||
| 2 | 7519355 | SCR-SHS-M10X1.5-M12X16 RIE | 2 |
| 2 | 7519780 | SCR-HWH-M8X1.25X20 TAP/R ZPB | 2 |
| 2 | 7547442 | NUT-HH M10X1.5 NYLOC ZOD | 2 |
| 7082394 | Discontinued |
