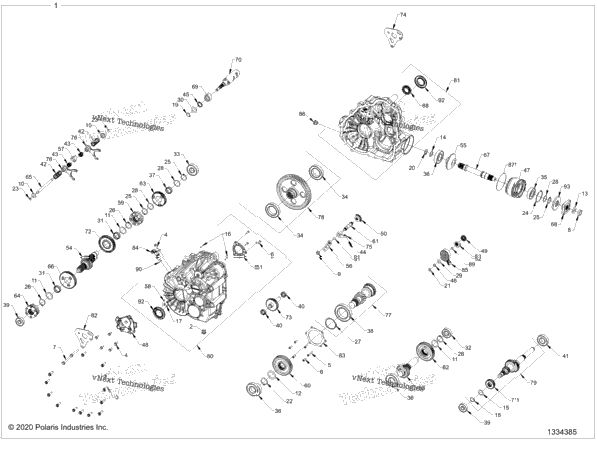

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1334386 | ASM-GEARCASE,COMPLETE [INCL ALL] | 1 |
| 1 | 3234756 | SOCKET HEAD W/ MAG PLUG 18 MM X | 1 |
| 13 | 3234898 | HEX HEAD FLANGE SCREW 8MMX1.25M | 13 |
| 6 | 3235206 | SCREW | 6 |
| 1 | 3235208 | SCREW, 6 MM X 1.0 MM 40 MM | 1 |
| 8 | 3235332 | SOCKET HEAD SCREW, 6 MM X 1 MM | 8 |
| 2 | 3235802 | SCR-HXFL-M8X1.25X70 8.8 | 2 |
| 1 | 3235803 | NUT-HEX-M20X1.5 JAM-RH | 1 |
| 1 | 3235210 | HEXFLANGE NUT, NYLON, 8 MM X 1. | 1 |
| 2 | 3234091 | CUP WASHER | 2 |
| 3 | 3235211 | WASHER | 3 |
| 1 | 3235212 | WASHER | 1 |
| 1 | 3235804 | WSHR-21.4X39X3.4 LOCKING | 1 |
| 1 | 3235805 | WASHER-26.26X34X2 | 1 |
| 1 | 3235991 | WASHER 22.7 X 32 X 1.5 | 1 |
| 2 | 3234330 | PIN, DOWEL, 6 X 20 | 2 |
| 1 | 7043746 | SPRING-SLOTTED PIN,6MM | 1 |
| 1 | 7710434 | SNAP RING | 1 |
| 1 | 3233045 | RETAINING RING | 1 |
| 1 | 3233106 | SNAP RING | 1 |
| 1 | 3233834 | RETAINING RING | 1 |
| 1 | 3233364 | RETAINING RING | 1 |
| 2 | 3234090 | RETAINING RING | 2 |
| 1 | 3234741 | INTERNAL RETAINING RING | 1 |
| 3 | 3234205 | RETAINING RING | 3 |
| 3 | 3235214 | RETAINING RING | 3 |
| 1 | 3235216 | RETAINING RING | 1 |
| 3 | 3233378 | THRUST WASHER | 3 |
| 1 | 3234642 | THRUST WASHER, .446 X .88 X .02 | 1 |
| 1 | 3235883 | SPACER, 19.4 X 34.0 X 2 | 1 |
| 2 | 3233014 | NEEDLE BEARING | 2 |
| 1 | 3233019 | BEARING | 1 |
| 1 | 3233020 | BEARING | 1 |
| 2 | 3233268 | BALL BEARING | 2 |
| 1 | 3233790 | BALL BEARING | 1 |
| 3 | 3234065 | BALL BEARNING | 3 |
| 1 | 3233384 | NEEDLE BEARING | 1 |
| 1 | 3235218 | BALL BEARING | 1 |
| 2 | 3234652 | BALL BEARING | 2 |
| 2 | 3235807 | BALL BEARING, 17 X 30 X 7 | 2 |
| 1 | 3235496 | BEARING | 1 |
| 2 | 3234078 | COMPRESSION SPRING | 2 |
| 2 | 3234089 | COMPRESSION SPRING | 2 |
| 1 | 3234578 | COMPRESSION DETENT SPRING | 1 |
| 1 | 3235885 | SPRING TORSION | 1 |
| 1 | 3235327 | SPRING WASHER | 1 |
| 1 | 3235947 | SNORKLE TUBE, MACHINED | 1 |
| 1 | 3235809 | COVER-SECTOR GEARS,MACH | 1 |
| 1 | 3233839 | SECTOR GEAR, 16 TOOTH | 1 |
| 1 | 3233832 | SECTOR GEAR, 31 TOOTH CUT TO 11 | 1 |
| 1 | 3235456 | PARK PLATE | 1 |
| 1 | 3235982 | DETENT STAR | 1 |
| 1 | 3235223 | IDLER SHAFT, 29 TOOTH | 1 |
| 1 | 3235380 | 25T REVERSE SHAFT | 1 |
| 1 | 3235812 | GEAR-19T,SNORKLE | 1 |
| 1 | 3235227 | BELLCRANK | 1 |
| 1 | 3234073 | SHIFT COLLAR | 1 |
| 1 | 3234230 | TUBE-VENT,90-1/4 HOSE | 1 |
| 1 | 3235233 | 6 FACE ENGAGEMENT DOG | 1 |
| 1 | 3235236 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235238 | SHIFT SHAFT | 1 |
| 1 | 3235381 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235411 | GEAR, 52 T | 1 |
| 1 | 3235457 | PARK/LOW SHIFT DOG | 1 |
| 1 | 3235542 | SHIFT RAIL, SHAFT | 1 |
| 1 | 3235561 | GEAR, 61T | 1 |
| 1 | 3235815 | OUTPUT SHAFT, FRONT | 1 |
| 1 | 3235816 | COUPLER | 1 |
| 1 | 3235983 | PARK CAM | 1 |
| 1 | 3235984 | SHIFT DRUM, MACHINED | 1 |
| 1 | 3235990 | LOW GEAR, 31T | 1 |
| 1 | 3235985 | REVERSE GEAR, 56 TOOTH | 1 |
| 1 | 3235986 | IDLER GEAR, 39T | 1 |
| 1 | 3236144 | MOUNT BRACKET WELD, REAR | 1 |
| 1 | 3235452 | ROLLER PAWL | 1 |
| 2 | 3235920 | SHIFT FORK SUBASSEMBLY | 2 |
| 1 | 3235820 | PINION SUBASSEMBLY | 1 |
| 1 | 3235847 | OUTPUT SUBASSEMBLY | 1 |
| 1 | 3235988 | ASM-SHAFT INPUT 43T/22T/31T | 1 |
| 1 | 3235992 | CASE SUBASSEMBLY, RIGHT | 1 |
| 1 | 3236639 | ASM-SUB,LH CASE | 1 |
| 1 | 3236145 | MOUNT BRACKET, REAR | 1 |
| 1 | 3235823 | COVER-BEARING,CENTER DRIVE | 1 |
| 1 | 4013908 | K-SPEED SENSOR | 1 |
| 1 | 7662299 | RESISTIVE 2 PIN ROTARY SWITCH | 1 |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 |
| 1 | 3235948 | O-RING, 3.609 X .139 | 1 |
| 1 | 3236551 | SEAL-TRIPLE LIP,SHIELD,30X47X9 | 1 |
| 1 | 3233836 | O-RING | 1 |
| 1 | 3233840 | O-RING | 1 |
| 1 | 3233828 | O-RING | 1 |
| 2 | 3235052 | VITON TRIPLE LIP SEAL, 40 X 70 | 2 |
| 1 | 3235824 | TRIP LIP SEAL, 30 X 75 X 8 | 1 |
