Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

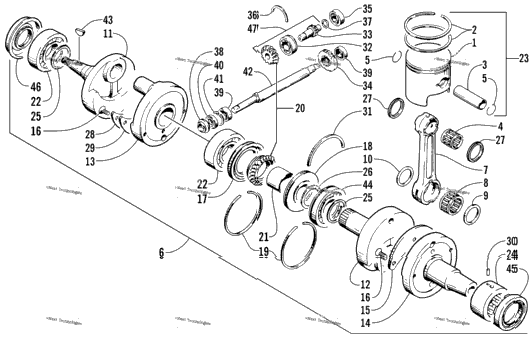

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 3004-325 | Piston Assy, W/Rings | 2 |
| 3003-822 | RING SET, 700/1000 L/C | ||
| 2 | 3008-482 | Pin, Piston | 2 |
| 2 | 3003-433 | Bearing, Piston Pin - Roller | 2 |
| 4 | 3003-439 | Circlip, Piston Pin | 4 |
| 3005-632 | CRANKSHAFT ASSY (inc. 7-22 and 24-27) | ||
| 3005-444 | Rod | ||
| 2 | 3003-343 | Bearing | 2 |
| 3003-430 | Washer, Crank Pin - Left | ||
| 3402-383 | Washer, 2nd Driven Gear | ||
| 1 | 3005-516 | Crankshaft - Right | 1 |
| 3003-448 | Crankshaft - Middle | ||
| 3003-824 | Wheel, Crank | ||
| 3003-825 | CRANKSHAFT,LH | ||
| 3003-451 | Balancer, Left | ||
| 6 | 3007-440 | Screw | 6 |
| 3003-454 | Race, Middle Seal - Right | ||
| 3003-606 | Race, Center | ||
| 2 | 3003-453 | Ring, Center | 2 |
| 3003-826 | Gear Set - Oil Pump | ||
| 3003-353 | Spacer, Crankshaft | ||
| 2 | 3008-421 | Bearing | 2 |
| 2 | 3004-325 | Piston Assy, W/Rings (inc. 1-2 and 5) | 2 |
| 1 | 3003-805 | Bearing, Crankshaft - Left | 1 |
| 2 | 3008-495 | Washer | 2 |
| 3003-609 | Washer, Gear T:1.2 mm | ||
| 3003-610 | Washer, Gear T:0.9 mm | ||
| 3003-611 | Washer, Gear T:0.95 mm | ||
| 3003-607 | Washer, Gear T:1.0 mm | ||
| 3003-612 | Washer, Gear T:1.05 mm | ||
| 1 | 3003-608 | Washer, Gear T:1.1 mm | 1 |
| 3003-613 | Washer, Gear T:1.15 mm | ||
| 4 | 3005-209 | Washer | 4 |
| 3005-633 | Balancer, Right | ||
| 3005-634 | Spacer, Crankshaft | ||
| 4 | 3003-658 | Pin, Alignment | 4 |
| 1 | 3003-359 | C-Ring | 1 |
| 3003-614 | Bearing, Oil Pump Driveshaft | ||
| 3003-462 | Shaft, Driven - Pump | ||
| 3003-463 | Gear, Driven - Pump | ||
| 1 | 3003-615 | Bearing | 1 |
| 3402-425 | SHIM, T:1.0,10MM | ||
| 1 | 3003-417 | Shim, Pump Shaft T: 1.1 mm | 1 |
| 1 | 3003-418 | Shim, Pump Shaft T: 1.2 mm | 1 |
| 3005-517 | SHIM, OIL PUMP SHAFT T:1.3,10MM | ||
| 1 | 3003-420 | Shim, Pump Shaft T: 1.4 mm | 1 |
| 3402-426 | Shim, Pump Shaft T: 1.5 mm | ||
| 3003-422 | Shim, Pump Shaft T: 1.6 mm | ||
| 1 | 3003-423 | Shim, Pump Shaft T: 1.7 mm | 1 |
| 1 | 3003-424 | Shim, Pump Shaft T: 1.8 mm | 1 |
| 1 | 3003-425 | Shim, Pump Shaft T: 1.9 mm | 1 |
| 1 | 3005-909 | Seal, Mechanical Water Pump | 1 |
| 2 | 3003-352 | Bearing, Shaft - Water Pump | 2 |
| 1 | 3007-431 | Seal, Oil | 1 |
| 1 | 3007-714 | Circlip, Bearing - Fastener | 1 |
| 3005-485 | Shaft, Water Pump | ||
| 1 | 3004-540 | Key, Woodruff | 1 |
| 1 | 3008-421 | Bearing | 1 |
| 1 | 3003-759 | Seal, Oil - Left | 1 |
| 1 | 3003-367 | Seal, Oil | 1 |
| 3005-595 | Shaft, Oil Pump - Assembly (inc. 20 and 32-33) |
