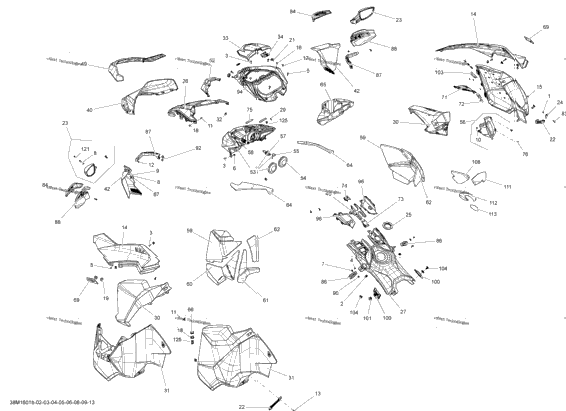

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 2 | 250100113 | Panel Nut, M6 X 1.0 | 2 |
| 12 | 250000528 | Torx Screw M5 X 20 | 12 |
| 2 | 250000565 | Hexalob Screw M4 X 10 | 2 |
| 4 | 250000587 | Torx Screw M5 X 26 | 4 |
| 2 | 250100035 | Jack Nut M5 | 2 |
| 2 | 250100156 | Weld Nut M4 | 2 |
| 6 | 250200024 | Rubber Washer 5 mm | 6 |
| 4 | 250200025 | Washer M5 | 4 |
| 3 | 275500241 | Black, Cap | 3 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 1 | 293150108 | Pop Rivet 3/16” | 1 |
| 1 | 517305633 | Red LH Hood | 1 |
| 1 | 517305634 | Red RH Hood | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 2 | 414644300 | Black, Dart | 2 |
| 8 | 517124300 | Washer | 8 |
| 2 | 517302841 | Grommet | 2 |
| 3 | 517303756 | Grommet | 3 |
| 1 | 517303612 | RH Panel Latch E-TEC Engine | 1 |
| 1 | 517303808 | LH Panel Latch | 1 |
| 1 | 517305100 | RH Mirror Ass'y | 1 |
| 1 | 517305101 | LH Mirror Ass'y | 1 |
| 1 | 517304221 | Latch Support E-TEC Engine | 1 |
| 1 | 517304518 | Console Nut | 1 |
| 1 | 517305369 | Red Center Hood | 1 |
| 1 | 517305786 | CANAM RED, REAR CONSOLE | 1 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 517305679 | Red RH Panel Panel With Handle Opening | 1 |
| 1 | 517305681 | Red RH Panel Panel Without Handle Opening | 1 |
| 1 | 517305689 | Red LH Panel | 1 |
| 1 | 517304805 | Black, LH Flashing Panel | 1 |
| 12 | 250000079 | Panel Nut M5 X 0.8 | 12 |
| 1 | 517304912 | Deep Black, Upper Storage Access Cover | 1 |
| 1 | 517304917 | Cover Latch | 1 |
| 1 | 517304931 | Windshield 135mm | 1 |
| 1 | 517305737 | RH Air Deflector | 1 |
| 1 | 517305738 | LH Air Deflector | 1 |
| 1 | 517304970 | Deep Black, Console Support | 1 |
| 1 | 517305948 | SUPPORT | 1 |
| 1 | 517305807 | CAP | 1 |
| 1 | 517305762 | Headlamp | 1 |
| 2 | 219400070 | Cap | 2 |
| 2 | 219800282 | Holder Bracket | 2 |
| 1 | 517305060 | Deep Black RH Console | 1 |
| 2 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 2 |
| 2 | 219800281 | Spring | 2 |
| 1 | 517305082 | RH Upper Panel Foam | 1 |
| 1 | 517305086 | LH Upper Panel Foam | 1 |
| 1 | 517305087 | LH CENTER PANEL FOAM | 1 |
| 1 | 517305088 | LH Lower Panel Foam | 1 |
| 1 | 517305085 | RH Rear Panel Foam | 1 |
| 1 | 517305089 | LH REAR PANEL FOAM | 1 |
| 1 | 517305090 | RH Rear Hood Foam | 1 |
| 1 | 517305091 | LH Rear Hood Foam | 1 |
| 1 | 517305095 | Deep Black, Trunk | 1 |
| 4 | 517305109 | Rivet Plate | 4 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 1 | 517305137 | RH Hood Filler Plate, SKI-DOO | 1 |
| 1 | 517305138 | LH HOOD FILLER PLATE | 1 |
| 1 | 517305140 | RH Panel Vent Grid Deep Black | 1 |
| 2 | 517305451 | Heat Shield | 2 |
| 1 | 517305148 | Deep Black, Support Console Cap | 1 |
| 1 | 517305147 | Deep Black, Support Console Cap | 1 |
| 2 | 517305157 | Seal Joint | 2 |
| 1 | 250000792 | Torx Screw M5 X 20 E-TEC Engine | 1 |
| 1 | 517305588 | Sunburst Yellow, RH Cap, SKI-DOO | 1 |
| 1 | 517305589 | Sunburst Yellow, LH Cap, SKI-DOO | 1 |
| 2 | 517305279 | Panel Latch | 2 |
| 1 | 517305290 | Deep Black, LH Arm | 1 |
| 1 | 517305293 | Deep Black, RH Arm | 1 |
| 1 | 517305291 | LH Deflector, Smoked 60% | 1 |
| 1 | 517305294 | RH Deflector, Smoked 60% | 1 |
| 2 | 250000705 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 517305296 | Clamp | 2 |
| 1 | 517305512 | Deep Black, Indicator Support | 1 |
| 1 | 517305128 | Deep Black, LH Front Console | 1 |
| 1 | 517305549 | Deep Black, RH Front Console | 1 |
| 1 | 517305722 | LH Panel Clip Ass'y, Black | 1 |
| 1 | 517305724 | RH Panel Clip Ass'y, Black | 1 |
| 2 | 517305723 | Ring | 2 |
| 1 | 517305731 | Bumper Stopper | 1 |
| 1 | 517305734 | Pin | 1 |
| 1 | 517305791 | Foam | 1 |
| 1 | 517305799 | Foam | 1 |
| 1 | 517305794 | Foam | 1 |
| 1 | 517305800 | Foam | 1 |
| 1 | 517305795 | Foam | 1 |
| 1 | 517305796 | Rubber Sheet | 1 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 3 | 250100158 | Push Nut | 3 |
| 6 | 732610072 | Push Nut For Windshield | 6 |
