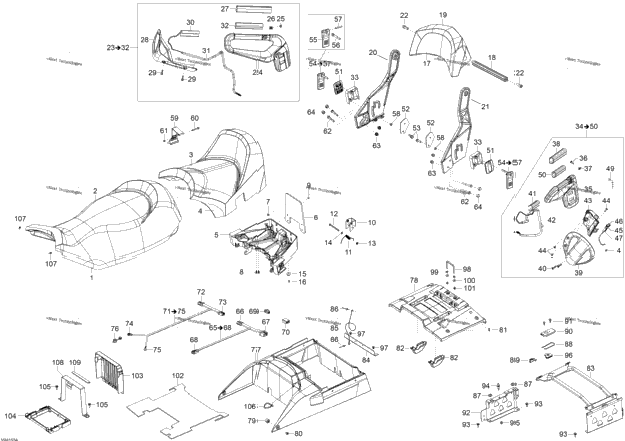

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 510005807 | Front Seat Foam | 1 |
| 1 | 510005724 | Cover, front | 1 |
| 1 | 510005256 | Cover rear | 1 |
| 1 | 510005811 | Rear Seat Foam | 1 |
| 1 | 510004816 | Seat Base | 1 |
| 1 | 510005330 | Backrest Plate | 1 |
| 4 | 234062410 | Flat Washer 6 mm | 4 |
| 14 | 414644300 | Black, Dart | 14 |
| 293150210 | Rivet | ||
| 1 | 708000144 | Latch, Black | 1 |
| 1 | 708000369 | Spring | 1 |
| 1 | 207068044 | Hex. Screw M6 X 80 | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 2 | 510006005 | Stopper Rubber | 2 |
| 2 | 293150015 | Pop Rivet 1/8” | 2 |
| 1 | 510005833 | FOAM BACKREST | 1 |
| 605355357 | BACKREST AXLE | ||
| 1 | 510005259 | Backrest Cover | 1 |
| 1 | 510005420 | RH Arm | 1 |
| 1 | 510005419 | LH Arm | 1 |
| 2 | 250000553 | Forming Screw M10 x 25 | 2 |
| XXXX | Not Available As Spare Part - RH Handle Includes 23 To 32 | ||
| 1 | 510005865 | RH HANDLE | 1 |
| 1 | 250000129 | Torx Screw M6 X 16 | 1 |
| 1 | 293100003 | Nut Welded, M6 | 1 |
| 1 | 510004449 | Handle Grip | 1 |
| 1 | 510004415 | RH Deflector | 1 |
| 2 | 250000199 | Screw 25mm | 2 |
| 1 | 515176393 | Heater | 1 |
| 1 | 219704426 | Was 515175506 Tubing | 1 |
| 1 | 510004709 | HANDLE REINFORFORCEMENT | 1 |
| 2 | 510004939 | Adapter | 2 |
| XXXX | Not Available As Spare Part - LH Handle Includes 34 To 50 | ||
| 1 | 510005862 | LH Handle | 1 |
| 1 | 510005862 | LH Handle | 1 |
| 1 | 510004416 | LH Deflector | 1 |
| 1 | 510004566 | Switch Housing | 1 |
| 1 | 510004566 | Switch Housing | 1 |
| 3 | 250000146 | Truss Head Torx Screw K50 X 16 | 3 |
| 3 | 250000146 | Truss Head Torx Screw K50 X 16 | 3 |
| 1 | 510004413 | Rocker Switch | 1 |
| 1 | 510004413 | Rocker Switch | 1 |
| 1 | 510004414 | Switch Protector | 1 |
| 1 | 510004414 | Switch Protector | 1 |
| 1 | 515176241 | LH HANDLE HARNESS | 1 |
| 1 | 515176241 | LH HANDLE HARNESS | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 516002835 | HANDLE HEATER DECAL | 1 |
| 1 | 516002835 | HANDLE HEATER DECAL | 1 |
| 2 | 510004405 | Moulding | 2 |
| 2 | 510004405 | Moulding | 2 |
| 2 | 510004990 | Counter Plate | 2 |
| 2 | 510004990 | Counter Plate | 2 |
| 2 | 250000376 | Hex Forming Screw DIN.7500D | 2 |
| 2 | 250000376 | Hex Forming Screw DIN.7500D | 2 |
| 2 | 510004992 | Lock Ass'y Includes 54 To 57 | 2 |
| 2 | 510004992 | Lock Ass'y Includes 54 To 57 | 2 |
| 2 | 5243419 | Lock | 2 |
| 2 | 5243419 | Lock | 2 |
| 2 | 510004993 | Screw | 2 |
| 2 | 510004993 | Screw | 2 |
| 2 | 414821400 | Pin | 2 |
| 2 | 414821400 | Pin | 2 |
| 2 | 510005507 | Sleeve | 2 |
| 2 | 510005507 | Sleeve | 2 |
| 1 | 510005139 | Security Lock | 1 |
| 1 | 510005139 | Security Lock | 1 |
| 1 | 205064044 | Socket Screw HD.DIN.912 | 1 |
| 1 | 205064044 | Socket Screw HD.DIN.912 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 1 | 232561434 | Elastic Stop Nut M6 | 1 |
| 4 | 207686044 | Hex. Flange Screw M8 x 60 | 4 |
| 4 | 207686044 | Hex. Flange Screw M8 x 60 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | 28056 | Cover | 4 |
| 4 | 28056 | Cover | 4 |
| 1 | 515177209 | Seat Harness 2012 Includes 65 To 68 | 1 |
| 1 | 515177209 | Seat Harness 2012 Includes 65 To 68 | 1 |
| 1 | 515175495 | Female Housing, 3 Circuits | 1 |
| 1 | 515175495 | Female Housing, 3 Circuits | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175819 | Female Terminal Housing, 8 Circuits | 1 |
| 1 | 515175819 | Female Terminal Housing, 8 Circuits | 1 |
| XXXX | Not Available As Spare Part - RCA Plug | ||
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 515175817 | Male Terminal Housing, 8 Circuits | 1 |
| 1 | 515175817 | Male Terminal Housing, 8 Circuits | 1 |
| 1 | 515177210 | Seat Harness Includes 71 To 75 | 1 |
| 1 | 515177210 | Seat Harness Includes 71 To 75 | 1 |
| 1 | 515175232 | Male Terminal | 1 |
| 1 | 515175232 | Male Terminal | 1 |
| 515175172 | OPEN BARREL | ||
| 515175172 | OPEN BARREL | ||
| 1 | 572103300 | Cap | 1 |
| 1 | 572103300 | Cap | 1 |
| 1 | 510004874 | Storage Box XU | 1 |
| 1 | 510004874 | Storage Box XU | 1 |
| 1 | 510005604 | Cover Storage Box XU 12 | 1 |
| 1 | 510005604 | Cover Storage Box XU 12 | 1 |
| 2 | 510005147 | Bushing | 2 |
| 2 | 510005147 | Bushing | 2 |
| 6 | 250000675 | Torx Truss Screw M6 x 12 | 6 |
| 6 | 250000675 | Torx Truss Screw M6 x 12 | 6 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 510004999 | Cover | 2 |
| 2 | 510004999 | Cover | 2 |
| 1 | 510005714 | Lock tube | 1 |
| 1 | 510005714 | Lock tube | 1 |
| 1 | 510005156 | Cable Support Plate | 1 |
| 1 | 510005156 | Cable Support Plate | 1 |
| 1 | 293750070 | Seat Retainer Cable | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 2 | 605452114 | Plug | 2 |
| 1 | 269700017 | Latch Spring | 1 |
| 1 | 510005072 | Puller | 1 |
| 1 | 510005698 | Lock Pin Cover | 1 |
| 2 | 250000676 | Forming Screw M5 x 16 | 2 |
| 1 | 510005845 | Locking Plate | 1 |
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 6 |
| 605452035 | LOCK PIN | ||
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 1 | 510005044 | Lock Pin Guide | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 510004876 | FASTENER PIN | ||
| 2 | 250000135 | Hex. Nut M6 | 2 |
| 2 | 20117 | Washer | 2 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 1 | 510005043 | Foam | 1 |
| 1 | 510005079 | Battery Cover | 1 |
| 1 | 515176804 | Battery Support | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 605627000 | Tie-Rap | 1 |
| 1 | 510005250 | Battery Strap | 1 |
| 1 | 605356094 | Strap Cover | 1 |
| 1 | 293750070 | Seat Retainer Cable | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 2 | 605452114 | Plug | 2 |
| 1 | 269700017 | Latch Spring | 1 |
| 1 | 510005072 | Puller | 1 |
| 1 | 510005698 | Lock Pin Cover | 1 |
| 2 | 250000676 | Forming Screw M5 x 16 | 2 |
| 1 | 510005845 | Locking Plate | 1 |
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 6 |
| 605452035 | LOCK PIN | ||
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 1 | 510005044 | Lock Pin Guide | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 510004876 | FASTENER PIN | ||
| 2 | 250000135 | Hex. Nut M6 | 2 |
| 2 | 20117 | Washer | 2 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 1 | 510005043 | Foam | 1 |
| 1 | 510005079 | Battery Cover | 1 |
| 1 | 515176804 | Battery Support | 1 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 1 | 605627000 | Tie-Rap | 1 |
| 1 | 510005250 | Battery Strap | 1 |
| 1 | 605356094 | Strap Cover | 1 |
