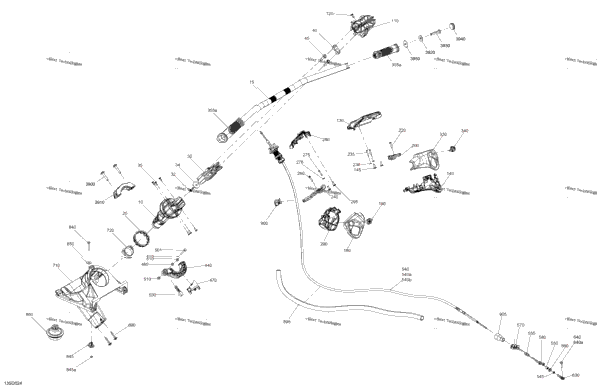

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277002111 | Steering Column | 1 |
| 277002338 | Deep Black, Handlebar | ||
| 1 | 277001874 | Wear Ring | 1 |
| 1 | 277002141 | Handlebar Riser Bock | 1 |
| 1 | 250000526 | Hex. Screw M8 X 30, Scotch Grip | 1 |
| 1 | 250200188 | Flat Washer M8.4 x 40 | 1 |
| 6 | 250000922 | Torx Truss Screw M6 X 16 | 6 |
| 2 | 506152751 | Steering Support | 2 |
| 4 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip | 4 |
| 1 | 277002005 | Deep Black, Steering Pad | 1 |
| 1 | 250000922 | Torx Truss Screw M6 X 16 | 1 |
| 1 | 277002040 | RH Upper Housing | 1 |
| 1 | 277002036 | RH Lower Housing | 1 |
| 2 | 250000922 | Torx Truss Screw M6 X 16 | 2 |
| 1 | 277002314 | LH Cover | 1 |
| 1 | 277002327 | Red Button Switch | 1 |
| 1 | 277002138 | Hand Lever Accelerator | 1 |
| 1 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 1 |
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 277001945 | Reverse Handle | 1 |
| 1 | 277002041 | LH Upper Housing | 1 |
| 1 | 277002035 | LH Lower Housing | 1 |
| 1 | 277002316 | RH Cover | 1 |
| 1 | 277002320 | Button Switch | 1 |
| 2 | 277002286 | Handlebar Grip | 2 |
| 1 | 277002319 | Steering Arm | 1 |
| 1 | 233261200 | Nut Flange Elastic M6 | 1 |
| 1 | 277001654 | Spacer | 1 |
| 1 | 207064060 | Hex. Screw M6 X 40 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 277001180 | Ball Joint | 1 |
| 1 | 277002167 | Steering Cable Includes 540 to 540b | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277001582 | Wiper Rod | 1 |
| 1 | 277001583 | End Piece | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277001856 | Ring Halves | 2 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 250000970 | Hex Sems Screw M6X35 Includes 640 to 640a | 1 |
| 1 | 250000969 | Hex Screw SEMS M6X35, SS | 1 |
| 1 | 277002168 | Steering Column Support | 1 |
| 1 | 277002318 | Wear Ring | 1 |
| 2 | 207164060 | Hex. Screw M6 X 40 | 2 |
| 2 | 291004662 | Housing Nut Overmolded Includes 845 to 845a | 2 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 2 | 250200022 | Flat Washer M6.6 X 22 | 2 |
| 1 | 293720116 | Boot Cable | 1 |
| 1 | 276000520 | Sheath Corrugated 22MM - 1250MM | 1 |
| 1 | 275500527 | Cable Retainer | 1 |
| 1 | 277002150 | Rope Guide | 1 |
| 1 | 277002085 | C Clamp | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 277001863 | Insert Grip Handle | 2 |
