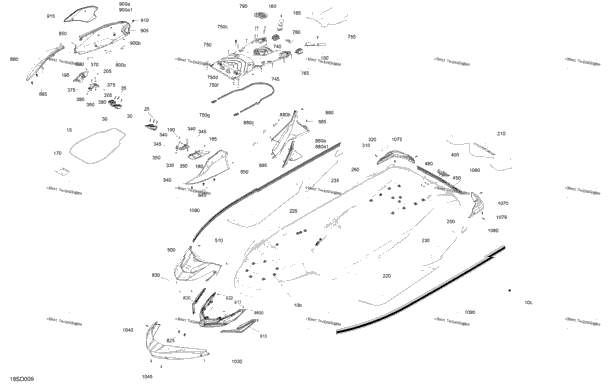

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291006093 | Nut Housing M6 Ass'y | 1 |
| 1 | 293750109 | Anchorage Tie Wrap | 1 |
| 1 | 293250401 | Gasket | 1 |
| 1 | 291004714 | LH Support | 1 |
| 3 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 | 3 |
| 1 | 291004715 | RH Support | 1 |
| 1 | 291005176 | LH Shim | 1 |
| 1 | 291005177 | RH Shim | 1 |
| 2 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 | 2 |
| 1 | 293250451 | Gasket | 1 |
| 1 | 291004661 | LH Shell Cleat | 1 |
| 1 | 293730011 | Black, Dart | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 1 | 291004719 | RH Shell Cleat | 1 |
| 1 | 291005279 | Rear Plat-Form Carpet | 1 |
| 1 | 291005351 | LH Front Anti Slip Mat | 1 |
| 1 | 291005350 | RH Front Anti Slip Mat | 1 |
| 1 | 291005353 | LH Rear Anti Slip Mat | 1 |
| 1 | 291005352 | RH Rear Anti Slip Mat | 1 |
| 1 | 291005883 | LH Anti Slip Mat | 1 |
| 1 | 291005884 | RH Anti Slip Mat | 1 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 291004559 | LH Cleat | 1 |
| 2 | 207083560 | Hex. Screw M8 X 35 | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291004720 | RH Cleat | 1 |
| 1 | 291004597 | Cleat | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 291005579 | Deep Black, Hood | 1 |
| 2 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" | 2 |
| 1 | 291004941 | Hose Protector | 1 |
| 1 | 291005876 | Acces Cover Ass'y Includes 750 to 750g | 1 |
| 2 | 291005183 | Stud | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 2 | 291004717 | Seal | 2 |
| 1 | 291005860 | Lava Grey, Rear Mat | 1 |
| 13 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 13 |
| 2 | 295100858 | LinQ Bases Kit | 2 |
| 1 | 291004481 | Access Cap Ass'y | 1 |
| 1 | 291005915 | Front Hood Grille | 1 |
| 1 | 291005974 | Sterling Silver, LH Trim | 1 |
| 1 | 250100206 | Push Nut | 1 |
| 1 | 291005975 | Sterling Silver, RH Trim | 1 |
| 2 | 293730071 | Dard | 2 |
| 3 | 211000023 | Hex. Screw 10-14 X 7/8” | 3 |
| 1 | 291005041 | Flint Grey, Body Panel Front LH | 1 |
| 3 | 293730071 | Dard | 3 |
| 1 | 291005040 | Flint Grey, Body Panel Front RH | 1 |
| 1 | 291006001 | Flint Grey, LH Central Body Panel Includes 880a to 880a1 | 1 |
| 1 | 291005042 | Flint Frey, LH Central Body Panel | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 3 | 278003860 | Stopper | 3 |
| 1 | 250001206 | Screw-Plastite Torx Hd.M6.81X20 | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 291004773 | Swift Silver, LH Knee Pad | 1 |
| 1 | 291006003 | Flint Grey, RH Central Body Panel Includes 900a to 900a1 | 1 |
| 1 | 291005043 | Flint Frey, RH Central Body Panel | 1 |
| 1 | 291004800 | Swift Silver, RH Knee Pads | 1 |
| 1 | 291004452 | Front Bumper | 1 |
| 2 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 2 |
| 2 | 250000879 | Plastite Torx Screw M6.81X30 | 2 |
| 291004468 | Bumper | ||
| 1 | 291004465 | LH Rear Bumper | 1 |
| 1 | 291004466 | RH Rear Bumper | 1 |
| 4 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 4 |
