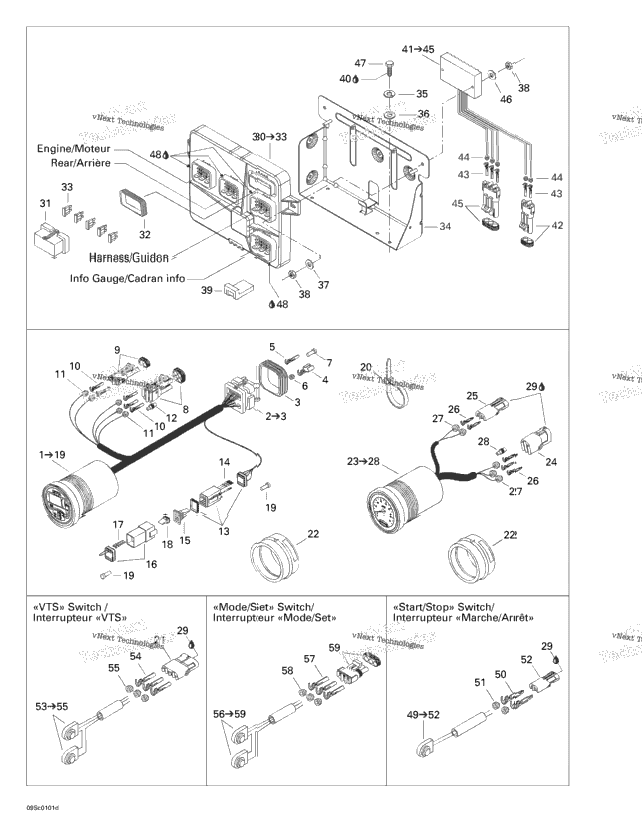

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001561 | LCD Info Gauge Includes 1 - 19. | ||
| 278000993 | Male Connector, 26 Circuits Includes 2 - 3. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000995 | FEMALE TERMINAL | ||
| 278000996 | WIRE SEAL | ||
| 8 | 293000070 | SEALING CAP | 8 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 5 | 278000223 | Female Terminal | 5 |
| 5 | 278001065 | Wire Seal | 5 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 4 | 278000632 | Female Terminal | 4 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 2 | 278000631 | Male Terminal | 2 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 293000052 | Sealing Cap | 6 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 293720047 | Gauge Support | ||
| 278001359 | Speedometer Includes 23 - 28. | ||
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 278001695 | ELECTRONIC MODULE ASS'Y (5591/5592) Includes 30 - 33. | 1 |
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278001443 | Fuse, 25 Amperes | 2 |
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 278001516 | Module Support | ||
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 278001554 | Rectifier Ass’Y Includes 41 - 45. | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 243042060 | Hex. Plastite Screw M4, 8 X 20 | ||
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 278001358 | Ignition Switch Ass'y (Stop / Start) Includes 49 - 52. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 278001533 | VTS Switch Includes 53 - 55. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 278001534 | Mode/Set Switch Includes 56 - 59. | ||
| 3 | 278000223 | Female Terminal | 3 |
