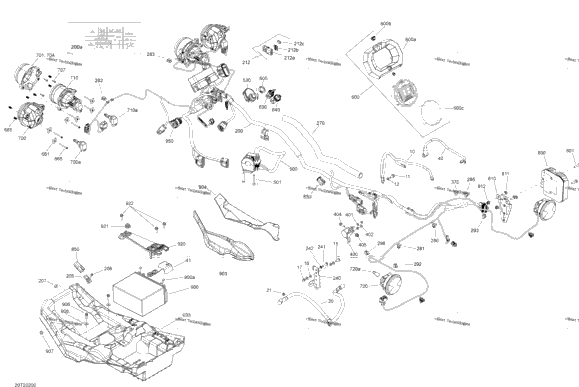

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710004382 | Ground Cable | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 4 | 224061121 | Flat Washer | 4 |
| 1 | 232361493 | Domed Nut M6 | 1 |
| 1 | 710004377 | Positive Cable | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004376 | Positive Cable M-650&P-XMR&C/U | 1 |
| 1 | 710006729 | Battery Cable Cap | 1 |
| 1 | 710006171 | Harness Includes 200 to 200a | 1 |
| 1 | 710006657 | Logo Fuse Relay | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 1 | 710000917 | Connector Ass'y Includes 212 to 212c | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 3 | 278000216 | Wire Seal | 3 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710004118 | Connector Bracket | 1 |
| 1 | 210262040 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 710003260 | Protective Tubing | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 207662054 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 710005070 | Multi-Function Handle | 1 |
| 2 | 205053588 | Socket Head Screw M5 X 35 | 2 |
| 1 | 515178225 | DESS Switch, RFID | 1 |
| 1 | 710005599 | Speedometer Ass'y Includes 600 to 600c | 1 |
| 1 | 710002092 | Trim Ring | 1 |
| 1 | 710001473 | Button | 1 |
| 1 | 415129320 | Lens | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 710005232 | Green Key RFID | 1 |
| 1 | 710004964 | Grey Key RFID | 1 |
| 12 | 572106600 | Handle | 12 |
| 12 | 250000718 | Hex. Screw K40 X 45 | 12 |
| 12 | 517168600 | Spring | 12 |
| 2 | 710006177 | Low Beam Includes 700 to 700a | 2 |
| 1 | 715900141 | Bulb 12V 55W | 1 |
| 1 | 710002291 | RH High Front Housing | 1 |
| 1 | 710002292 | LH High Front Housing | 1 |
| 6 | 250000723 | Phillips Screw K40 X 16 | 6 |
| 2 | 710002525 | High Beam Ass'y Includes 710 to 710a | 2 |
| 1 | 415129249 | Halogen Bulb | 1 |
| 2 | 710001645 | Tail Light Ass'y Includes 720 to 720a | 2 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 710005842 | Voltage Regulator | 1 |
| 2 | 210262550 | Hex. Flange Forming Screw M6 X 25 | 2 |
| 1 | 710001752 | Rectifier Support | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 710003006 | Housing | 1 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 1 | 710006532 | Heat Shield | 1 |
| 1 | 710006533 | Heat Shield | 1 |
| 1 | 710006561 | Battery Support | 1 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 710002404 | Fixation Plate | 1 |
| 1 | 705014429 | Stopper Rubber | 1 |
| 3 | 207662054 | Hex. Flange Screw M6 X 20 | 3 |
| 1 | 710001248 | DC Outlet | 1 |
