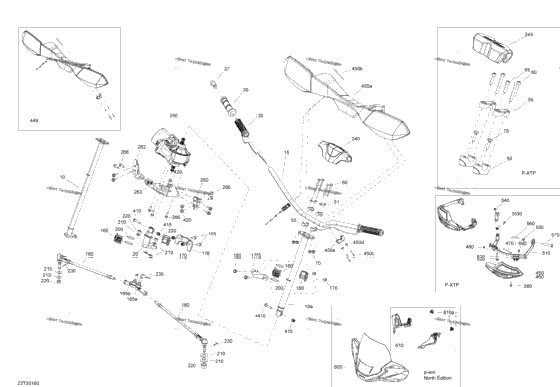

Список запчастей

№	Артикул	Название	Кол-во
1	709401008	Main Tube STD	1
1	709401750	Black, Upper Main Tube DPS_XT_North Edition_XTP	1
1	709401240	Black, Handle Bar XT	1
1	709401240	Black, Handle Bar North Edition	1
1	709401240	Black, Handle Bar STD	1
1	709401240	Black, Handle Bar DPS_XT_North Edition_XTP	1
1	709402292	Anodized Handlebar XTP	1
1	709401748	Pitman Arm DPS_XT_North Edition_XTP	1
2	709400493	Handle Grip XTP	2
2	709400493	Handle Grip XT	2
2	709400493	Handle Grip STD_DPS	2
2	710005038	Heated Hand Grip With Connector North Edition	2
2	709400449	End Piece STD_DPS	2
2	709400449	End Piece XT	2
2	709400449	End Piece North Edition	2
2	709400497	Steering Support XTP	2
4	709401799	Steering Support North Edition	4
4	709401799	Steering Support STD_DPS	4
4	709401799	Steering Support XT	4
2	709400509	Stiffner STD_DPS	2
2	709400509	Stiffner XT	2
2	709400509	Stiffner North Edition	2
2	709400496	Support XTP	2
2	205086060	Socket Head Screw M8 X 60 XTP	2
4	207086046	Hex. Screw M8 X 60 DPS	4
4	207086046	Hex. Screw M8 X 60 North Edition	4
4	207086046	Hex. Screw M8 X 60 STD	4
4	207086046	Hex. Screw M8 X 60 XT	4
2	205083060	Socket Screw M8 X 30 XTP	2
4	233281416	Hex. Elastic Flange Nut M8	4
2	207183060	Hex. Screw M8 X 30 XTP	2
2	207682044	Hex. Flange Screw M8 X 20	2
2	207682544	Hex. Flange Screw M8 X 25	2
4	709400783	Spherical Half Bushing	4
4	233281414	Hex. Flange Elastic Nut M8	4
1	709400827	Upper Column Attachment	1
1	709401428	Column Attachment	1
2	703501039	Tie-Rod Ass`y Includes 180 to 180a	2
1	709402303	LH Ball Joint	1
1	709402302	RH Ball Joint	1
2	703501039	Tie-Rod Ass`y Includes 180 to 180b	2
2	709402302	RH Ball Joint	2
4	293300068	O-Ring	4
8	250200086	Flat Washer	8
4	250100099	Nut M12	4
4	211400013	Cotter Pin	4
1	709400939	Cover STD	1
1	709400939	Cover North Edition	1
1	709400939	Cover DPS	1
1	709402328	Steering Cover XTP	1
1	709402230	Power Steering DPS_XT_North Edition_XTP	1
1	709402184	LH Power Steering Bracket DPS_XT_North Edition_XTP	1
1	709402185	RH Bracket DPS_XT_North Edition_XTP	1
1	709401743	Power Steering Support DPS_XT_North Edition_XTP	1
11	207582044	Hex. Flange Screw M8 X 20, Scotch Grip DPS_XT_North Edition_XTP	11
2	250000986	Hex. Flange Screw M8 X 35 DPS_XT_North Edition_XTP	2
2	233281416	Hex. Elastic Flange Nut M8 DPS_XT_North Edition_XTP	2
4	233081416	Hex. Flange Nut M8 DPS_XT_North Edition_XTP	4
1	703100352	Handle Guard Ass'y, XT XT	1
1	709400822	Handle Bar Protector XT	1
1	704902966	DPS Decal XT	1
4	241142560	Hex. Flange Screw K40 X 25 XT	4
4	211200035	Flat Washer XT	4
2	517303264	U-Clamp XT	2
1	709401303	Deep Black RH Air Deflector XTP	1
1	709401304	Deep Black LH Air Deflector XTP	1
2	205444056	Socket Head Screw M4 X 40 XTP	2
2	232541414	Elastic Stop Nut M4 XTP	2
2	715001378	Air Deflector Support Kit XTP	2
1	715001378	Air Deflector Support Kit XTP	1
2	207662044	Hex. Flange Screw M6 X 20 XTP	2
2	250000717	Torx Head Screw M6 X 16 XTP	2
4	232561600	Hex. Elastic Stop Nut M6 XTP	4
2	709400161	Small Bracket XTP	2
2	709400162	Large Bracket XTP	2
2	205384034	Socket Head Screw XTP	2
2	250000145	Torx Screw M5 X 14 XTP	2
2	232551600	Hex. Elastic Nut M5 XTP	2
	705014651	Windshield 470 MM North Edition
1	715005479	Hardware Kit (Service) North Edition	1
2	705012844	Knob North Edition	2
