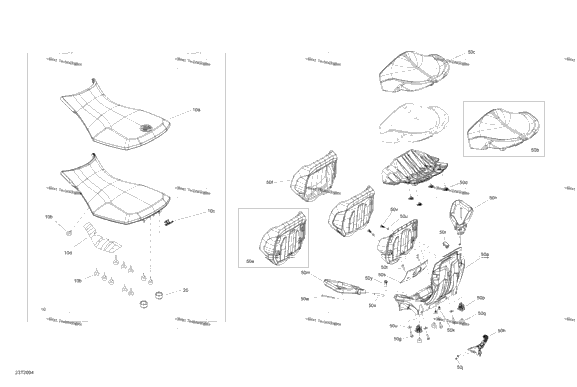

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708002491 | Seat Ass'y Includes 10 to 10d | 1 |
| 1 | 708000724 | Black, Seat Cover | 1 |
| 11 | 708000759 | Rubber Stopper | 11 |
| 1 | 708000909 | Latch | 1 |
| 705005761 | HEAT SHIELD | ||
| 2 | 708003053 | Stopper Rubber | 2 |
| 1 | 708002574 | Seat Base XT_XTP | 1 |
| 1 | 708002086 | Seat XT_XTP | 1 |
| 1 | 708001581 | Passenger Seat Cover XT_XTP | 1 |
| 4 | 250000957 | Extruded Panel Nut M6 XT_XTP | 4 |
| 1 | 708002081 | Backrest XT_XTP | 1 |
| 1 | 708001847 | Back Rest Cover XT_XTP | 1 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip XT_XTP | 4 |
| 1 | 708001532 | Latch XT_XTP | 1 |
| 2 | 234051410 | Flat Washer M5 XT_XTP | 2 |
| 2 | 293150108 | Pop Rivet 3/16” XT_XTP | 2 |
| 1 | 703500806 | LH Passenger Seat Handle Kit XT_XTP | 1 |
| 1 | 703500807 | RH Passenger Seat Handle Kit XT_XTP | 1 |
| 2 | 708001483 | Seat Support XT_XTP | 2 |
| 3 | 708000758 | Rubber Stopper XT_XTP | 3 |
| 1 | 708001511 | Insert XT_XTP | 1 |
| 1 | 708001512 | Cap XT_XTP | 1 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 XT_XTP | 2 |
| 6 | 224060201 | Flat Washer XT_XTP | 6 |
| 2 | 250000546 | Oval Head Torx Screw K60 X 16 XT_XTP | 2 |
| 2 | 250000806 | Torx Truss M8 X 90 XT_XTP | 2 |
| 2 | 705009248 | Sleeve XT_XTP | 2 |
| 1 | 710003910 | Pilot Lamp Cap XT_XTP | 1 |
| 1 | 708002574 | Seat Base LTD | 1 |
| 1 | 708002890 | Passenger Seat Cover LTD | 1 |
| 4 | 250000957 | Extruded Panel Nut M6 LTD | 4 |
| 1 | 708002891 | Backrest Cover LTD | 1 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip LTD | 4 |
| 1 | 708001532 | Latch LTD | 1 |
| 2 | 234051410 | Flat Washer M5 LTD | 2 |
| 2 | 293150108 | Pop Rivet 3/16” LTD | 2 |
| 1 | 703500806 | LH Passenger Seat Handle Kit LTD | 1 |
| 1 | 703500807 | RH Passenger Seat Handle Kit LTD | 1 |
| 2 | 708001483 | Seat Support LTD | 2 |
| 3 | 708000758 | Rubber Stopper LTD | 3 |
| 1 | 708001511 | Insert LTD | 1 |
| 1 | 708001512 | Cap LTD | 1 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 LTD | 2 |
| 6 | 224060201 | Flat Washer LTD | 6 |
| 2 | 250000546 | Oval Head Torx Screw K60 X 16 LTD | 2 |
| 2 | 250000806 | Torx Truss M8 X 90 LTD | 2 |
| 2 | 705009248 | Sleeve LTD | 2 |
| 1 | 710003910 | Pilot Lamp Cap LTD | 1 |
