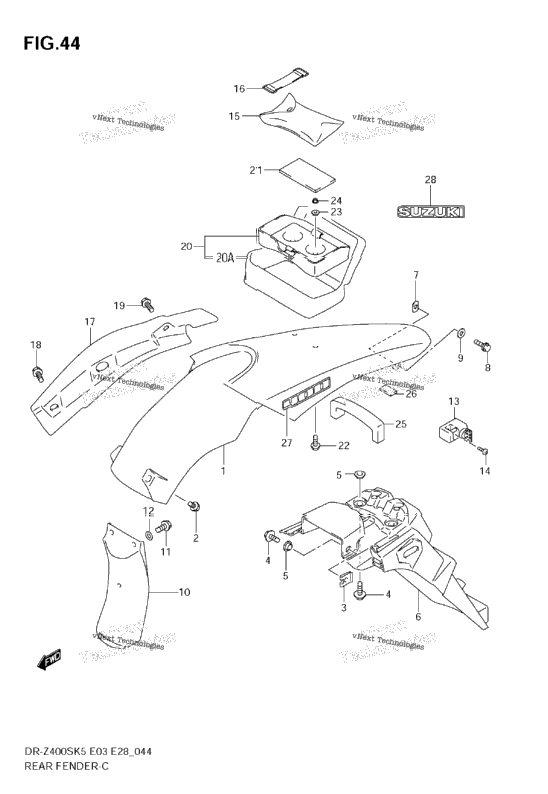

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 63113-29F41-YU1 | FENDER, REAR (YELLOW) MODEL K5/K6 FOR YU1 | 1 |
| 63113-29F41-YJ4 | FENDER, REAR (BLUE) MODEL K5/K6 FOR N9J | ||
| 1 | 63113-29FA0-YU1 | FENDER RR (YELLOW) MODEL K7 FOR YU1 | 1 |
| 1 | 63113-29FA0-YLW | FENDER, REAR (BLUE) MODEL K7 FOR N9J MODEL K8 FOR YKY | 1 |
| 1 | 63113-29FA0-019 | FENDER,REAR (BLACK) MODEL K8 FOR 019 | 1 |
| 1 | 63113-29FA0-30H | FENDER,REAR (WHITE) MODEL K9 | 1 |
| 1 | 63113-29FA0-019 | FENDER,REAR (BLACK) MODEL K9 | 1 |
| 2 | 09113-06001 | BOLT, FRONT | 2 |
| 2 | 63312-13E01 | PLATE,RR FENDER | 2 |
| 4 | 09116-06115 | BOLT | 4 |
| 4 | 09169-06073 | WASHER (6.1X17.0X4.8) | 4 |
| 1 | 63311-29F30 | EXTENSION,REAR FENDER | 1 |
| 2 | 94484-24F00 | NUT,COWL | 2 |
| 2 | 01550-0512B | BOLT | 2 |
| 2 | 09169-05024 | WASHER | 2 |
| 1 | 63411-29F00 | MUD GUARD,RR FENDER,FR | 1 |
| 2 | 01547-0616B | BOLT | 2 |
| 2 | 09169-06045 | .WASHER | 2 |
| 1 | 95700-44820 | LOCK SET, HELMET MODEL K5/K6/K7 | 1 |
| 1 | 95700-41821 | LOCK SET,HELMET MODEL K8/K9 | 1 |
| 1 | 09139-06089 | SCREW | 1 |
| 1 | 09800-21042 | TOOL ASSY | 1 |
| 1 | 09462-00008 | BAND, TOOL | 1 |
| 1 | 63114-29F00 | MUD GUARD,REAR FENDER RH | 1 |
| 1 | 09111-06081 | BOLT (6X18) | 1 |
| 1 | 63161-43E00 | BOLT, UPPER | 1 |
| 1 | 94900-29FA0 | BAG, SEAT TAIL MODEL K5 | 1 |
| 1 | 94900-29FB1 | BAG ASSY,SEAT TAIL MODEL K6/K7/K8/K9; Includes Item(s) 20A | 1 |
| 1 | 94910-29FB0 | .BAG,SEAT TAIL MODEL K6/K7/K8/K9 | 1 |
| 1 | 94915-44E00 | CUSHION,REAR BAG | 1 |
| 2 | 01550-0620B | BOLT | 2 |
| 2 | 09169-06063 | WASHER | 2 |
| 2 | 09159-06078 | NUT | 2 |
| 1 | 47161-29B00 | CUSHION, FRONT | 1 |
| 1 | 33651-37000 | CUSHION, REAR | 1 |
| 68171-29F10-GY8 | EMBLEM, "400" MODEL K5 FOR YU1 | ||
| 68171-29F10-CFL | EMBLEM, "400" MODEL K6 FOR YU1 | ||
| 68171-29F10-HU8 | EMBLEM, "400" MODEL K5/K6 FOR N9J | ||
| 1 | 68721-13A00-GY8 | EMBLEM, "SUZUKI" MODEL K5 FOR YU1 | 1 |
| 68721-13A00-CFL | EMBLEM, "SUZUKI" MODEL K6 FOR YU1 | ||
| 68721-13A00-HU8 | EMBLEM, "SUZUKI" MODEL K5/K6 FOR N9J | ||
| 1 | 68721-13A00-GY8 | EMBLEM, "SUZUKI" MODEL K7 FOR YU1 | 1 |
| 68721-13A00-DVJ | EMBLEM, "SUZUKI" MODEL K7 FOR N9J | ||
| 1 | 68721-13A00-CT5 | EMBLEM,"SUZUKI" (SILVER/BLACK MODEL K8 FOR 019 | 1 |
| 68721-13A00-ELC | EMBLEM, "SUZUKI" MODEL K8 FOR YKY | ||
| 1 | 68721-13A00-FH7 | EMBLEM, "SUZUKI" MODEL K9 FOR 30H | 1 |
| 1 | 68721-13A00-CT5 | EMBLEM,"SUZUKI" (SILVER/BLACK MODEL K9 FOR 019 | 1 |
