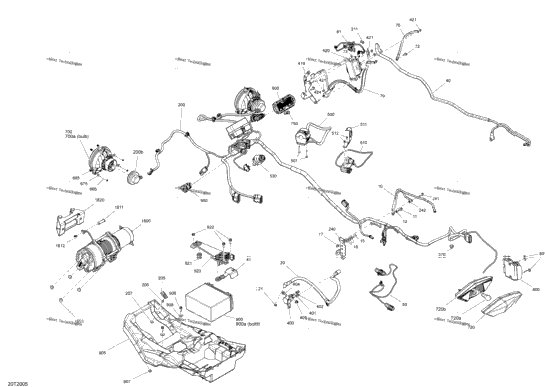

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 710004382 | Ground Cable | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 250000717 | Torx Head Screw M6 X 16 | 1 |
| 4 | 224061121 | Flat Washer | 4 |
| 1 | 232361493 | Domed Nut M6 | 1 |
| 1 | 710004377 | Positive Cable | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 710004375 | Connector Ass'y Package XT | 1 |
| 1 | 710004376 | Positive Cable Packages STD & DPS | 1 |
| 1 | 710006729 | Battery Cable Cap | 1 |
| 1 | 710005819 | Extension Cable 02 Sensor | 1 |
| 1 | 710005163 | Negative Cable Package XT | 1 |
| 1 | 210261640 | Hex. Flange Screw M6 X 16 Package XT | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm Package XT | 1 |
| 1 | 710005164 | Winch Cable Package XT | 1 |
| 1 | 710005246 | Winch Cable Package XT | 1 |
| 1 | 710006172 | Electric Harness Package DPS, XT | 1 |
| 1 | 710006173 | Harness Ass'y Package STD | 1 |
| 1 | 710003976 | Fuse Shematic Decal | 1 |
| 2 | 710004020 | Headlamp Protector Cap | 2 |
| 1 | 270000141 | Clip | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 1 | 710000992 | Clip Package XT | 1 |
| 1 | 710004118 | Connector Bracket | 1 |
| 1 | 210262040 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 1 | 207662054 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 710004935 | Module Support Package XT | 1 |
| 1 | 710001000 | Winch Solenoid Package XT | 1 |
| 9 | 232561414 | Elastic Stop Nut M6 Package XT | 9 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip Package XT | 1 |
| 1 | 710005072 | Multi-Function Handle | 1 |
| 2 | 205053588 | Socket Head Screw M5 X 35 | 2 |
| 1 | 710005241 | Winch Switch Package XT | 1 |
| 1 | 710004670 | Black Support Package XT | 1 |
| 2 | 250000153 | Hex. Cap Screw 6-32 X 1/4" Package XT | 2 |
| 1 | 710005153 | Ignition Switch With Keys | 1 |
| 1 | 710005553 | Speedometer | 1 |
| 6 | 250000718 | Hex. Screw K40 X 45 | 6 |
| 6 | 517225900 | Flat Washer | 6 |
| 6 | 517168600 | Spring | 6 |
| 2 | 710003900 | Low Beam | 2 |
| 1 | 710000871 | Bulb, 12V 35/35W | 1 |
| 1 | 710001203 | Tail Light Housing Ass'y | 1 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 710003910 | Pilot Lamp Cap | 1 |
| 1 | 710001103 | Voltage Regulator Package STD | 1 |
| 1 | 710005569 | Voltage Regulator Package DPS & XT | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes Includes 900 to 900a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 1 | 710006561 | Battery Support | 1 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 710002404 | Fixation Plate | 1 |
| 1 | 705014429 | Stopper Rubber | 1 |
| 3 | 207662054 | Hex. Flange Screw M6 X 20 | 3 |
| 1 | 710001248 | DC Outlet | 1 |
| 705008546 | WINCH Package XT | ||
| 4 | 250000746 | Torx Truss Screw M8 X 16 Package XT | 4 |
| 1 | 250400021 | Clevis Pin Package XT | 1 |
| 1 | 250400022 | Cotter Pin Package XT | 1 |
| 1 | 715000011 | Winch Roller Package XT | 1 |
